Zoom F1 Digital Recorder Clip Battery Door *Updated*
por Zak Holman en MyMiniFactory

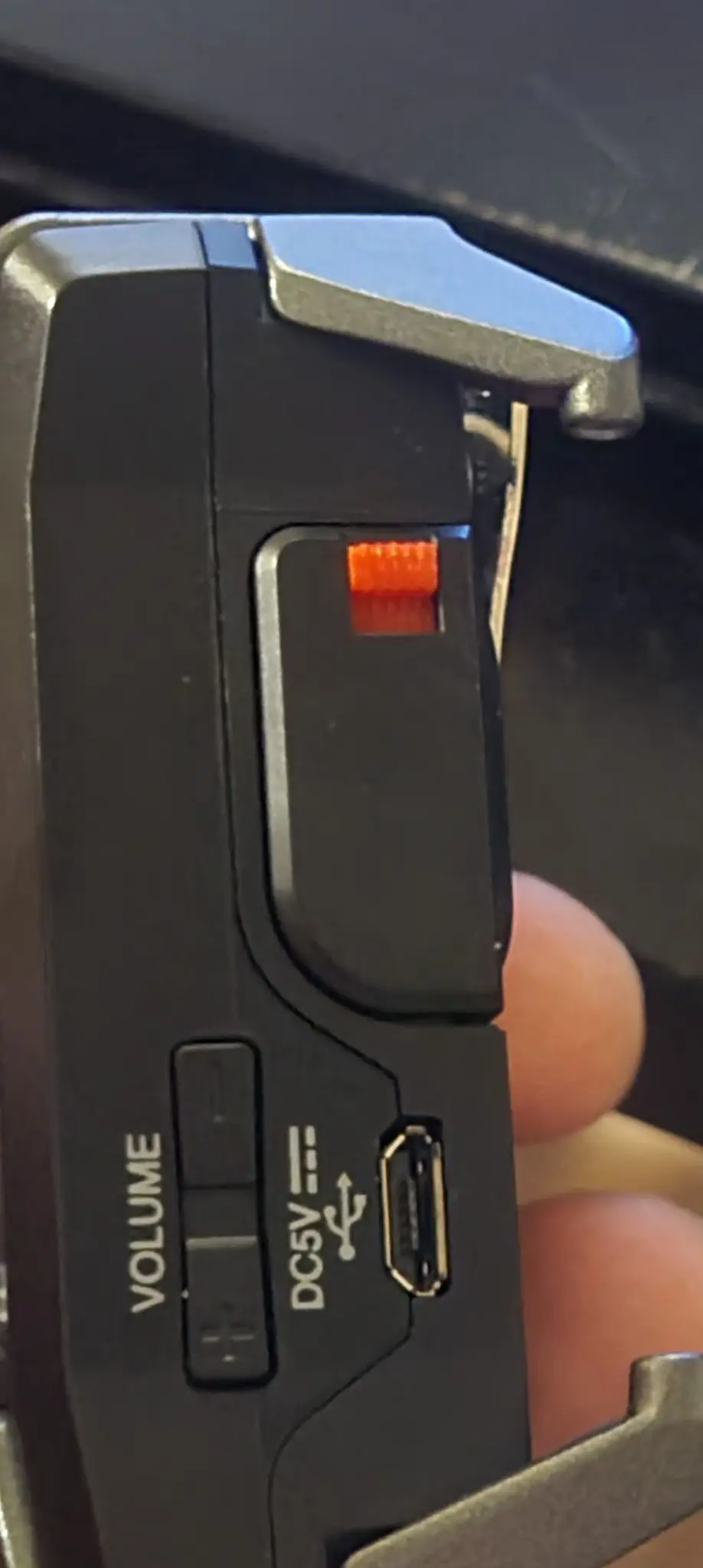

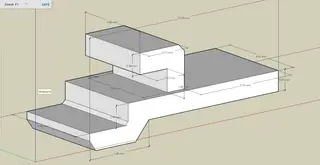

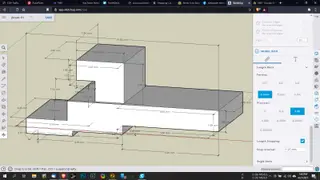

Took the time to design and print a replacement retention slider clip for the Zoom F1 digital recorder. Figured I'd share it here with anyone who needs one. Used the specs for the original part and reinforced it as best as possible with the space available. Flip on it's side and no support material
Licencia
Solo uso personalMyMiniFactory Exclusive - Credit - Noremix - Noncommercial
Licencia de MyMiniFactory: puedes imprimirlo y remezclarlo dando crédito, sin fines comerciales.
Al descargar aceptas respetar la licencia y dar crédito a Zak Holman.
Archivos (2)
- Categoría
- Educación
- Formatos
- GCODE, STL
- Descargas
- 1,986
- Publicado
Sobre este modelo

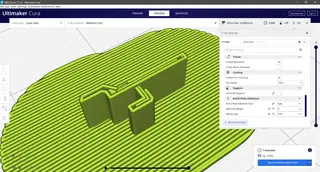

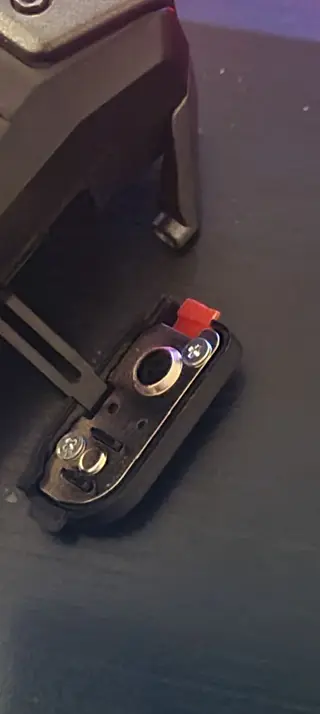

Took the time to design and print a replacement retention slider clip for the Zoom F1 digital recorder. Figured I'd share it here with anyone who needs one. Used the specs for the original part and reinforced it as best as possible with the space available. Flip on it's side and no support material is required. To install, remove two small philips screws from inside of battery door. Remove plastic retention tab. Make sure to plane the spring contact surface with a razor blade to make flat. Install clip and re-assemble.
Updated design as of 6/10/21. Improved angles and size. V_8.1
