Zip tie mount [20 mm]
por Funky Mind en Thingiverse
This is for reference, v2 is here Basically a remix, but I completely redesigned the original object for being toolless and simplify the printing process. It doesn't require support, plus is easy to place and remove by rotating it at 90°. A little warning though, the T hook can be fragilized if you.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Funky Mind.
Archivos (4)
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 12,405
- Publicado
Sobre este modelo

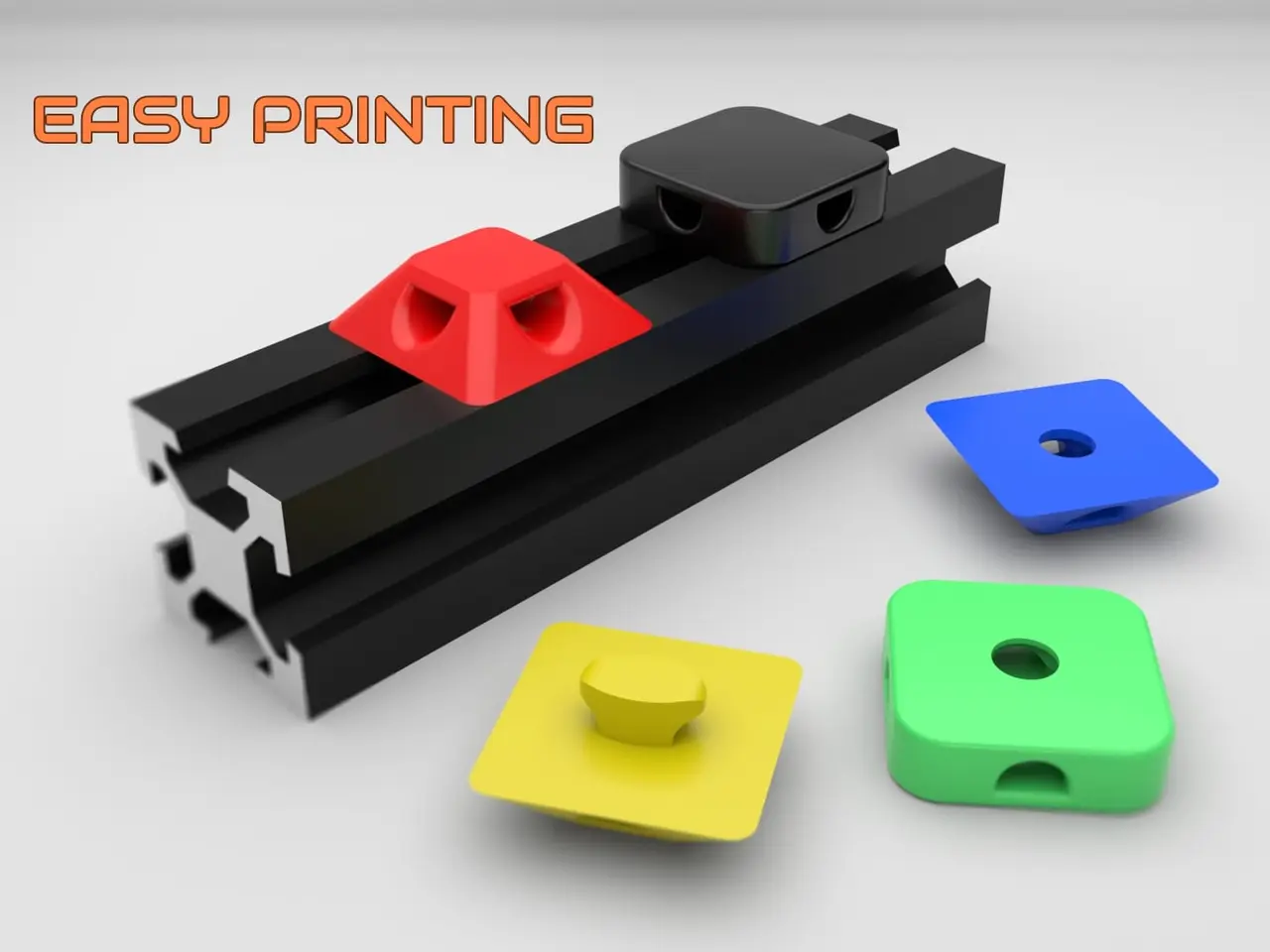

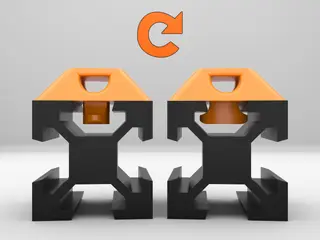

This is for reference, v2 is here Basically a remix, but I completely redesigned the original object for being toolless and simplify the printing process. It doesn't require support, plus is easy to place and remove by rotating it at 90°. A little warning though, the T hook can be fragilized if you rotate it too much times. If it's too hard to put in place (making it brake, or vice versa), scale the object down or up by increments of 0.01%. It should fit well with PETG (as the red one in the photo). Designed for 20XX extrusion profiles. Ø 0.4 nozzle recommended settings :Max layer height : 0.15 Wall lines : 3 (1.2 mm) Infill : 100%
Descripción original del autor, publicada en Thingiverse.
