A test print to evaluate ABS/ASA shrinkage and check hole sizes before actual printing.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a DutchDude.
Archivos (1)
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 2,598
- Publicado
Sobre este modelo

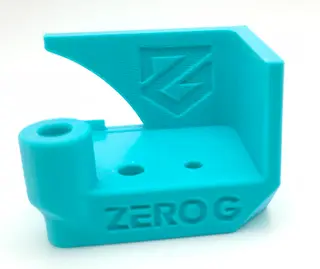

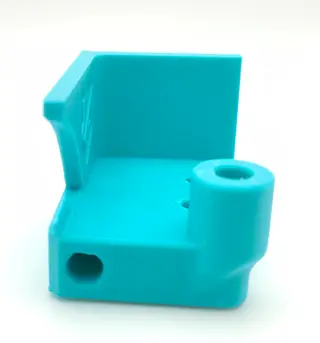

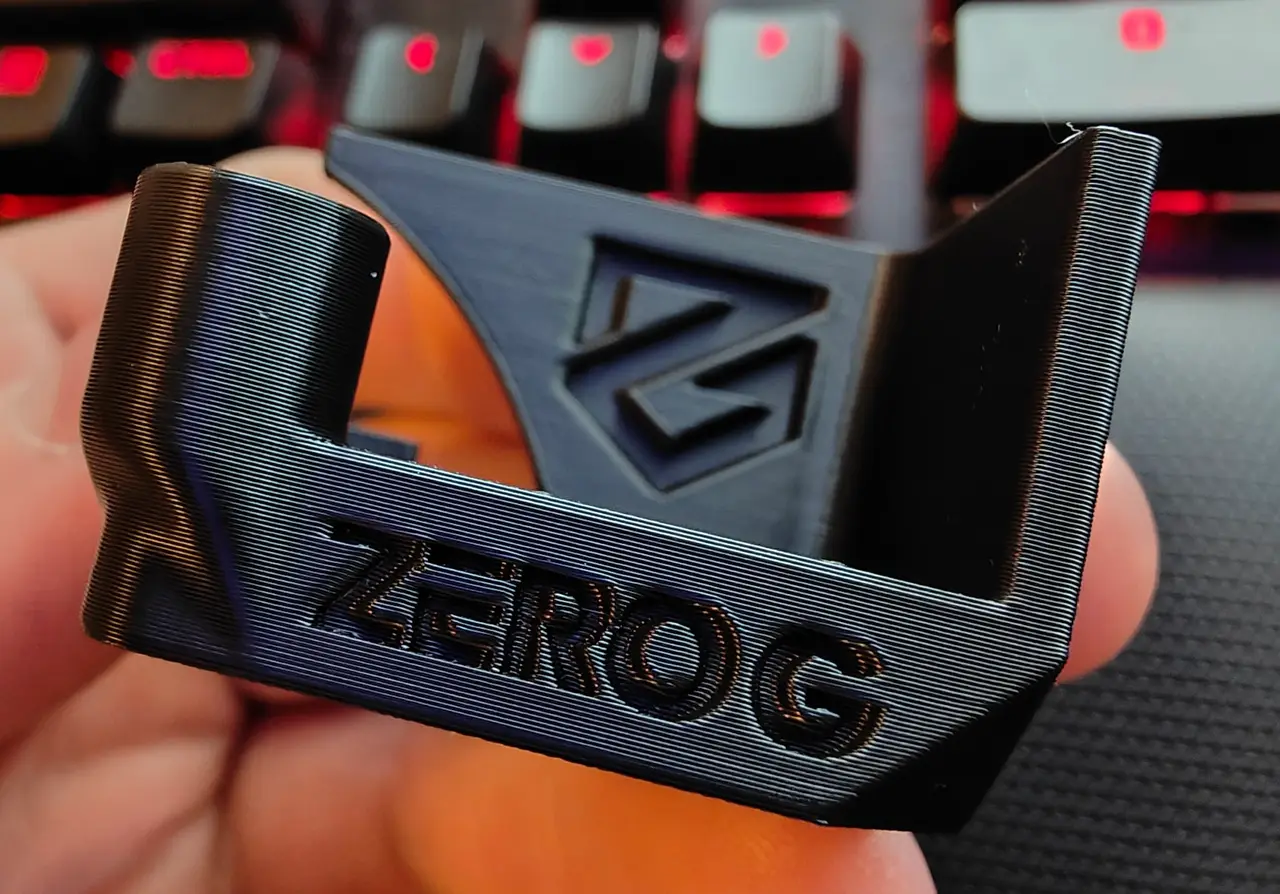

We've created a test print to calibrate your settings printing in ABS/ASA.

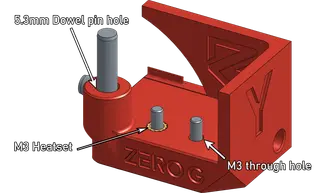

The test print contains - 5mm Dowel pin hole top to bottom - This is a 5.3mm hole to compensate for shrinkage
- 5mm Dowel pin hole side to side- This is a 5.3mm hole to compensate for shrinkage
- M3 Hole including a heatset insert (M3 X D5.0 X L4.0) - M3 through hole- This is a 3.3mm hole to compensate for shrinkage

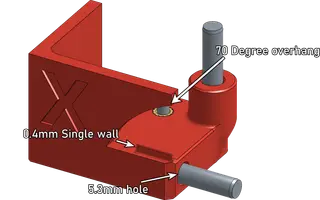

- 0.4mm Single wall to verify .4 print settings - Overhang / bridge test in the bottom - Overhang test up to 70° - X and Y lettering to check for ringing. -
To test this print you need to use the following settings - First layer 0.25mm - Other layers 0.2mm - Wall thickness 0.4mm - Walls - Up to you - Top / Bottom - Up to you - Infill - Up to you
Recommended filament - ABS
