Sobre este modelo

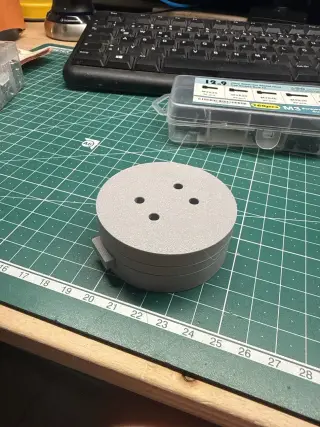

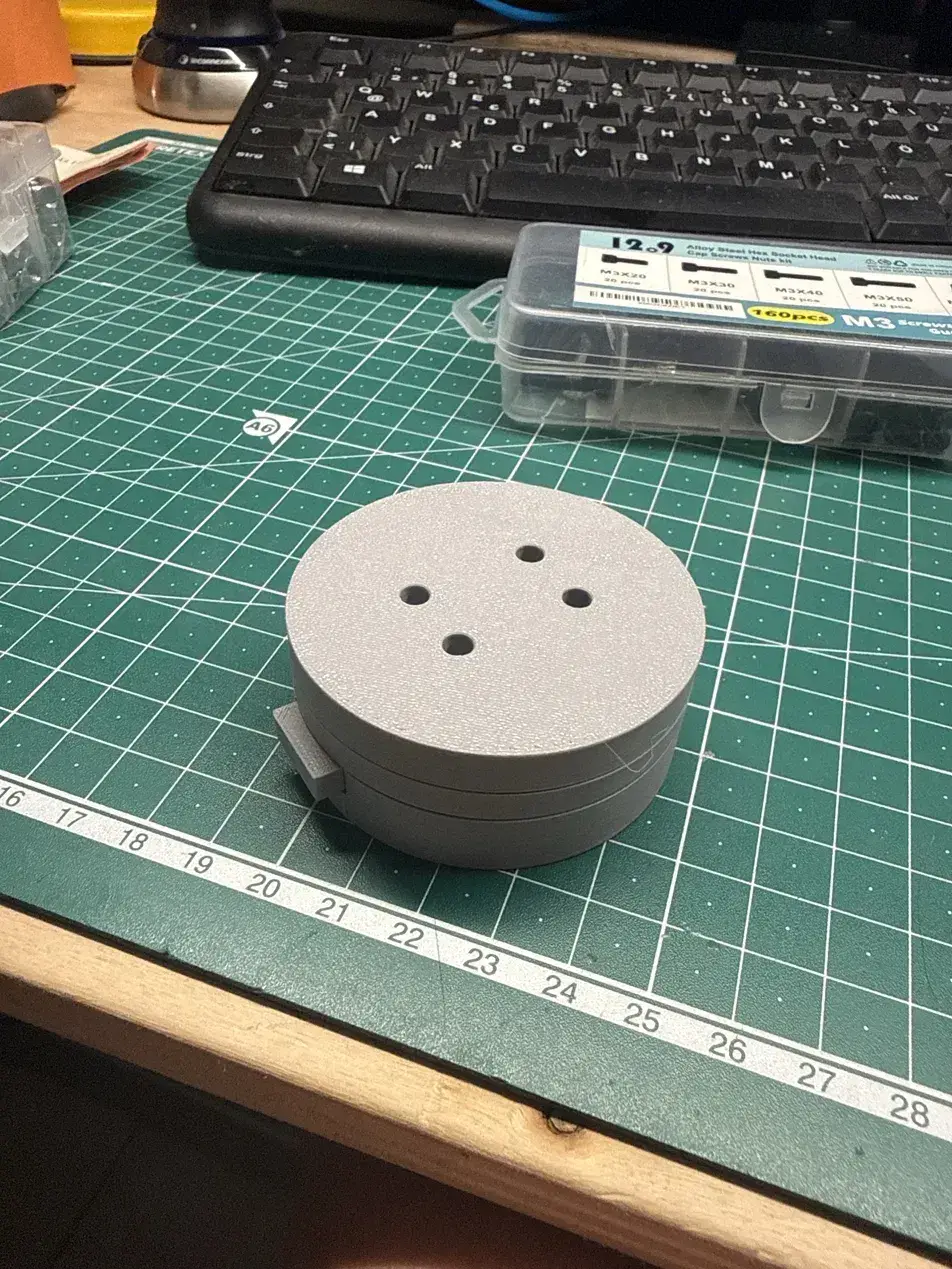

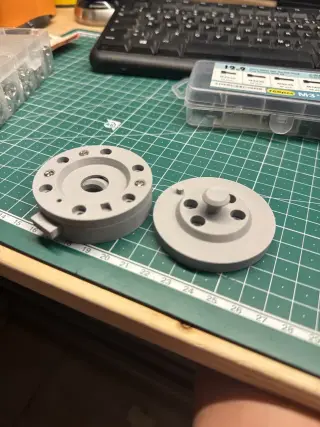

A printed zero-point quick-change system for the Faze4 6-axis robot arm (J6 flange, 6x M3 on Ø46). Swap grippers in seconds. How it works - Push the tool straight in until it clicks. - A spring-loaded slider with a 20° wedge presses on the shoulder of the pull stud and pulls the tool down into a 30° centring cone. - One anti-rotation pin sets the angle. - Press the button to release.
The tool plate fits an SMC MHZ2-16D pneumatic gripper directly (4x M4). Print: PETG, 100 % infill, 0.12–0.16 mm. All STLs are already in print orientation. Support only under the stud head shoulder. Hardware: 6x M3x16 DIN 912, 3x M3x14 DIN 7991 + nuts, 4x M4x12 DIN 912, 1x M3x16 set screw, 1x spring OD 6 x 0.8 x 25 mm. STEP files included for remixing.
