Yet Another Frame Babble Tracker Mount
por Taj Tiger en Printables
There are many [babble tracker mounts] like it, but this one is mine.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Taj Tiger.
Archivos (1)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

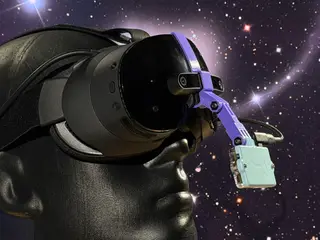

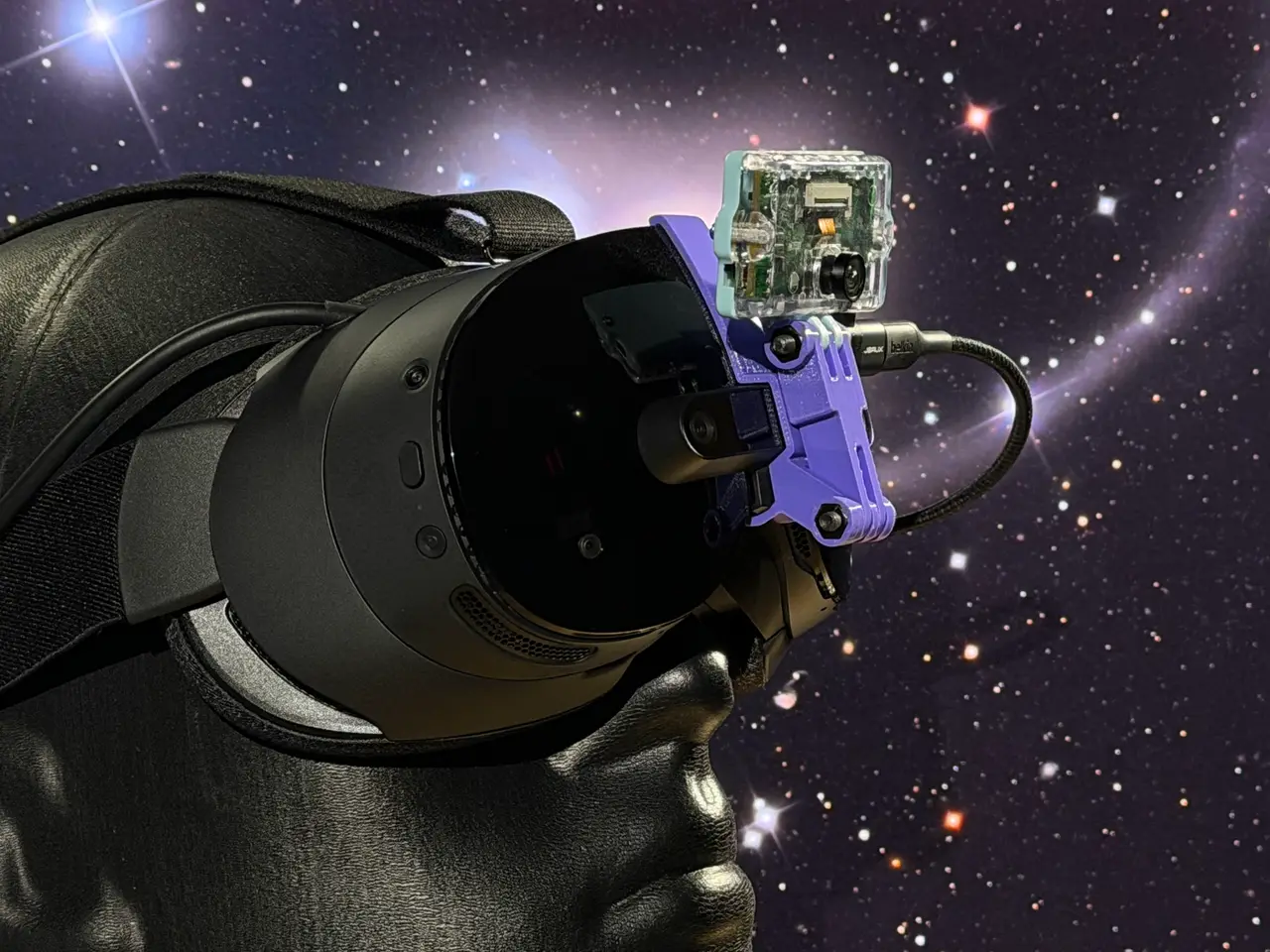

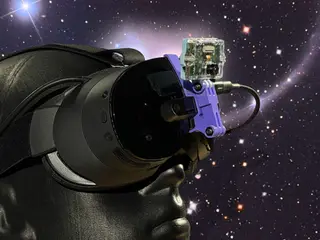

I know there's many of these already, but hey, variety! Using a modified version of this https://www.printables.com/model/1879697-mount-base-for-steam-frame-arcturus-vision-camera , I created a tracker mount that folds flat against the Arcturus camera portion of the mount when not in use. This mount is very secure thanks to the teeth poking into the vent holes. Uses M4-20mm bolts. The nuts are ~6.9mm wide (nice) and are press-fit into the sockets. I used PETG, which has just enough flex to get around the camera module after hooking the mount into the vent holes at the top. To remove, gently bend from the bottom with the arm extended. Printed in PETG as oriented with tree supports. Have a hobby knife handy to clean them up. Separate by parts in the slicer if you find that the two parts fuse, however I didn't have an issue.
Descripción original del autor, publicada en Printables.
