xTool M2 to Desktop Air Purifier– 90° Adapter

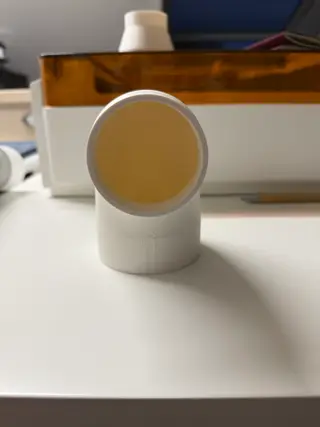

A compact, one-piece 90-degree exhaust adapter designed specifically for the xTool M2 and xTool Desktop Air Purifier. Tired of having your exhaust hose sticking straight out from the back of your xTool M2? This custom-designed 90° adapter redirects the exhaust hose sideways, making it easier to position your laser machine in a workspace where space is limited. Key Features

- 90° airflow direction – Routes the exhaust hose sideways instead of straight out.

- Compact design – Helps reduce the space needed behind your xTool M2.

- One-piece construction – No assembly, screws or glue required.

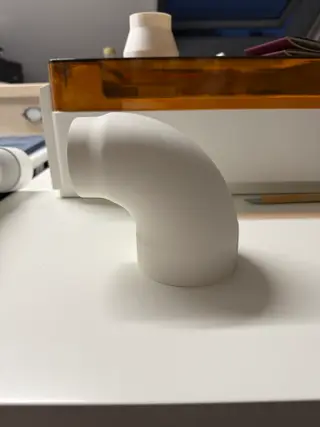

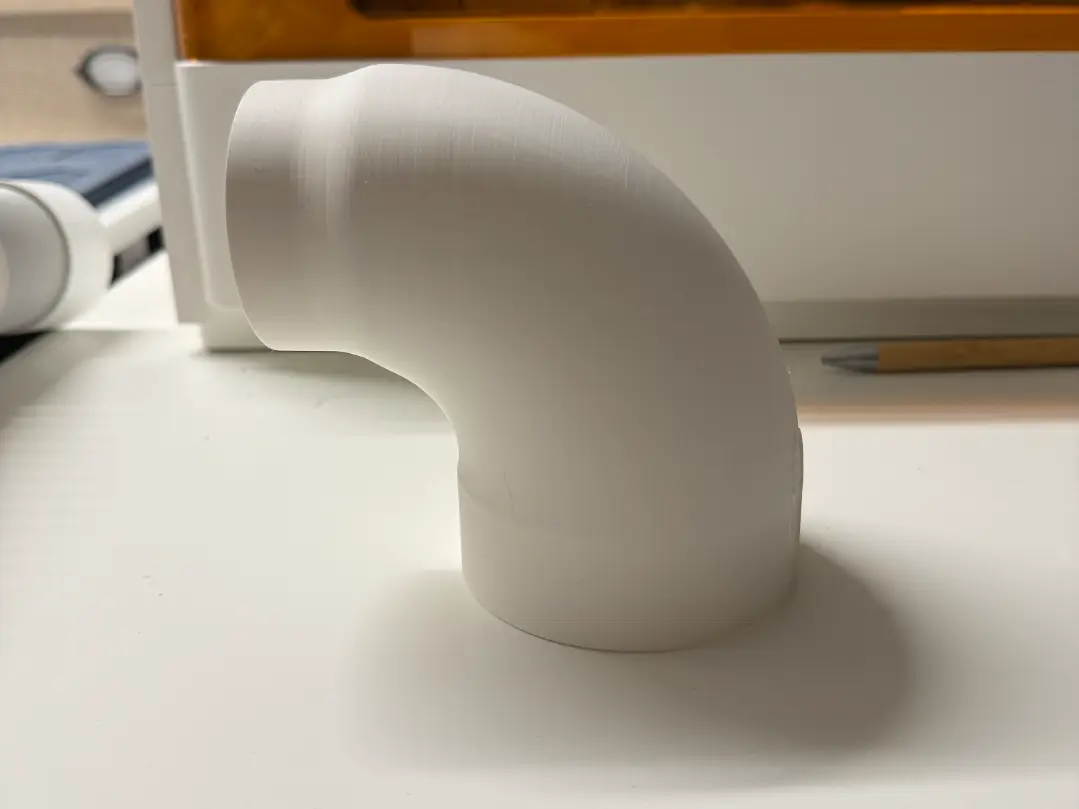

- Smooth curved airflow path – Designed with a gradual bend rather than a sharp corner.

- Custom-fit connections – Designed for the xTool M2 exhaust outlet and Desktop Air Purifier hose.

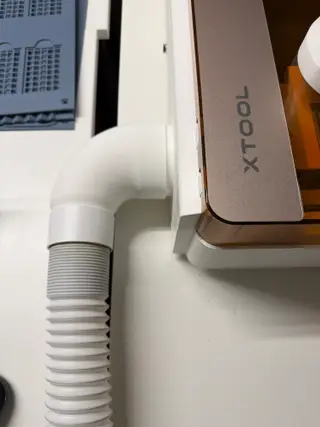

- Tested in real use – Successfully printed, installed and tested on my own xTool M2 setup.

Printing Recommendations Tested using a Bambu Lab H2D with PLA. SettingValue Layer height0.20 mm Nozzle0.4 mm SupportsEnabled Support typeTree (Auto) Support styleOrganic Support threshold angle30° Build plate onlyEnabled Support critical regions onlyDisabled Top Z distance0.20 mm Support/object XY distance0.35 mm Top interface layers4 Top interface spacing0.25 mm

Important printing note: Due to the curved shape, supports are required. The underside may show some roughness where the support structures attach. This is primarily cosmetic and did not affect the functionality of my printed adapter. Compatibility Designed and tested for:

- xTool M2 laser machine

- xTool Desktop Air Purifier hose connection

Please verify the dimensions of your own equipment before printing. Final Thoughts This adapter was created to solve a simple workspace problem: getting the exhaust hose out of the way without using multiple connectors or awkward hose bends.

After several design iterations and test prints, the final version fits correctly and works exactly as intended. I hope it helps other xTool M2 owners create a cleaner, more practical workspace!

If you find this model useful, a boost, like or photo of your make is always appreciated!
