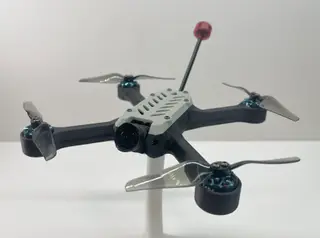

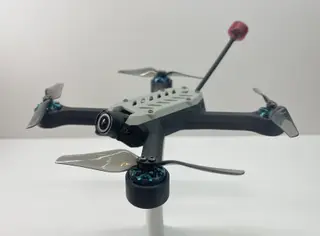

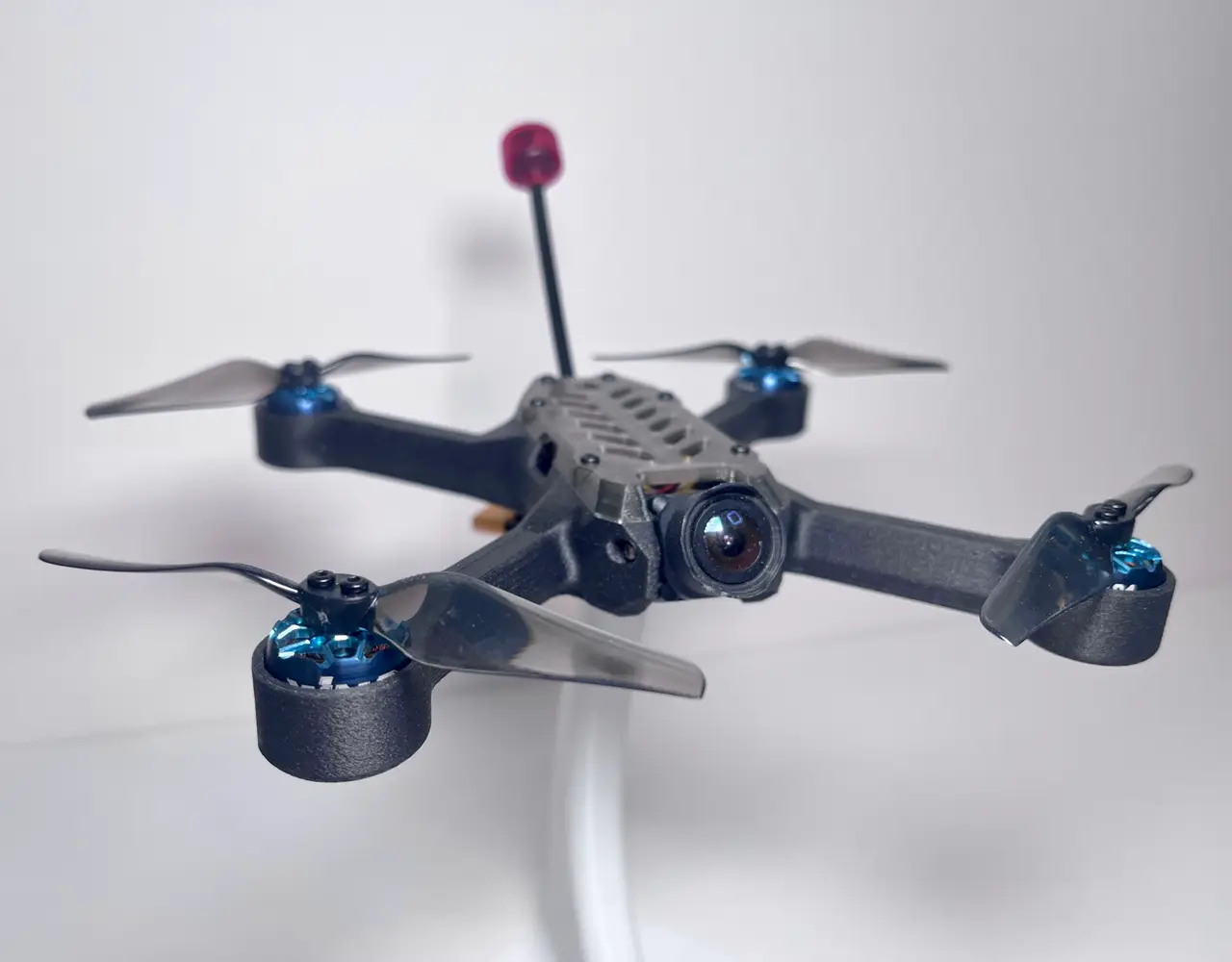

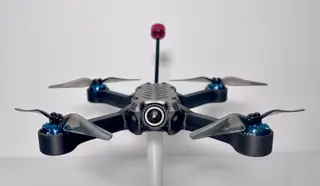

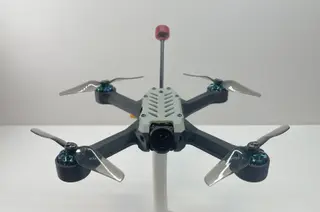

Wraith FPV Drone
por ProgrammaDan en Printables
A fully 3D printed 4" drone that stands out in one way and one way only: s e x i n e s s.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a ProgrammaDan.
Archivos (3)
- Categoría
- Varios
- Formatos
- STL, STEP
- Descargas
- 3,640
- Publicado
Sobre este modelo
The Wraith FPV Drone This is a 4/3.5 inch drone frame. Mine is printed using carbon fiber PA6 nylon for the body and ABS for the top. I'll list out the specific electronic and mechanical hardware that I used below. This list will also contain the general part specs that will work with this build, but I'll also leave the names of the exact parts I'm using, in case you just want something that's guaranteed to work. The Electronics: - 1x 20x20mm flight controller ESC stack - What I used: SpeedyBee Mini F405
- 1x ELRS receiver - What I used: Happymodel EP1
- 4x 14xx brushless motor - Higher KV motor if you want to fly on 3-4s. Lower KV motor if you want to run 6s
- What I used: iFlight 1404 XING 4600KV
- 1x Analog VTX - Designed to mount one specific VTX, the Zeus Nano
- Other small VTXs, like the TBS Unify Pro32 Nano can fit
- What I used: Zeus Nano VTX
- 1x Analog FPV camera - Design fits 19mm width camera
- What I used: RunCam Phoenix 2 SE
- 1x VTX antenna - antenna stem thickness of 4mm
- UFL/IPEX antenna connector type
- What I used: Rush Cherry 155mm UFL antenna
- 1x LiPo battery - Select voltage based on motor KV rating
- Look for capacity in range of 600-900 mAh
- What I used: CODDAR 850mAh 4S 15.2V HV
- 1x ELRS Radio controller - What I used: Radiomaster Pocket
- A cheaper alternative is the Radiomaster T8L
The Hardware: - 4x 4" / 3.5" propeller - I recommend getting replacement extras though
- What I used: iFlight 4030 propeller
- 4x M2x20 screw + M2 nut - These are for the FC / ESC stack, and usually come included
- 6x M2x10 screw - These are for attaching the top plate
- 24x M2x8 screw - 16 of these are for attaching the motors
- 8 are for fastening the propellers
- 4x M2x5 screw - 2 are for the camera
- 2 are for the Zeus Nano VTX
- 6x M2x4x3.2 insert nut - These are for attaching the top plate
- 200mm velcro strap - For strapping on the battery
Filament Selection: In case you work at NASA CF PEEK
Excellent CF or GF nylon, PPA, PC, PP
Good, but try not to crash too hard PETG, ABS, ASA
