Worm Gear Tripod
por Morris Lan en MyMiniFactory

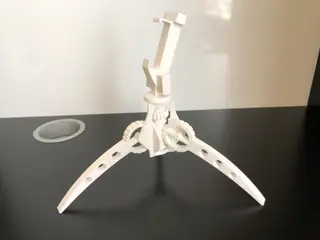

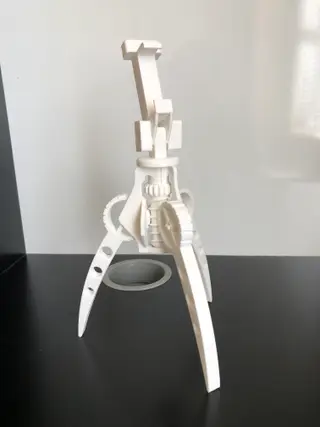

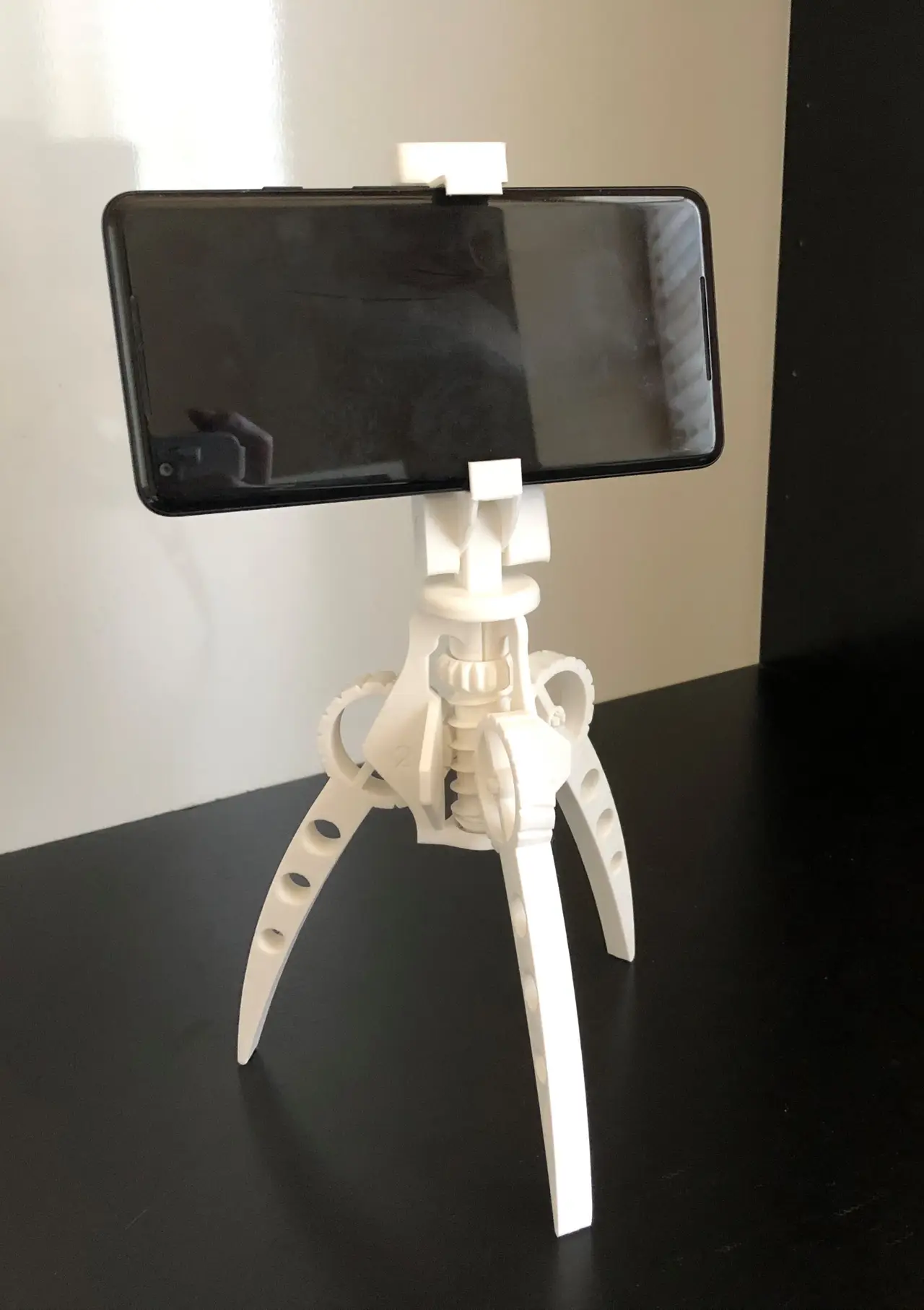

This is a tripod utilizing the worm gear mechanism to move up and down. It has a phone mount inspired by the Universal tripod phone mount designed by neyfrota. If you want to mount something else like a camera, feel free to design your own adapter to fit whatever it is that you want to mount.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Morris Lan.
Archivos (11)
- adapter.stl STL
- Clamp Bottom.stl STL
- Clamp Top.stl STL
- Long Adapter.stl STL
- Long Screw.stl STL
- Short Nut.stl STL
- Short Screw.stl STL
- Worm Gear Leg 1.Stl STL
- Worm Gear Leg 2.Stl STL
- Worm Gear Leg 3.Stl STL
- Worm Screw Body.stl STL
- Categoría
- Varios
- Formatos
- STL
- Descargas
- 429
- Publicado
Sobre este modelo
This is a tripod utilizing the worm gear mechanism to move up and down. It has a phone mount inspired by the Universal tripod phone mount designed by neyfrota. If you want to mount something else like a camera, feel free to design your own adapter to fit whatever it is that you want to mount.
When printing Worm Screw & Body support is needed at the snap fits and the bottom or use auto support, touch platform only option. At least 0.12 mm layer height is needed when printing the Clamp Bottom, Long Screw, Short Screw, and Short Nut.

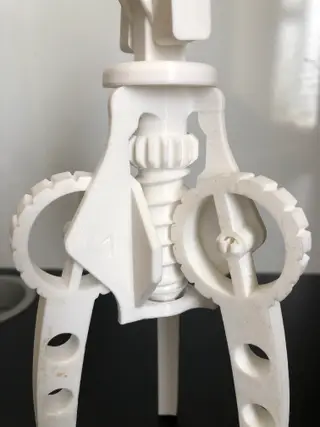

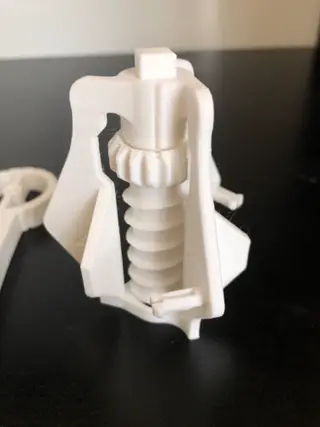

During assembly, the worm screw had an indentation to be align to the base indentation. Once that is aligned the worm gear legs could be snap on to the Worm Screw & Base, there are numbers on the Base to match each leg.
