Working Stargate with Arduino Control

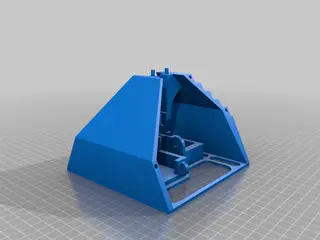

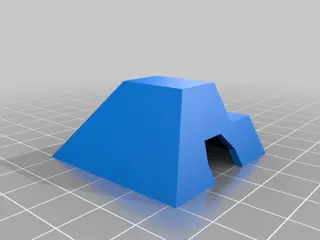

** STOP!!!! **** Glitch has come out with a new version of the stargate that blows this out of the water! check it out here http://www.thingiverse.com/thing:1603423 This is my Remix of Glitch's working Stargate. I remixed this with the following changes: - I altered the Base extensively, so that it prints in one large piece on a 150mm ^ 3 print bed ( with separate sides and a top cap ) - The base also has mounting for a NEMA 17 Stepper motor , and an Arduino UNO with a Motor Shield. - The Gear was modified to snugly fit onto the stepper motor, and added a hole through which the Stepper motor could be tightened to its mount. - I combined some parts that were 2 pieces into one piece so that the build required less gluing and was structurally stronger

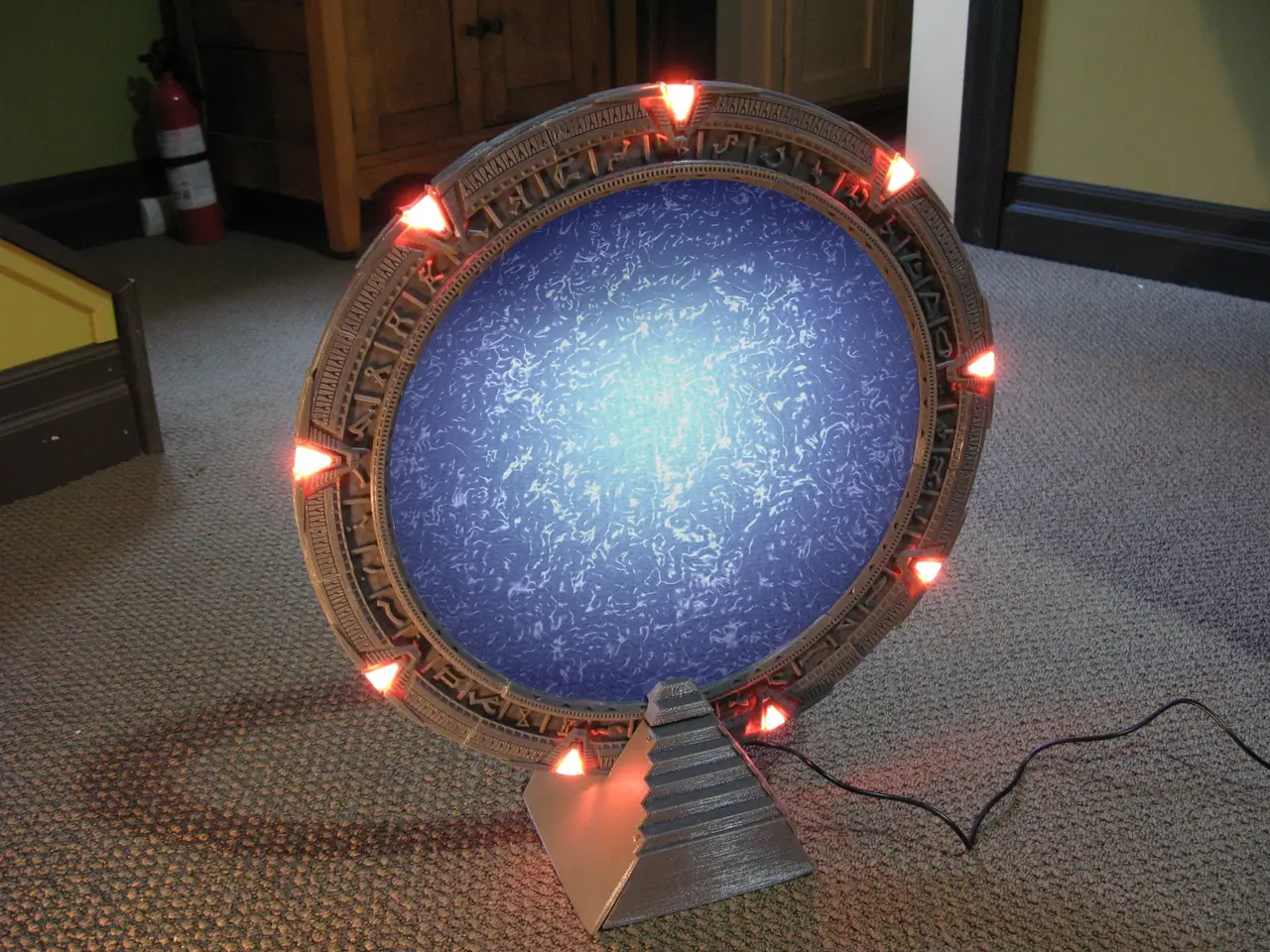

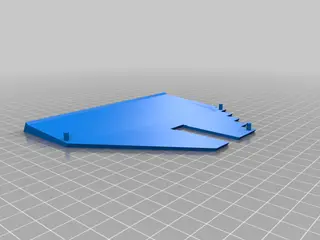

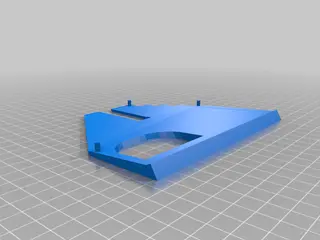

I also have included the DialingSequence Arduino sketch that I wrote to control the project. Detailed instructions are now available, click on Instructions to view them Video of the final result: http://youtu.be/JDSCKgwPn2k A HUGE thank you to Glitch for the original design of the working stargate! ** V 1.01 Update 15/12/2014 ** - Altered the Base to add more material to the interior vertical pillar on the micro controller side for more support for printing without support material. - Altered the Base to have have smaller holes so it will slice properly ( 5mm diameter became 4mm diameter ) - Altered the Pins on Side1 and Side2 to have smaller pegs to fit the new holes ( 4mm diameter to 3mm diameter )

Updated files are now named _17_1_x_Base-BTM_V1_01_fixed.stl _18_1_x_Base-Side1_V1_01_fixed.stl _19_1_x_Base-Side2_V1_01_fixed.stl - Instructions on the thingiverse page had randomly been mostly deleted, luckily I had them saved as a text file and have restored them ( to a slightly earlier version )
