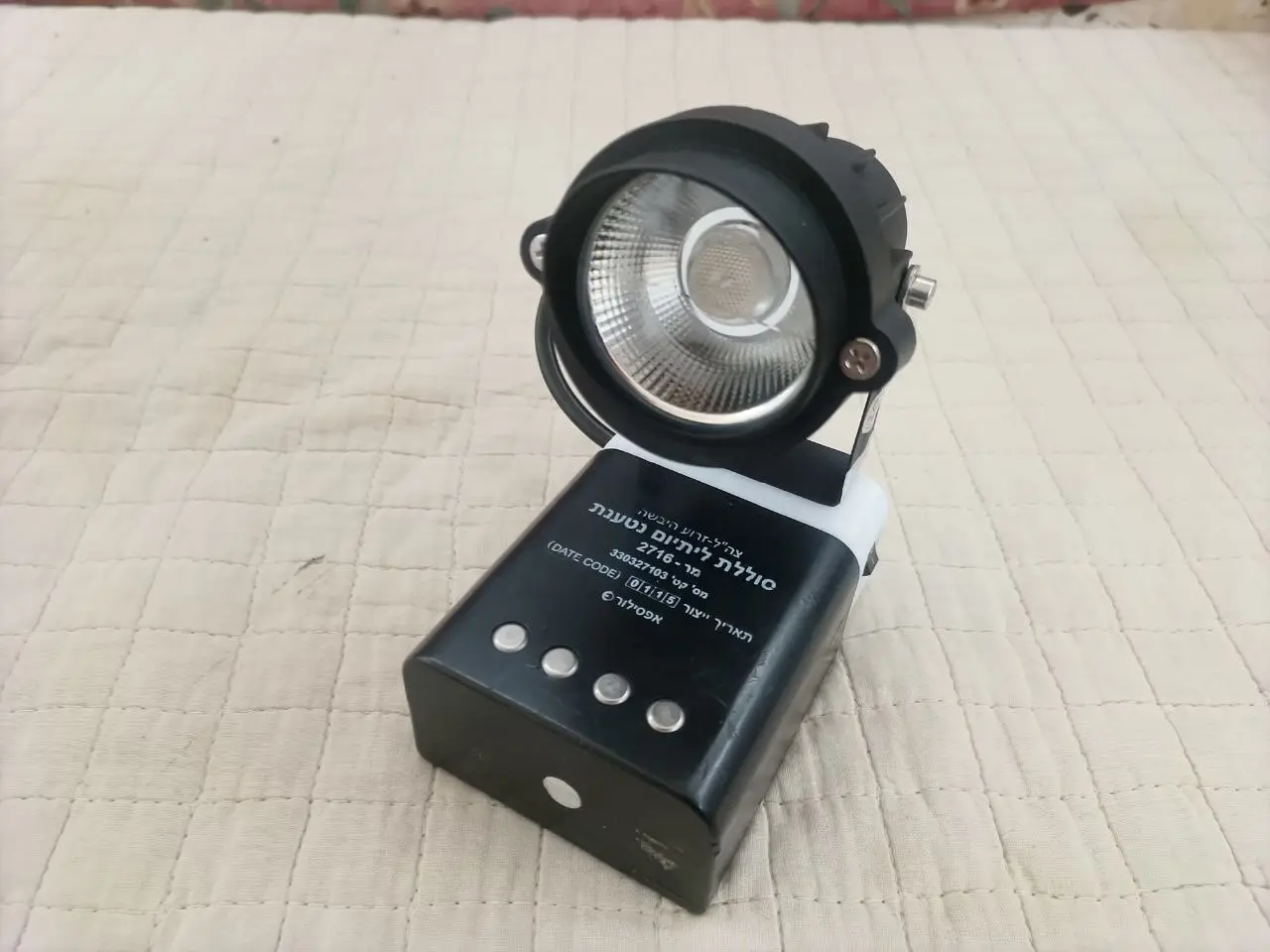

Work light using MR2716 V1.5
por Moshe Karni en Thingiverse
This is closer to the V1 than V2 and my preference so far. It is based on a different lamp type: https://s.click.aliexpress.com/e/_c4Uqft1H https://s.click.aliexpress.com/e/_c4Fn6V8T Hole sizes are slightly different; 6mm for the cable and M5 screw/Nut. Same instructions as V1. Mind the wire color..
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Moshe Karni.
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

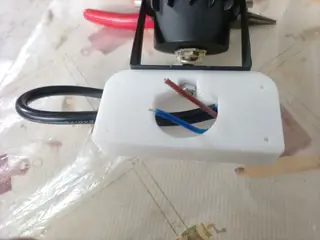

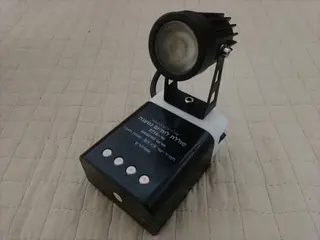

This is closer to the V1 than V2 and my preference so far. It is based on a different lamp type: https://s.click.aliexpress.com/e/_c4Uqft1H https://s.click.aliexpress.com/e/_c4Fn6V8T Hole sizes are slightly different; 6mm for the cable and M5 screw/Nut. Same instructions as V1. Mind the wire color is an AC color scheme and not DC, but they kept the logic with brown is the positive and blue is the ground. I tried both 5W and the 7W. Both deliver 5W. The 5W version is made of aluminum, while the 7W body is plastic with slightly better thicker copper core wire. Nothing crazy. Both deliver about the same power regardless of input voltage, so I neglected the boost circuit from V2. Beam seems slightly different.
Descripción original del autor, publicada en Thingiverse.
