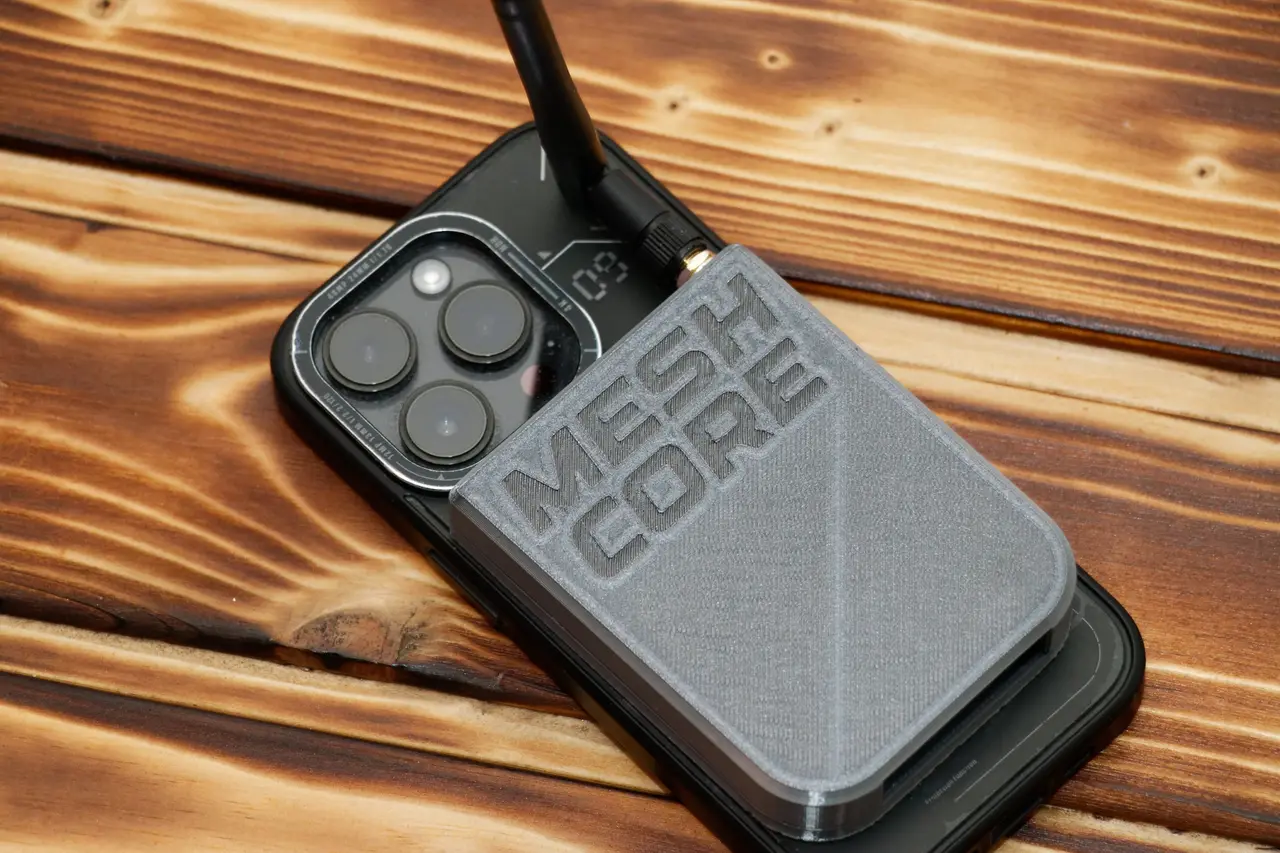

Wio Tracker L1 Lite, Magsafe/standalone case
por Martin Schmitt en Thingiverse
Full redesign, from sketch, of what was originally posted on social media. Strong volume reduction! The redesigned case has the charge port in a more charge-porty place, still no cover though. Note, the shadow gap between the case halves is not made to fully close. I use the "no hole" mix for my...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Martin Schmitt.
Archivos (5)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 6
- Publicado
Sobre este modelo

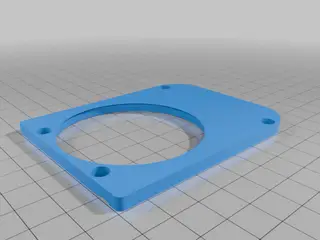

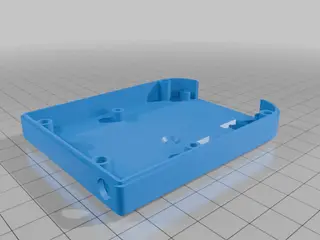

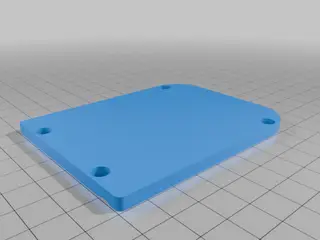

Full redesign, from sketch, of what was originally posted on social media. Strong volume reduction! The redesigned case has the charge port in a more charge-porty place, still no cover though. Note, the shadow gap between the case halves is not made to fully close. I use the "no hole" mix for my stationary desktop companion. Bill of materials: - Wio Tracker L1 Lite - Heat-set nuts: 4x M2, 4x M3 - 4x M2x6 screw + washers - 4x M3x6 screw - Lipo battery 40x25 with JST 1.0 connector - A fitting magsafe magnet ring, 58mm external diameter, rounded edges, I used this one: https://amzn.eu/d/0h2FRoCO - A few dabs of epoxy glue to properly mess things up

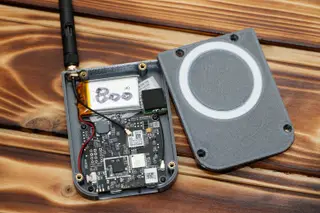

Battery held in place with a bit of the Wio's packaging foam. 800 mAh (or was it 850) pictured. Commercial reproduction is not allowed. Don't be that person.
Descripción original del autor, publicada en Thingiverse.
