Window Exhaust Panel Adapter Bar (dovetail, 2 parts)
por sina chavoshi en Printables
340 mm bar that sits in a window track and holds a portable AC exhaust panel, split in two with a dovetail joint.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a sina chavoshi.
Archivos (2)
- Categoría
- Hogar
- Formatos
- STL
- Descargas
- 0
- Publicado
Sobre este modelo

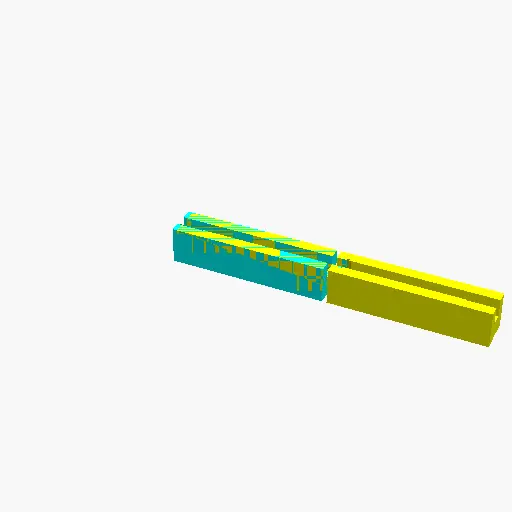

A mounting bar that fits into a window track at the bottom and holds an exhaust panel (for example from a portable air conditioner) at the top. The bar is 340 mm long, so it is split into left and right halves that join with a dovetail. - Top groove 13 mm wide, 20 mm deep for the panel
- Bottom groove 12 mm wide, 2 mm deep for the window track
- Relief cuts at the ends for L-shaped edges
- Dovetail with 0.15 mm tolerance; halves 185 mm and 170 mm long
Customize it in your browser This model is fully parametric. Change the length, groove sizes and dovetail tolerance; print_selection picks which half to export. Open it in the free OpenSCAD Playground, change the numbers and export your own STL: Open it in OpenSCAD Playground Source The OpenSCAD source and the rest of my models are on GitHub: github.com/SinaChavoshi/3d_printer_agentic_models Designed with AI assistance in OpenSCAD.
