WIFI motorized Camera Slider (with Tracking)

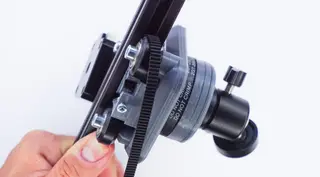

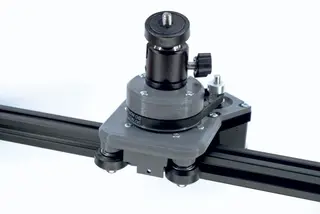

NEW CAMERA´S CARRIAGE: Thanks Daniel for the feedback + collaboration

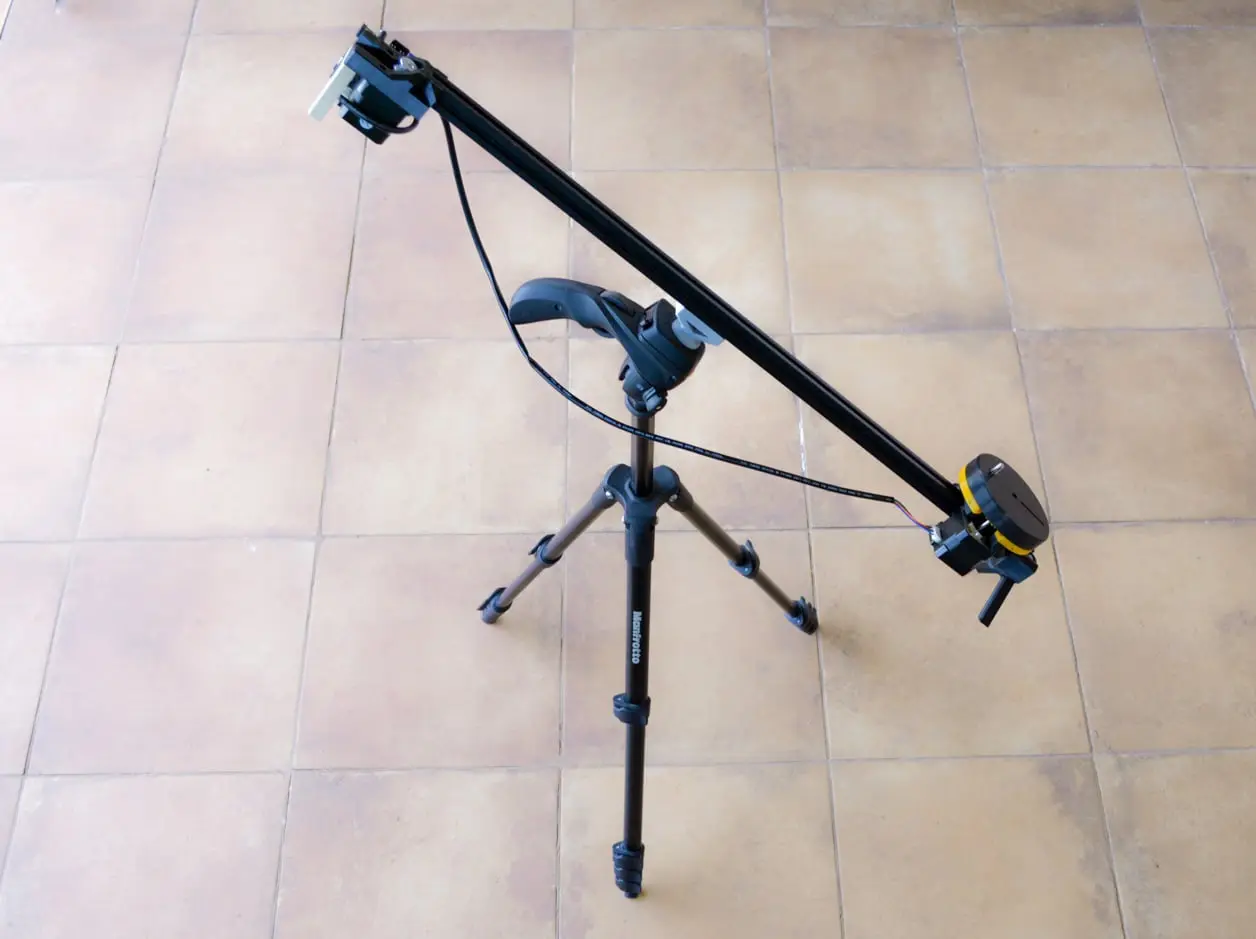

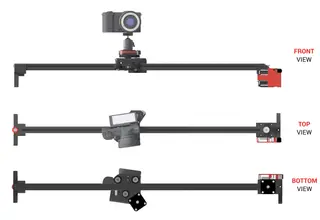

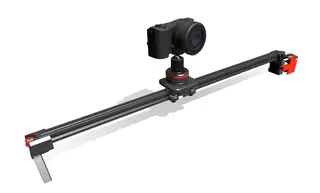

OBJECT TRACKING CAMERA SLIDER: Watch it in action: https://www.youtube.com/watch?v=VEQGMVY7RJQ This is a remotely controlled and Open Source CAMERA SLIDER with a tracking system. Two motors will be in charge of moving a platform where you can attach your smartphone/GOPRO or DSLR camera to and,at the same time, pan it tracking an object. Interactive 3D model of the camera slider here This camera slider can be EXTREMELY SLOW (0.01 mm/sec) but strong enough to smoothly move the camera platform You just have to let this Arduino robot know the location of the object to be filmed and it will calculate in real time what to do in order to keep the target always in the center of the camera view. Once the moving platform (with the camera) reaches the end of the rail, it will decelerate and come back to the original position, swinging back and forward until you decide to stop it. The camera can be replaced for a Webcam, flashlight, laser... Remotely controlled using your smartphone or tablet (WIFI). The robot can be controlled from your own smartphone/tablet using the freely available APPs: - Android - iOS

You can even control its travelling / panning speed in real time. Perfect for Time-Lapse videos, to create artistic presentations, to show automatically different point of views during a webcam call/ demonstration video. Check out some videos here and how it works here: https://www.jjrobots.com/camera-slider-tracking-system-3d-printed/ Assembly guide: https://www.jjrobots.com/camera-slider-kit-2-1-assembly-guide//

Everything is modifiable: this is an Arduino based OPEN SOURCE robot

------------------------------------------------------------------------ What you need to print: - BOTTOM + TOP - SCREW CAPTURING RING - CAP - PULLEY 80 teeth (slowly) - PULLEY TOP - UPPER GANTRY - BOTTOM GANTRY - Electronics CASE - MOTOR LEGS - PULLEY END LEGS - PULLEY END - 623zz ENVELOPE - MOTOR END

OPTIONAL - TRIPOD SUPPORT [V2] (only if you want to attach the slider to tripod/s)

----------------------------------------------------------------------- Electronics in charge of controlling the robot: DEVIA control board --------------------------------------------------------------------------- CAMERA SLIDER CUSTOMIZABLE KIT *Save the hassle and time: Get electronics and motors here* --------------------------------------------------------------------------- This robot uses the same electronics and motors you would need to create the: - Air Hockey Robot - Sphere-O-Bot (eggbot MOD) - iBoardbot - PyBot Robotic Arm - B-robot EVO 2 (and more to come...)

--------------------------------------------------------------------------- Getting tired of one robot? Create another just printing the 3D parts! NEW: Use the same electronics to create the Pybot Robotic Arm!
