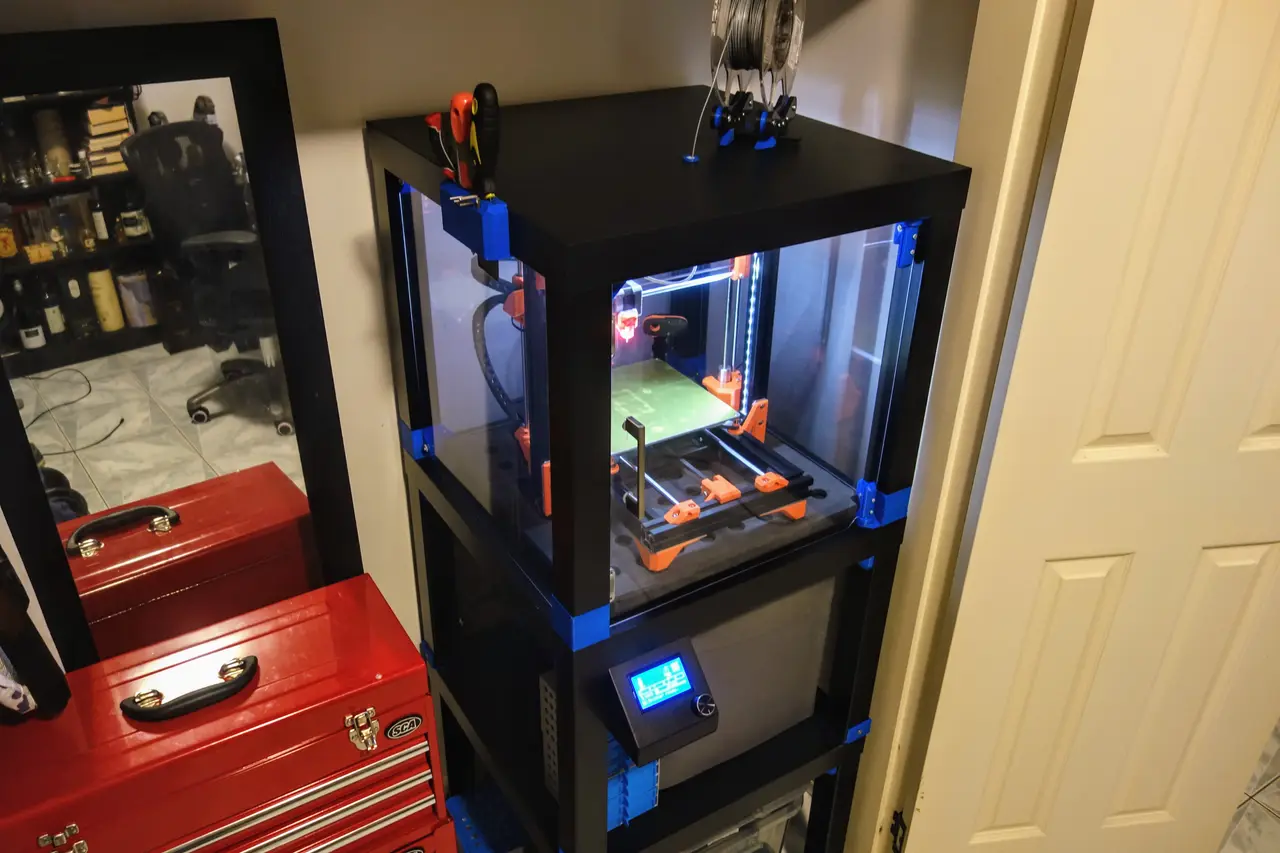

Wanhao Lack Triple Stack Enclosure Attack: With Sliding Control Box & Removable Top
por M R en Thingiverse
A collection of enhanced parts and mods to make the perfect Wanhao i3 / Maker Select / Cocoon Create enclosure. This enclosure has the following features: - Removable Top: Easily lift and remove the top of the enclosure for easy access and maintenance of the printer. The legs are lifted 60mm to...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a M R.
Archivos (17)
- Wanhao_Lack_-_Lid_Plug_Bottom_X3.stl STL · 110 KB
- Wanhao_Lack_-_Lid_plug_-_Door_Hinge_Right.stl STL · 108 KB
- Wanhao_Lack_-_Hinge_Bracket_Bottom_Right.stl STL · 60 KB
- Wanhao_Lack_-Tool_Holder.stl STL · 31 KB
- Wanhao_Lack_-_Hinge_-_Perspex_Door_Holder_X2.stl STL · 37 KB
- Wanhao_Lack_-_Filament_Holder_Feet.stl STL · 3 KB
- Wanhao_Lack_-_Hinge_Bracket_Top_Right.stl STL · 86 KB
- Wanhao_Lack_-_Cable_Guide.stl STL · 45 KB
- Wanhao_Lack_-_Leg_Bracket_X15.stl STL · 20 KB
- Wanhao_Lack_-_Perspex_Top_Brackets_X7.stl STL · 22 KB
- Wanhao_Lack_-_Control_Box_Slider_Bracket_X2.stl STL · 57 KB
- Wanhao_Lack_-_Feet_X4.stl STL · 116 KB
- Wanhao_Lack_-_Lid_Lifter_-_Front_Left_-_Handle_Side.stl STL · 228 KB
- Wanhao_Lack_-_Lid_Lifter_-_Rear_left__Right_X2.stl STL · 234 KB
- Wanhao_Lack_-_Lid_Lifter_-_Door_Hinge_Right.stl STL · 245 KB
- Wanhao_Lack_-_PTFE_Filament_Guide_and_Sponge_Cleaner_V2.stl STL · 188 KB
- Wanhao_Lack_-_Stacker_X4.stl STL · 47 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 11,087
- Publicado
Sobre este modelo

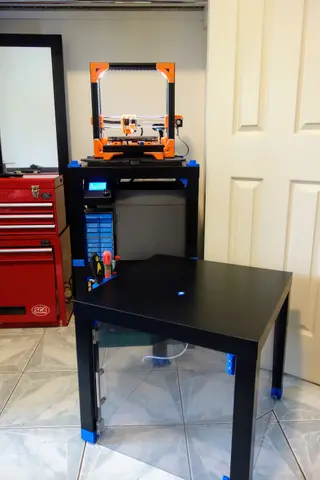

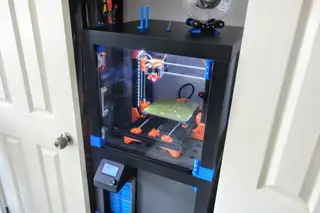

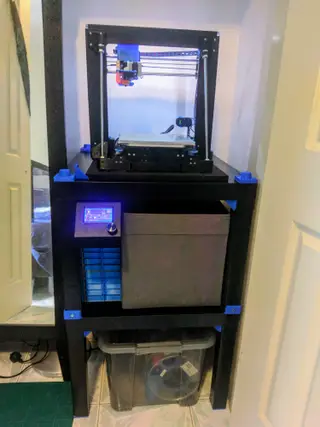

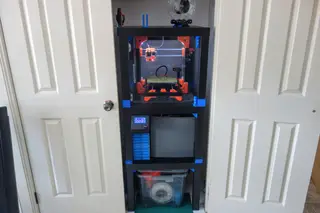

A collection of enhanced parts and mods to make the perfect Wanhao i3 / Maker Select / Cocoon Create enclosure. This enclosure has the following features: - Removable Top: Easily lift and remove the top of the enclosure for easy access and maintenance of the printer. The legs are lifted 60mm to ensure there is plenty of room inside. Total internal volume is 510x510x450mm. - Deployable Control Box: The underslung control box can slide out when needed or slid back in to save space. - Filament Guide: Contains a chamber for sponge to clean filament as it feeds through. Also contains a PTFE guide to feed filament directly into the extruder. This prevents striations as the filament is fed through smoother. - Optimized for silence: Use of EVA foam, sorbothane, rubber feet and butyl flashing to reduce vibrations and decouple the printer. - ToolHolder: Neatly holds the essentials such as the 5 stock allen keys, scrapper, needle nose pliers, thickness gauge tool and a screwdriver. - Inset Hinge: Inset door and hinge set 20mm from the edge. - Triple Stack Lack
Descripción original del autor, publicada en Thingiverse.
