WALLY - Wall Plate Customizer

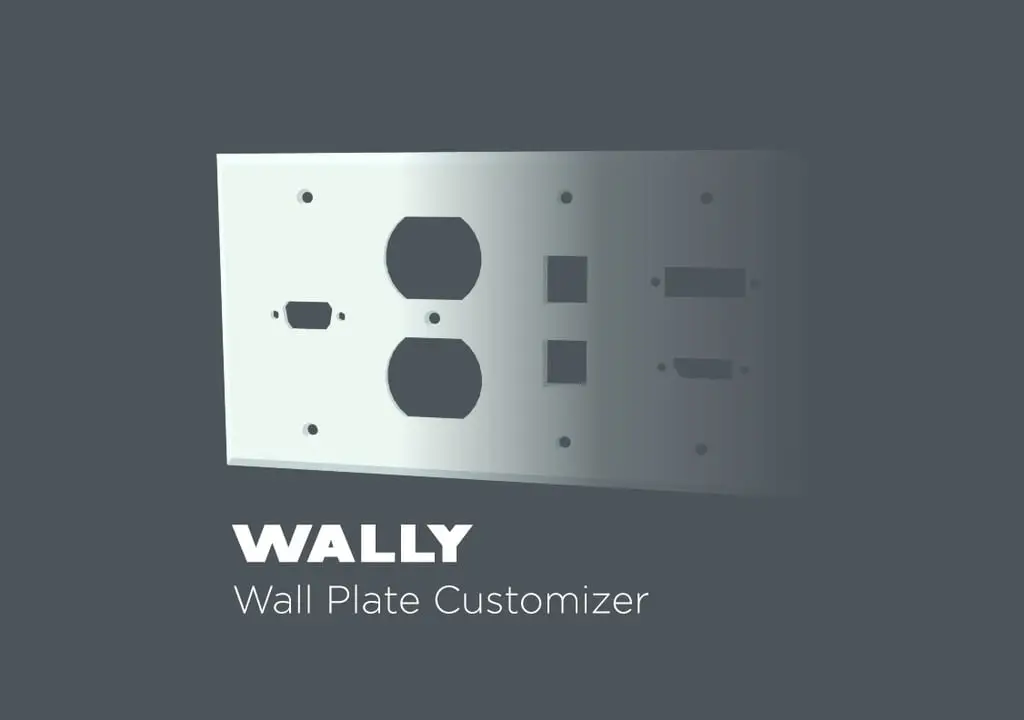

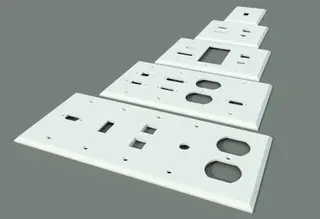

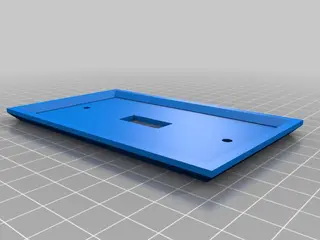

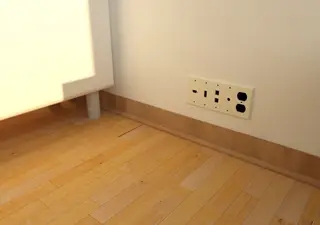

CUSTOMIZER CHALLENGE CONTEST WINNER - Useful Category Update v1.3: Added 3 plate sizes "Standard", "Junior-Jumbo", and "Jumbo". If you've got a larger hole in your wall these may help. So here it is, my first model designed in OpenSCAD. I found something that would really benefit from being a parametrically designed model: Wall Plates. I've created a OpenSCAD model that allows you to pick from a list of 18 types of connector/outlet style which then generates a 3D model correctly oriented and modeled to be immediately 3D printed. So what options did I include in this file? Well I’ve allowed the user to pick any width from 1 to 5 “plates” wide. These were measured off the standard electrical box sizes and should match screw holes in your existing boxes. The list of available plug and outlet styles is listed below: - Blank Port - Toggle Switch (Takes up entire plate) - Duplex Outlet (Takes up entire plate) - Rocker/Designer Plate (Takes up entire plate) - Keystone Jack - VGA Port - HDMI Port - DVI-I Port - Displayport - Cat5e/Cat6 Port - USB-A Port - USB-B Port - Firewire IEEE 1394 Port - DB-09 Port - PS2 Port - F-Type/Coaxial Port - S-Video Port - Stereo Headphone Jack

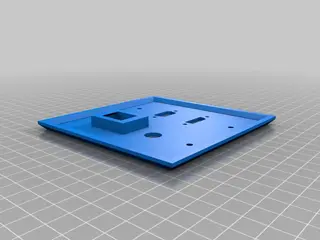

With the exception of #2-4 all of the plug types are modular and be placed on the top, bottom, or centered on a generated wall plate. All of the ports (excluding the outlets and keystone jacks) are designed to accommodate DataPro.net’s panel-mount cables. I asked a Mathlete friend of mine if he could calculate the possible number of plug and plate combinations and well, the number is big, real big. He estimates that you can generate a total of 850,789,801,599 possible permutations. Making this possibly one the most customizable objects currently on Thingiverse. If you'd like to check his math here's some nerdy details: http://thenewhobbyist.com/wall_plates.txt Also I've included more details and a few additional pictures in a blog post here: http://thenewhobbyist.com/2013/02/designing-with-parameters/ Change Log: Update v1.1: Stopped by Home Depot and picked up some wall plates to make a few corrections (thanks 3dsteve). I corrected the screw locations on the "toggle", "outlet", and "designer/rocker" plates. If you've generated one of these you may want to re-generate it. Update v1.2: Added "Long Toggle Switch" for laird. Update v1.3: Added 3 plate sizes "Standard", "Junior-Jumbo", and "Jumbo". If you've got a larger hole in your wall these may help.
