WallPlateMate Sample Set - Single-Gang Single-Sided Toggle Switch Style with WK1 Accessory

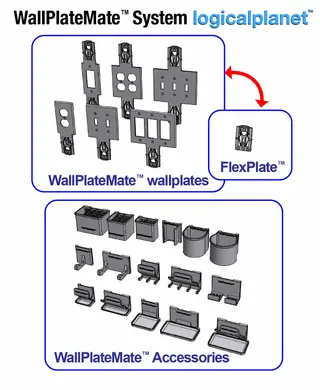

This is a sample WallPlateMate set from my collection of WallPlateMate connectors and accessories, designed for North American-style electrical outlets and switch wall plates. I’ve created WallPlateMate plates for 1, 2, and 3-gang configurations, including rocker-style, toggle-style, classic outlet, and blank covers.

The entire collection of plates and accessories are available here... WallPlateMate (accessories) https://thangs.com/mythangs/collections/131788

WallPlateMate (Plates) https://thangs.com/mythangs/collections/131287

WallPlate (Replacements) https://thangs.com/mythangs/collections/131283

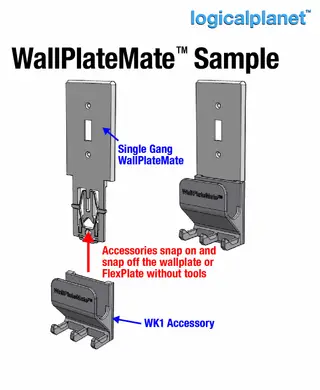

What’s Included in This Sample Set? - Single-gang, single-sided, toggle switch-style WallPlateMate - WK1 Vertical Pocket – A versatile storage accessory that holds a wallet, phone, or similar items, as well as a ball cap. It also features three hooks for keys, glasses, or other small essentials.

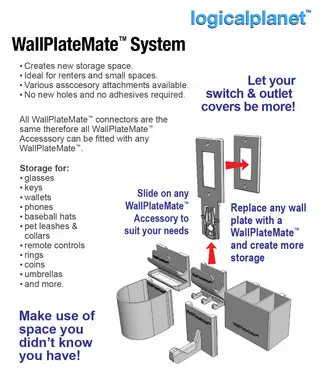

What is WallPlateMate?

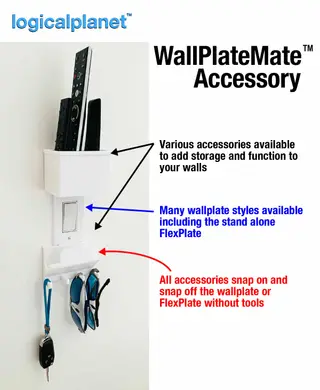

WallPlateMate allows you to attach functional and storage accessories to wall switches and electrical outlets seamlessly.

For additional information and instructions, please check out my blog site… https://www.logicalplanet.com/collections/wallplatemate/

Compatibility & Installation

For users with North American-style switch and outlet covers, the WallPlateMate replaces traditional covers with a modular attachment system.

For users outside North America, I’ve developed the FlexPlate, which enables the same functionality without replacing an outlet or switch cover.

WallPlateMate plates install easily using existing wall plate screws, requiring no additional holes in the wall. They can be removed at any time.

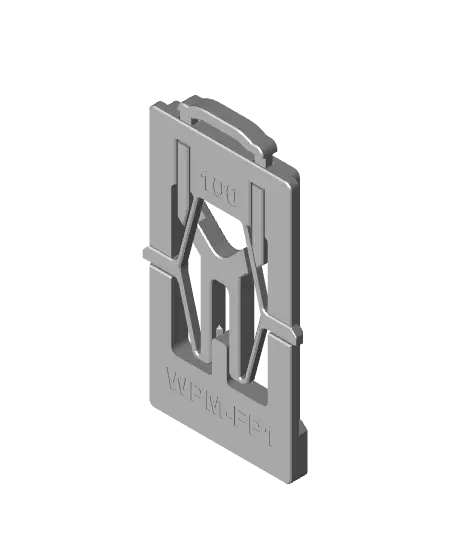

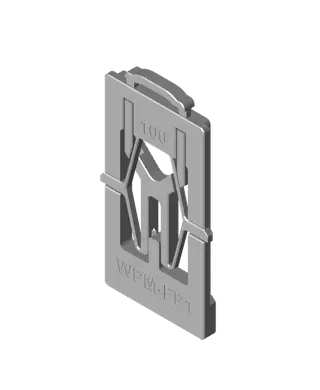

FlexPlate Options (not included with this download)

As part of the greater WallPlateMate collection, I also have standalone plates that can be glued onto the wall, or screwed onto the wall. These allow the use of any WallPlateMate Accessory without attaching it to an electrical switch or outlet.

Print & Material Considerations - Print-in-place and compliant design – no assembly required. - Accessories snap on and off easily without tools, fasteners, or adhesives.

_⚠️Important Safety Note Wall plates for switches and electrical outlets are part of a flame enclosure, so it’s crucial to use a flame-retardant, self-extinguishing filament when printing parts for electrical applications. For more information and suitable filaments, check out: 3D Printing with Flame-Retardant Materials https://all3dp.com/1/3d-printing-with-flame-retardant-materials/ PETG V0 – Flame-Retardant Filament https://www.prusa3d.com/en/product/prusament-petg-v0-jet-black-1kg Prusament _

Print Settings

For the best results, I suggest the following: Material = PLA / PETG Nozzle = 0.4mm Layer Height = 0.2mm Line Width = 0.4mm Wall Count = 4 (1.6mm) Top and Bottom Layer Count = 5 Detect Thin Walls = ON Wall Generator = Arachne Infill = 40% (Cubic) Ironing = Not required Brim = Should not be needed Support = No, all required support is incorporated into the design. Print orientation = As per the STL/3MF files.

Related Links

The entire collection of WallPlateMate accessories can be found here... WallPlateMate panels: https://thangs.com/mythangs/collections/131287 (url) WallPlateMate Accessories: https://thangs.com/mythangs/collections/131788

If you have not already, check out my Wall Plate collection here…. https://thangs.com/mythangs/collections/131283

Additional Info

Visit my blog for more details and other exciting designs:
https://www.logicalplanet.com/

Revisions and Updates

I occasionally update and revise my designs. When I do, I’ll document the changes here. Check back periodically for the latest revision notes or if you’re experiencing any issues with a model.
