Wallace and Gromit

Wallace and Gromit are from the British clay animation comedy series created by Nick Park of Aardman Animations.

Wallace is a good-natured, eccentric, cheese-loving inventor and his companion Gromit is a silent yet loyal and intelligent anthropomorphic dog.

No supports are required. If you have the right filament colors, no painting is needed.

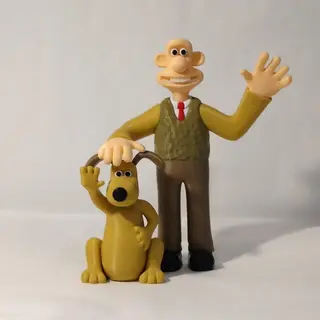

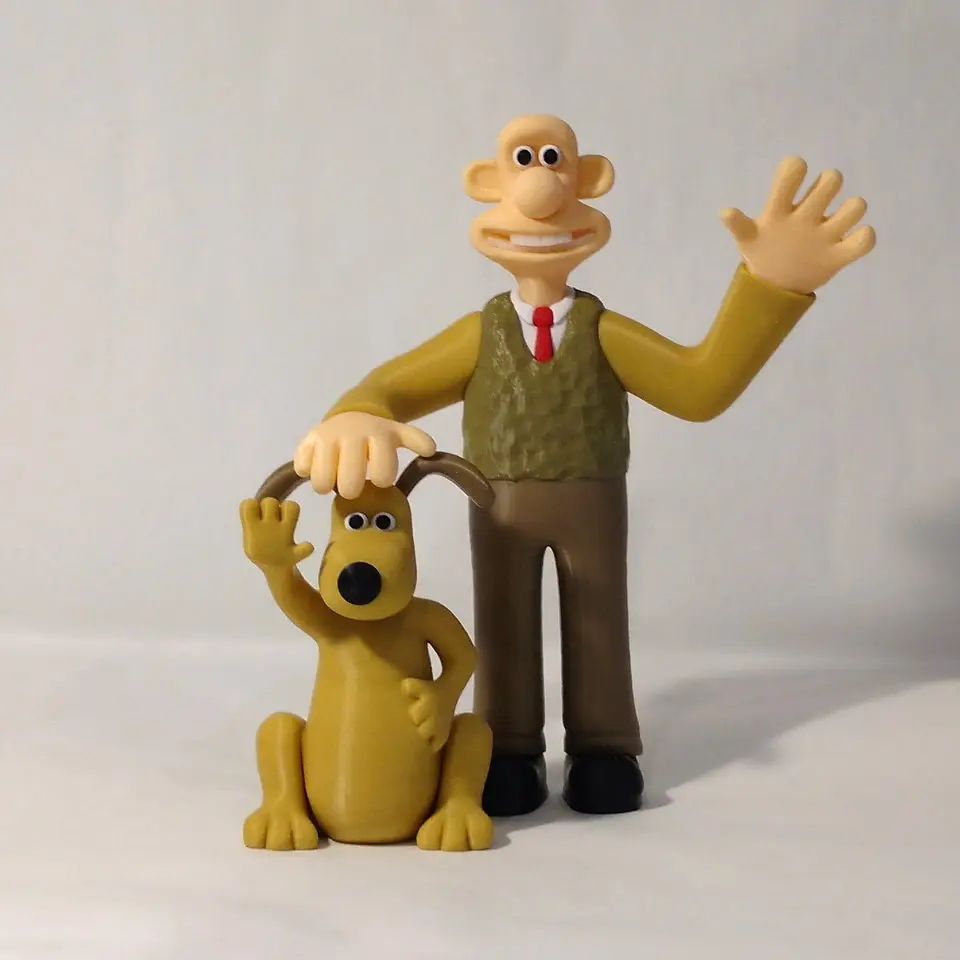

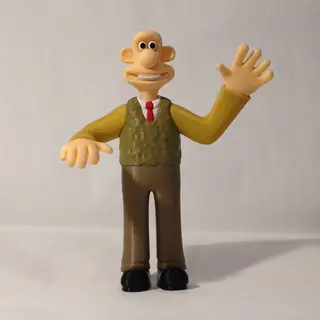

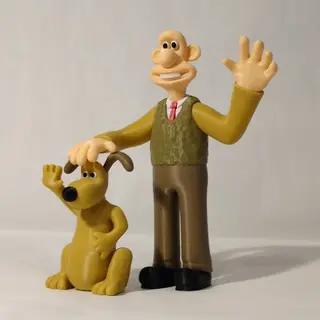

The completed model is 250mm tall after assembly. The individual figures are independent and you can print just one or the other if desired.

Enjoy!

Print Settings

Printer: FlashForge Creator X

Rafts: Doesn't Matter

Supports: No

Resolution: .2mm

Infill: 10%

Notes: See notes below for helpful printing and assembly instructions

---------------------------------------------

Building the model

Colors (there are no multiple printed pieces) Important note: Even though the arms and shirt should be the same color, I just could not get a filament color that would work for me, so I ended up with the arms as a different color than the shirt.

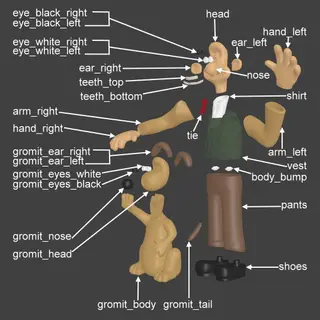

Black: shoes eye_black_left eye_black_right gromit_nose gromit_eyes_black .. White: shirt eye_white_left eye_white_right gromit_eyes_white .. Natural: teeth_top teeth_bottom .. Flesh: head nose ear_left ear_right hand_left hand_right .. Gold: arm_left arm_right gromit_head gromit_body .. Red: tie .. Brown: pants gromit_ear_left gromit_ear_right gromit_tail .. Sage Green: vest .. Any color (hidden part) body_bump

------------------------------------------

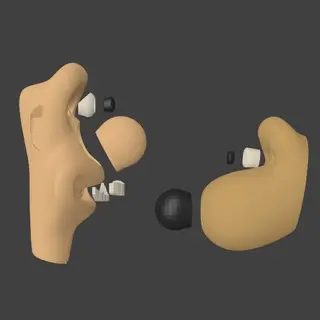

Printing and assembly tips Printing Tips: 1-No supports are required. .. 2-I used a brim on a few pieces and had no failed prints, use your discretion based on your own preference: -gromit_ear_right, gromit_ear_left and gromit_tail all have small bases and have steep part angles. I printed them all together with one overlapping brim. -arm_left and arm_right are also pieces with relatively small bases and larger angled parts. -head has a smallish base. .. Assembly tips: -The diagrams in the pictures section will help in assembling the model which is quite straightforward. -The model is meant to be glued together. -In case you mix up the shoes, they have the lower part of the dents facing outside. -Glue the eye_blacks into the eye_whites and then insert the completed eyes into the heads. -Wallace's hand simply rests above Gromit's head, there are no dents in either part for a fit and therefore there is no need to glue the two figures together. -The teeth fit easily into the head, simply glue and insert the bottom teeth first ensuring they are all the way in and centered. Then glue in the top teeth making sure they are centered and are glued to the upper lip. -I glued gromit's completed head to his body and after the glue dried I then glued and inserted his ears.
