Wall Mount Shelf Bracket

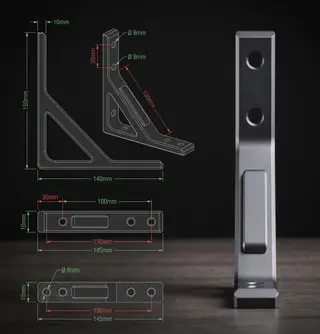

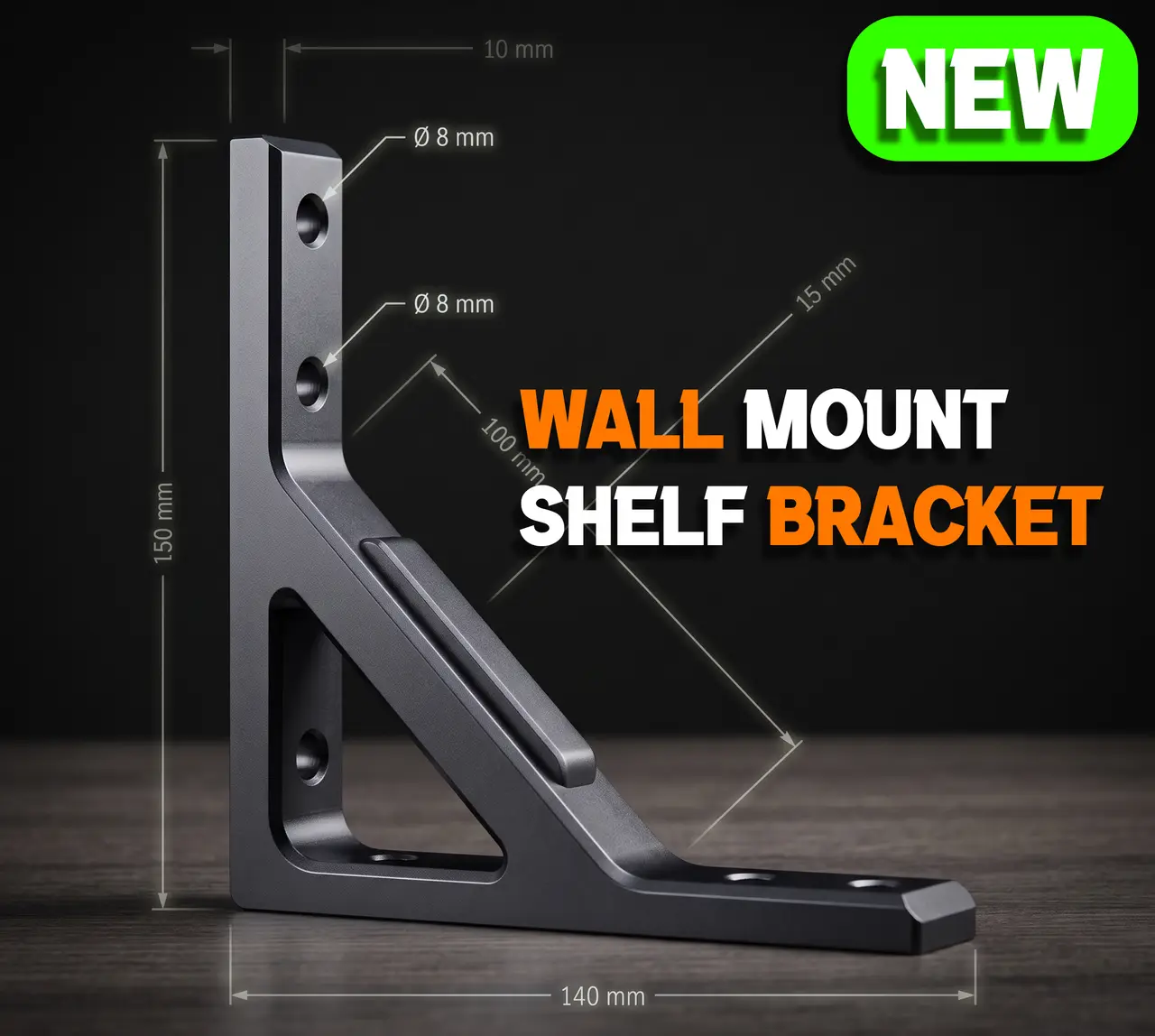

🔩 Wall Mount Shelf Bracket — Heavy-Duty Reinforced Design A heavy-duty, reinforced Wall Mount Shelf Bracket designed for strength, stability, and reliable shelf support. The bracket features a dual diagonal strut design that provides additional structural reinforcement while maintaining a clean and practical appearance. Designed for 3D printing, this bracket is suitable for a variety of shelving applications around the home, workshop, office, garage, or storage area. 📐 Technical Specifications Specification Dimension

Vertical Height 150 mm

Horizontal Depth 140 mm

Wall & Base Thickness 10 mm

Mounting Holes 3 × Ø8 mm

Primary Strut Span 100 mm

Strut Gap 15 mm

🔩 Mounting Holes The bracket features three vertically aligned Ø8 mm mounting holes. Hole positions measured from the bottom base: - Bottom hole: 30 mm

- Middle hole: 100 mm

- Top hole: 130 mm

This arrangement provides multiple mounting points to help distribute the load across the wall. 🏗 Reinforced Structural Design The bracket uses two diagonal support struts to reinforce the main shelf support. The dual-strut configuration is designed to: - Increase structural rigidity

- Reduce bending of the shelf support

- Improve load distribution

- Provide additional reinforcement between the wall and shelf surfaces

- Maintain a clean and functional appearance

The primary diagonal support has a 100 mm span, with a 15 mm structural gap between the support elements. 🖨 Recommended Print Settings These settings are recommended as a starting point for printing the bracket: Supports - Support: Enabled

- Support Type: Normal

- Support Placement: Auto

- Threshold Angle: 30°

- On Build Plate Only: Disabled

Strength - Wall Loops: 2

- Infill: 15–20%

- Seam Position: Random

Important: The actual load capacity depends on the printing material, layer height, extrusion settings, print orientation, wall mounting hardware, and the quality of the wall itself. Test the bracket gradually before applying heavy loads.

🧰 Recommended Materials For applications requiring additional strength and durability, materials such as PETG, ABS, or other suitable engineering-grade filaments may be preferable to standard PLA. Choose the material based on the expected load, temperature, and environment where the bracket will be installed. 📦 Intended Applications This bracket can be used for: - Home shelving

- Workshop storage

- Garage organization

- Office shelves

- Display shelves

- Storage areas
