Wall Mount Key Hanger — modelo 3D

Wall Mount Key Hanger

por Electrosync en Thangs

Model

Descargar en Thangs

Thangs entrega los archivos a usuarios con cuenta gratuita

Licencia

Revisa las condiciones

Wall Mount Key Hanger

El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.

Al descargar aceptas respetar la licencia y dar crédito a Electrosync.

Archivos (18)
  • 1. Assembly.stl STL · 1,6 MB
  • 2. Case - One Key.stl STL · 32 KB
  • 3. Case - Two Key.stl STL · 63 KB
  • 4. Case - Three Key.stl STL · 94 KB
  • 5. Case - Four Key.stl STL · 126 KB
  • 6. Case Bottom.stl STL · 5 KB
  • 7. Case Top.stl STL · 70 KB
  • 8. Button.stl STL · 274 KB
  • 9. Button Spring.stl STL · 27 KB
  • 10. Latch.stl STL · 10 KB
  • 11. Key Ring - Style 1.stl STL · 43 KB
  • 12. Key Ring - Style 2.stl STL · 43 KB
  • 13. Key Ring - Style 3.stl STL · 43 KB
  • 14._Case_-_One_Key_-_Screw_Mount.stl STL · 62 KB
  • 15._Case_-_Two_Key_-_Screw_Mount.stl STL · 94 KB
  • 16._Case_-_Three_Key_-_Screw_Mount.stl STL · 125 KB
  • 17._Case_-_Four_Key_-_Screw_Mount.stl STL · 157 KB
  • 44._Tongue_-_Superior_Bikes.stl STL · 162 KB
Categoría
Herramientas
Formatos
STL
Descargas (todas las plataformas)
6,994
Publicado

También en

Sobre este modelo

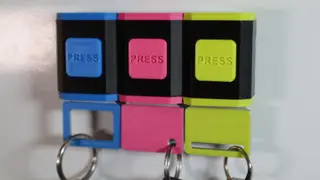

Model This is a holder for your keys (or anything else that you might misplace) featuring a double action mechanism for locking and unlocking the key ring in place as well as ejecting it. It’s 100% 3D printed with only double-sided tape or two screws required to mount it to a wall. Featuring 3 different keyring styles and variants that hold from 1 to 4 key rings. Colour code your print or add your own name or logo to the keyring design. This design is based on my Seat Belt Buckle Desk Fidget Toy (https://thangs.com/electrosync/Seat-Belt-Buckle-Desk-Fidget-Toy-35206?manualModelView=true).

Check out the Build Video (https://youtu.be/I1K7Dqjdyv8) for assembly instructions.

Print Settings - Button Spring – 0.2 mm layer height, 3 mm brim - Button – 0.2 mm layer height, supports and 3 mm brim - Case - 0.2 mm layer height, supports - Case Bottom – 0.2 mm layer height - Case Top – 0.2 mm layer height - Latch – 0.12 mm layer height - Key rings – 0.2 mm layer height

Hardware Required 3M Command Strips or double-sided tape to mount to wall.

More Electrosync YouTube (http://youtube.com/user/electrosync) Instagram (https://www.instagram.com/electrosync) Website (https://electrosync.com.au/)

Descripción original del autor, publicada en Thangs.
