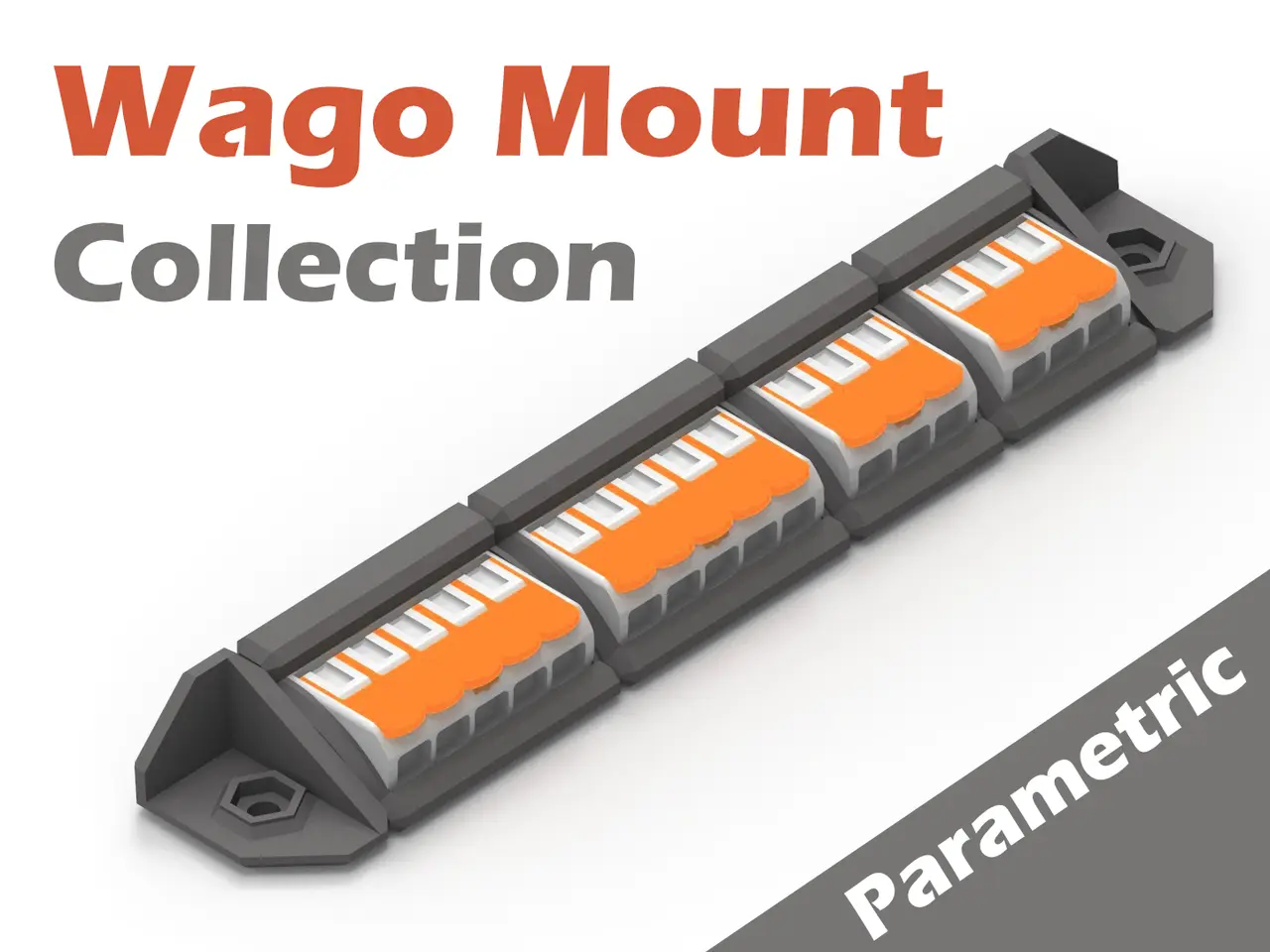

WAGO 221 Mount - 11 Variations

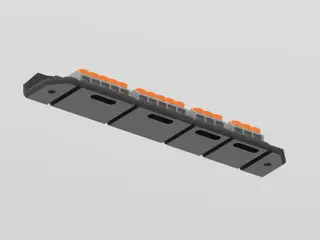

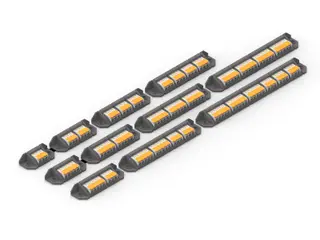

Description: These snug-fit mounts are designed for WAGO 221 connectors, offering 11 different variations to accommodate 3 and 5 connection WAGOs. The mounts are functional when the WAGOs are in place. To release them from the mount, use a screwdriver to poke through the hole on the bottom. The mounts have a height of 14.25 mm and a width of 24.5 mm. Secure them using 2 M3 nuts and bolts. Print orientation is the side with the numbers, with an infill of 40%. Features: - Variations: 11 different variations for 3 and 5 connection WAGO 221 connectors. - Dimensions: Height: 14.25 mm, Width: 24.5 mm. - Secure Fastening: Uses 2 M3 nuts and bolts. - Snug Fit: Ensures WAGOs are functional when in place. - Easy Release: Use a screwdriver to poke through the hole on the bottom. - Bolt Location Dimensions:- WAGO_221_5X_3X_1: 71 mm - WAGO_221_5X_3X_2: 127 mm - WAGO_221_5X_3X_3: 183 mm - WAGO_221_5X_1: 48.5 mm - WAGO_221_5X_2: 82 mm - WAGO_221_5X_3: 115.5 mm - WAGO_221_5X_4: 149 mm - WAGO_221_3X_1: 37.5 mm - WAGO_221_3X_2: 60 mm - WAGO_221_3X_3: 82.5 mm - WAGO_221_3X_4: 105 mm

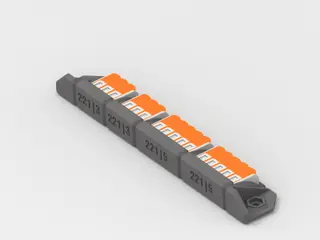

- Printing Recommendations:- Orientation: Print on the side with the numbers. - Infill: 40% for optimal strength.

If you would like the step files you can always contact me :)
