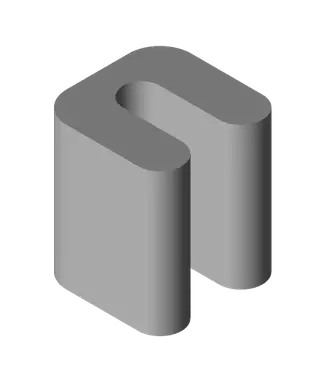

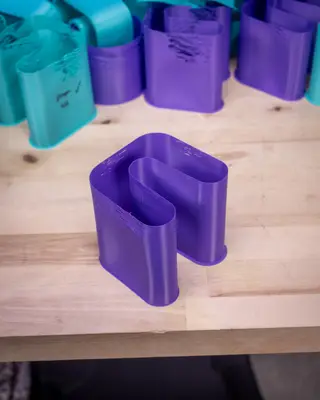

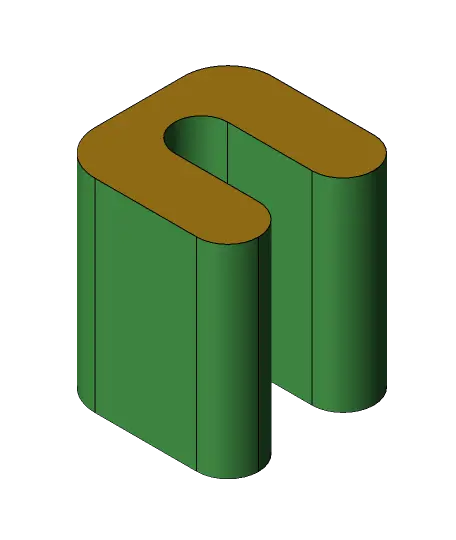

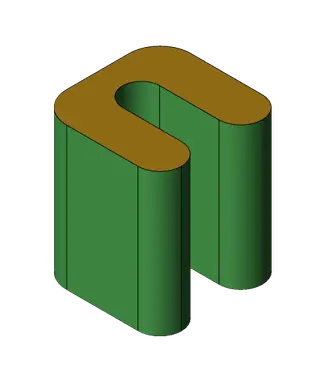

Voron V0.1 Flow Rate Test Race Track - 100mm Flowrate Test

Ready! Set! GO!!!

Testing Flow Rate for your 3D Printer hotend / nozzle isn't as straight forward as it should be. This is a Test file for exactly that purpose. This "Race Track" is designed to maximize speed and thus flow rate of your 3D printer hot end. I designed it specifically for a Voron V0.1 but it could be used on other machines. See this guide on how to configure it: https://youtu.be/3iK2PWv8TNI?t=222

WARNING: The Included G-Code is meant for a Voron V0.1 running Klipper firmware ONLY! Use at your own risk, you should understand the limitations of your machine before running this or any G-code your download online!! It is intended to print with ABS or ASA (file is sliced at 250C). I recommend Polymaker ASA (https://tinyurl.com/PolymakerASA) as that is what I used (affiliate link).

See the full video this comes from here: https://youtu.be/3iK2PWv8TNI ---------------------------------------------------

INCLUDED FILES: - Race Track Flow Rate Test STL - STEP File to scale to your needs. - Voron V0.1 ONLY - G-code

------------------------------------------------------ PRINT PARAMETERS: - No support required - MUST Use ABS or ASA (G-code is 250C) - Spiral Vase Mode ONLY - 0% Infill - .3mm Layer Height (for .4mm Nozzle) - .45mm Extrusion Width - Temps & Fan depend on material (ABS or ASA recommended)

I printed mine with Polymaker ASA (https://tinyurl.com/PolymakerASA) _(Affiliate Link)_ ------------------------------------------------------- Want to Support what I do? Check out my social medias please!

Link Tree: http://www.MandicReally.com/links -------------------------------------------------------

All of my Designs are covered by a Creative Commons Non-Commercial Share-Alike License . Sale of prints using my designs are the sole right of myself, the designer, and those I license to do so. Please understand every design is hours of work and multiple prototype prints to ensure quality. Unauthorized sales will result in new designs not being made public.

PLEASE Credit any and all Remixes of my designs: MandicReally
