Sobre este modelo
Ports Ports Everywhere

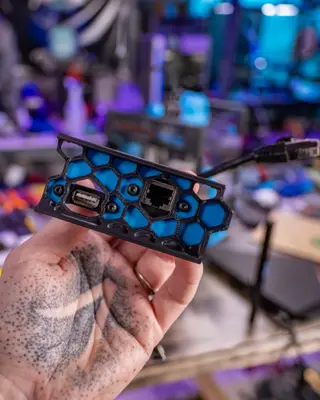

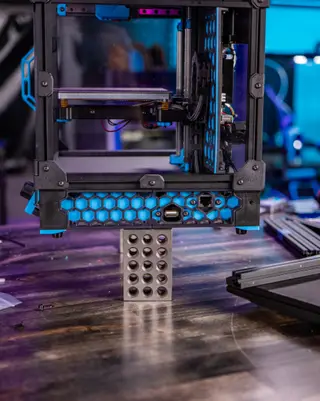

The Voron 0.2 doesn't have external USB & Network connections, so let's change that! I made this after the Fysetc 0.2R1 kit came in with Panel Mount cables but no ports to install them on. This new side skirt installs at the right rear of the machine & allows use of external USB & RJ45 connections to your SBC via Panel Mount Pigtails. (Like those linked below.)

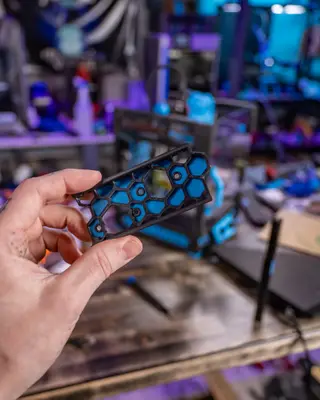

Two versions are included, one for multi-color & one with open vent holes. The multi-color one is intended to be printed with layer height color changes. Pause at the start of 1.2mm Layer Height & Change from your Accent Color to your Base color to complete the look.

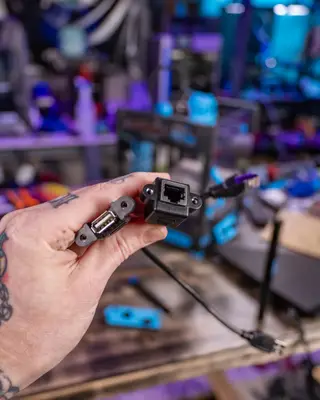

--------------------------------------------------------------- Parts Needed (Affiliate Links): - Panel Mount USB (https://amzn.to/3soaTTI) - Panel Mount RJ45 (https://amzn.to/3swhJ9C) - Fysetc Voron 0.2 kit (https://s.click.aliexpress.com/e/_DdzhcJt) - Polymaker Filament (https://tinyurl.com/Polymakerr)

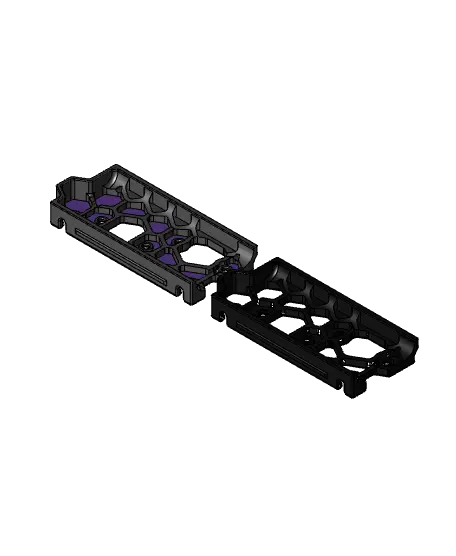

--------------------------------------------------------------- Files Included: - Voron 0.2 Panel Mount Ports Skirt STEP file - Voron 0.2 Port Skirt vented STL - Voron 0.2 Port Skirt Multi-Color STL
--------------------------------------------------------------- Recommended Print Settings: - 4 Perimeters - 40% Infill - No Supports Required - ABS / ASA Filament recommeneded. - For Multi-Color, Start with your Accent color. Pause at the start of Layer height 1.2mm & switch to your Base Color. No added hardware required.
--------------------------------------------------------------- Want to Support what I do? Check out my social medias please!
Link Tree: http://www.MandicReally.com/links ---------------------------------------------------------------
Remixed from Voron Design team V0.2r1 Skirt Design: https://vorondesign.com/voron0.2
Design covered by GPL3 Open Source License. Any Remixes must be shared under the same License & Attribute MandicReally / Voron Design Team as originators of this design.
