Voidstar Data Blaster Mk1
The Voidstar Data Blaster is a cyberdeck based on the Raspberry Pi 400! This is a prototype model and isn't really ready to be reproduced. For more info, watch the video at https://www.youtube.com/watch?v=guGffGw3uDg
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalSin licencia indicada
El autor no indicó una licencia: todos los derechos le pertenecen. Úsalo solo para imprimir en casa y consulta al autor para cualquier otro uso.
Al descargar aceptas respetar la licencia y dar crédito a Zack F.
Archivos (22)
- Front Right.stl STL · 181 KB
- HDMI Winding Peg.stl STL · 167 KB
- Left Wrist Bottom.stl STL · 332 KB
- Mid Left.stl STL · 103 KB
- Mid Right.stl STL · 169 KB
- Rear Appliques.stl STL · 91 KB
- Rear Cap.stl STL · 331 KB
- Rear Left.stl STL · 301 KB
- Rear Right.stl STL · 272 KB
- Right Wrist Bottom.stl STL · 329 KB
- Shoulder Bottom.stl STL · 357 KB
- Shoulder Top.stl STL · 459 KB
- Voidstar Outlines.stl STL · 373 KB
- Voidstar Text.stl STL · 4,2 MB
- Whole Shebang (don't print).stl STL · 6,6 MB
- Wrist Top.stl STL · 247 KB
- Cell Holder.stl STL · 124 KB
- Crosshair Badge.stl STL · 63 KB
- Cube Badge.stl STL · 7 KB
- Elbow Bottom.stl STL · 269 KB
- Elbow Top.stl STL · 276 KB
- Front Left.stl STL · 21 KB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 276
- Publicado
Sobre este modelo

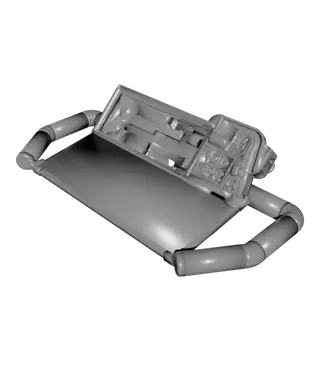

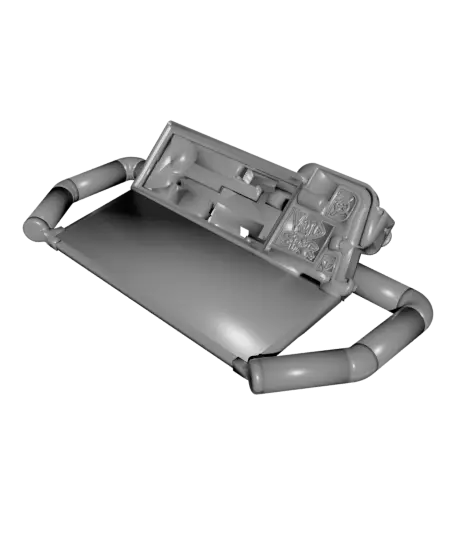

The Voidstar Data Blaster is a cyberdeck based on the Raspberry Pi 400! This is a prototype model and isn't really ready to be reproduced. For more info, watch the video at https://www.youtube.com/watch?v=guGffGw3uDg
Unfortunately, I can't provide any support for this prototype. In a future episode of my YouTube show, I'll revisit this project, make it more manufacturable, and write instructions.
Printed elements required: 6x Cell Holder 1x Crosshair Badge (optional) 1x Cube Badge (optional) 2x Elbow Bottom 2x Elbow Top 1x Front Left 1x Front Right 2x HDMI Winding Peg 1x Left Wrist Bottom 1x Mid Left 1x Mid Right 1x Rear Appliques (optional) 2x Rear Cap 1x Rear Left 1x Rear Right 1x Right Wrist Bottom 2x Shoulder Bottom 2x Shoulder Top 1x Voidstar Outlines (optional) 1x Voidstar Text (optional) 2x Wrist Top
Bill of materials: Vufine wearable display: https://amzn.to/3eZMwST Micro-USB Ribbon Cable: https://amzn.to/3lwvc9m USB-C Ribbon Cable: https://amzn.to/3qZBv6J Slim Micro HDMI Cable: https://amzn.to/3cWuD58 HDMI Ribbon Cable Kit: https://amzn.to/3c3FACH NESDR Nano 3: https://amzn.to/3s4fXap Micro-USB Extender: https://amzn.to/3c3FMlp M2.5 Screws: https://amzn.to/3qXUJtm Micro-HDMI to HDMI Adapter: https://amzn.to/3r5C3aY Raspberry Pi 400: https://amzn.to/30YroEH JB KwikWeld Epoxy: https://amzn.to/3c44oug Anker PowerCore Speed 20000 Illuminated Momentary Pushbutton: https://amzn.to/3r1x0bD Wisecoco Stretched Bar Display: https://www.aliexpress.com/item/1005001470561851.html?spm=a2g0s.9042311.0.0.6e0e4c4dPV9tFt 330 Ohm resistor Rather a lot of 18ga wire Lots of filament More filament, but fluorescent or clear
Descripción original del autor, publicada en Thangs.
