Vertical Wind Turbine VAWT
por Tobias Gabathuler en Thingiverse
Vertical Axis Wind Turbine VAWT A beautiful wind turbine (Ø245mm x 800mm). Intended for balcony and low windspeed use. Designed for my Ultimaker 2+ (max build volume, big nozzle, high printspeed). Of course you can print it on every, big enough printer. I recommend to use a big nozzle (0.6mm for...
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Tobias Gabathuler.
Archivos (24)
- Flügel_8x.stl STL · 1,0 MB
- Achse_4x.stl STL · 665 KB
- Lager_Ø20_2x.stl STL · 1,3 MB
- Lager_Ø22_2x.stl STL · 1,3 MB
- Lager_Ø30_2x.stl STL · 1,3 MB
- Lager_Ø25_2x.stl STL · 1,3 MB
- Lager_Ø28_2x.stl STL · 1,3 MB
- Lager_Ø15_2x.stl STL · 1,3 MB
- Lager_Ø18_2x.stl STL · 1,3 MB
- Lager_Ø12_2x.stl STL · 1,3 MB
- Unterteil_1x.stl STL · 6,5 MB
- Oberteil_1x.stl STL · 6,7 MB
- Zwischenteil_3x.stl STL · 7,7 MB
- Testfile_Flügel_spiral_mode_0.6mm.stl STL · 18 KB
- Testfile_Unterteil_0.8mm.stl STL · 11 KB
- Flügel_8x__UM2__0.6_Nozzle.gcode GCODE · 8,6 MB
- Achse.stp STP · 32 KB
- Flügel.stp STP · 40 KB
- Lager.stp STP · 295 KB
- Zwischenteil.stp STP · 3,2 MB
- Oberteil.stp STP · 4,4 MB
- Unterteil.stp STP · 5,3 MB
- Test_für_Thomas_Flügel_1.6mm.stl STL · 1,0 MB
- Test_für_Thomas_Flügel_1.8mm.stl STL · 1,0 MB
- Categoría
- Educación
- Formatos
- STL, GCODE, STP
- Descargas
- 29,948
- Publicado
Sobre este modelo

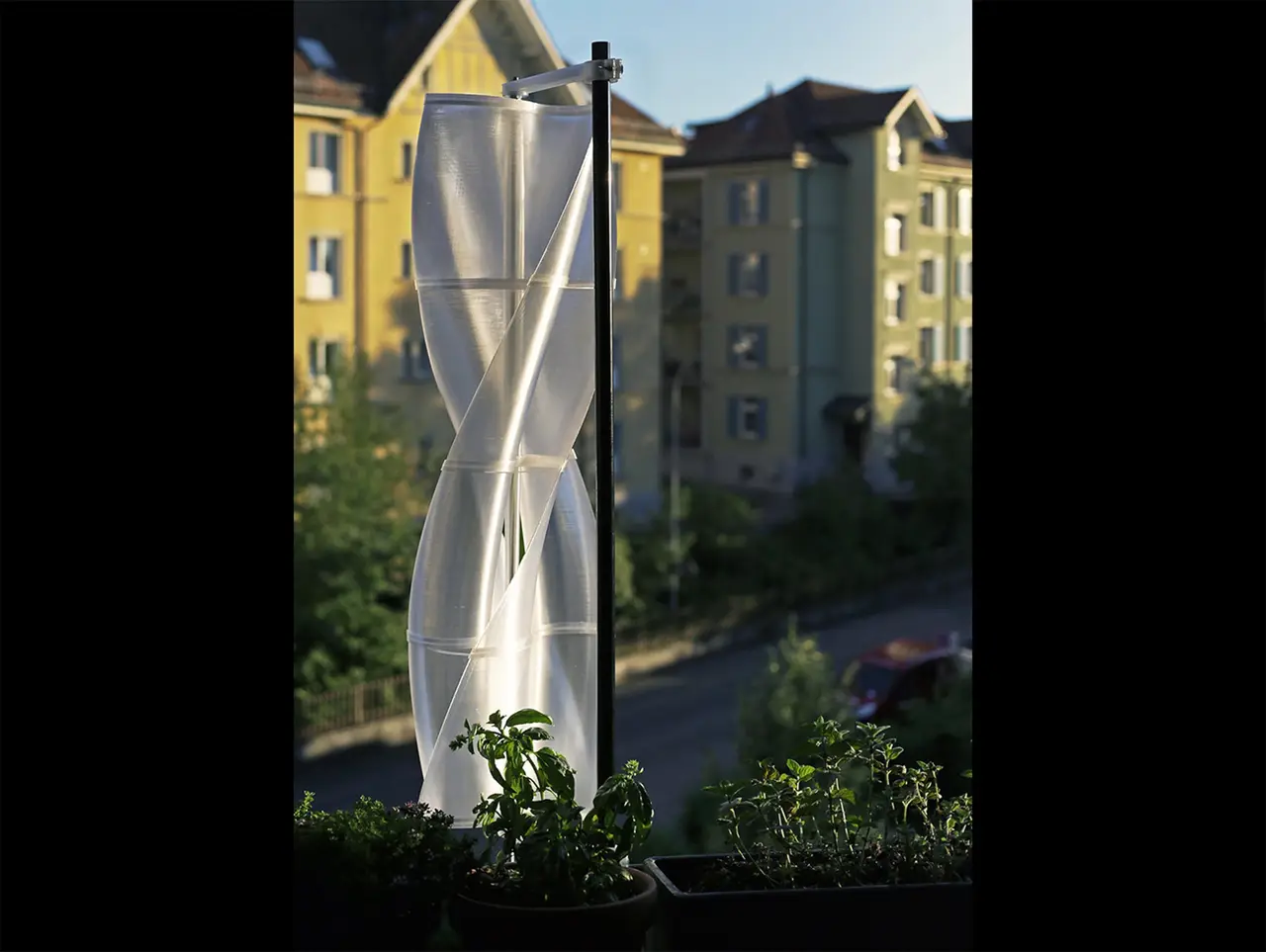

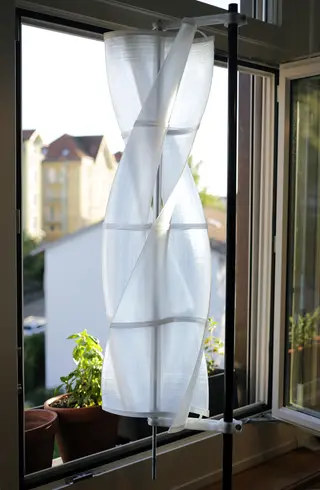

Vertical Axis Wind Turbine VAWT A beautiful wind turbine (Ø245mm x 800mm). Intended for balcony and low windspeed use. Designed for my Ultimaker 2+ (max build volume, big nozzle, high printspeed). Of course you can print it on every, big enough printer. I recommend to use a big nozzle (0.6mm for „Flügel 8x.stl“ with Vase Mode, 0.8mm for the rest)
short video: https://youtu.be/4xszhV_X3DU
___ update 12/11/2017: added the STEP files!
12/01/2018: a smaller Version with a diameter of 130mm here: https://www.thingiverse.com/thing:2755208 ___

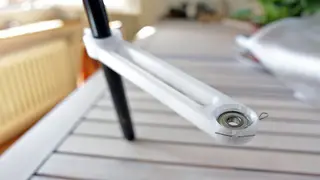

What you need 1x . . . . . . . M8x1000mm straight threaded rod 8x . . . . . . . M8 nut 2x . . . . . . . 608 bearing Ø22xØ8x7mm (e.g. inline skates bearings) 2x . . . . . . . bolt and nut (e.g.M4 x20) 1x . . . . . . . pipe or stick Ø12,15..., 30mm (print „Lager Ø..2x.stl” with the same diameter) 2x . . . . . . . paper clip to use them as a cotter ~820g . . . . Filament
Print settings „Flügel 8x.stl“ PETG Spiral Mode/Vase Mode----0.6mm Nozzle----0.3mm Layer----65mm/s Speed There is a GCODE for the Ultimaker 2 /2+

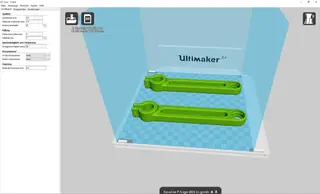

„Achse 4x.stl“ PETG Spiral Mode/Vase Mode----0.8mm Nozzle----0.4mm Layer----65mm/s Speed

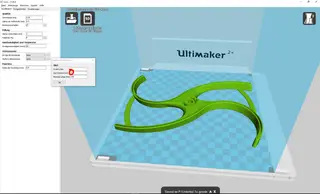

other parts PETG 0.8mm Nozzle----0.2-0.4 Layer----40-75mm/s Speed----Infill 15%
- There are two calibration files, the two parts should fit smoothly together. „Testfile Unterteil 0.8mm“ for print settings of the parts „Unterteil1x“ „Zwischenteil3x“ „Oberteil1x“. The part has a internal width of around 2mm. „Testfile Flügel spiral mode 0.6mm“ for the settings of „Flügel 8x.stl“. The part should have a width of 1.1- 1.5mm.
Assembly instruction - Assembly instruction can be found under this link: https://youtu.be/cVetrYLIKok - It is important to use a straight threaded rod.
if you have any suggestions for improvement, questions or need further information, feel free to contact me. Gerne auch auf Deutsch :-)
