Vertical PiTFT50 Screen Mount

Touch Your Screen Vertically

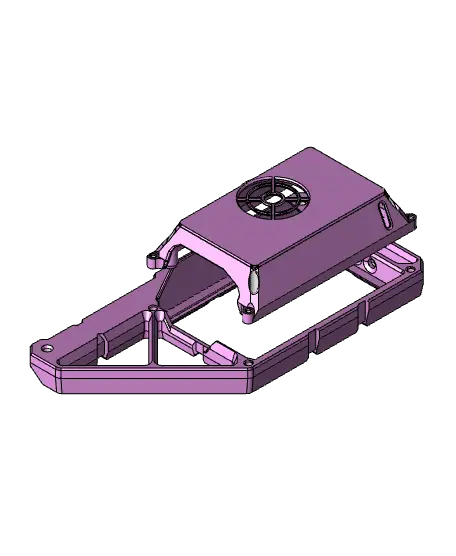

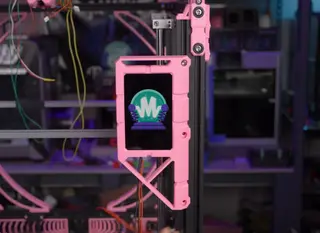

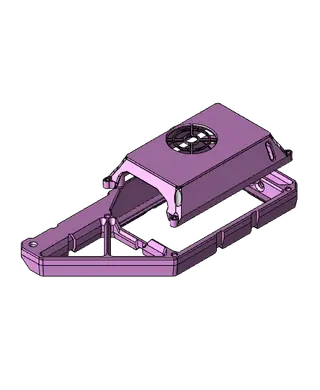

This design is a mounting system for a BigTreeTech PiTFT50 screen and a Raspberry Pi 3/4B to be mounted on an upright 20-series extrusion. Personally I used it on my Ender 5 Plus to Mercury One.1 conversion to mount the TFT & Raspberry Pi that runs Klipper for this machine. I've had NO LUCK turning the KlipperScreen interface 90 degrees (portrait orientation) to match this, I just turn my head to look at it...

See my use of this screen & other mods here: https://youtu.be/kmMW6_7lrlQ?si=Uxvht_KfN_OGLHya

This leaves the USB ports on the Raspberry Pi accessible through the bottom and has a grille opening for a 40mm cooling fan. That is intended to be used with my matching Pi/Pico cooling fan mount found HERE (https://than.gs/m/66267).

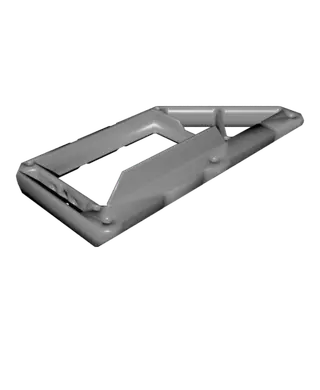

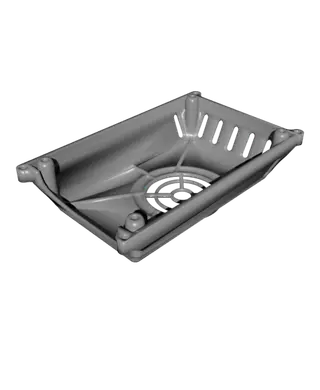

No supports are required for the “Main Mount”, but the Lid portion requires supports under the Mounting Screw Tabs. See the provided 3MF file from OrcaSlicer to confirm.

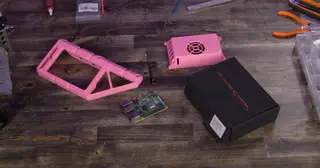

--------------------------------------------------------------- Parts Needed (Affiliate Links): - BigTreeTech PiTFT50 (https://shrsl.com/4gtqq) - BigTreeTech PiTFT50 - Amazon (https://amzn.to/4a7FtBB) - M5 Roll-in Nuts (https://amzn.to/3x6YDJ3) - M3 Heat Press Inserts (https://amzn.to/43v0nIk) - 40x10mm Fan 5V (https://amzn.to/3VxFpX7) - Raspberry Pi 4 (https://amzn.to/3Tv33kw) - Raspberry Pi 3 (https://amzn.to/3TzGLOH) - Polymaker Filament (https://tinyurl.com/Polymakerr) --------------------------------------------------------------- Files Included: - Vertical PiTFT50 Screen Mount STEP - Vertical PiTFT50 Screen Mount Main STL - Vertical PiTFT50 Lid STL --------------------------------------------------------------- Recommended Print Settings: - .2mm Layer Height ONLY (Bridging requires this, .1 could work as well.) - 3 Perimeters - 25% Infill - Supports Required On Lid Only. - ASA / ABS Filament recommeneded. --------------------------------------------------------------- Want to Support what I do? Check out my social medias please!
