Versatile mATX PC Rack
por Zrjunz1 en Printables

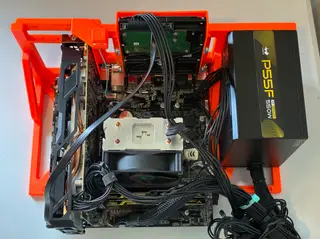

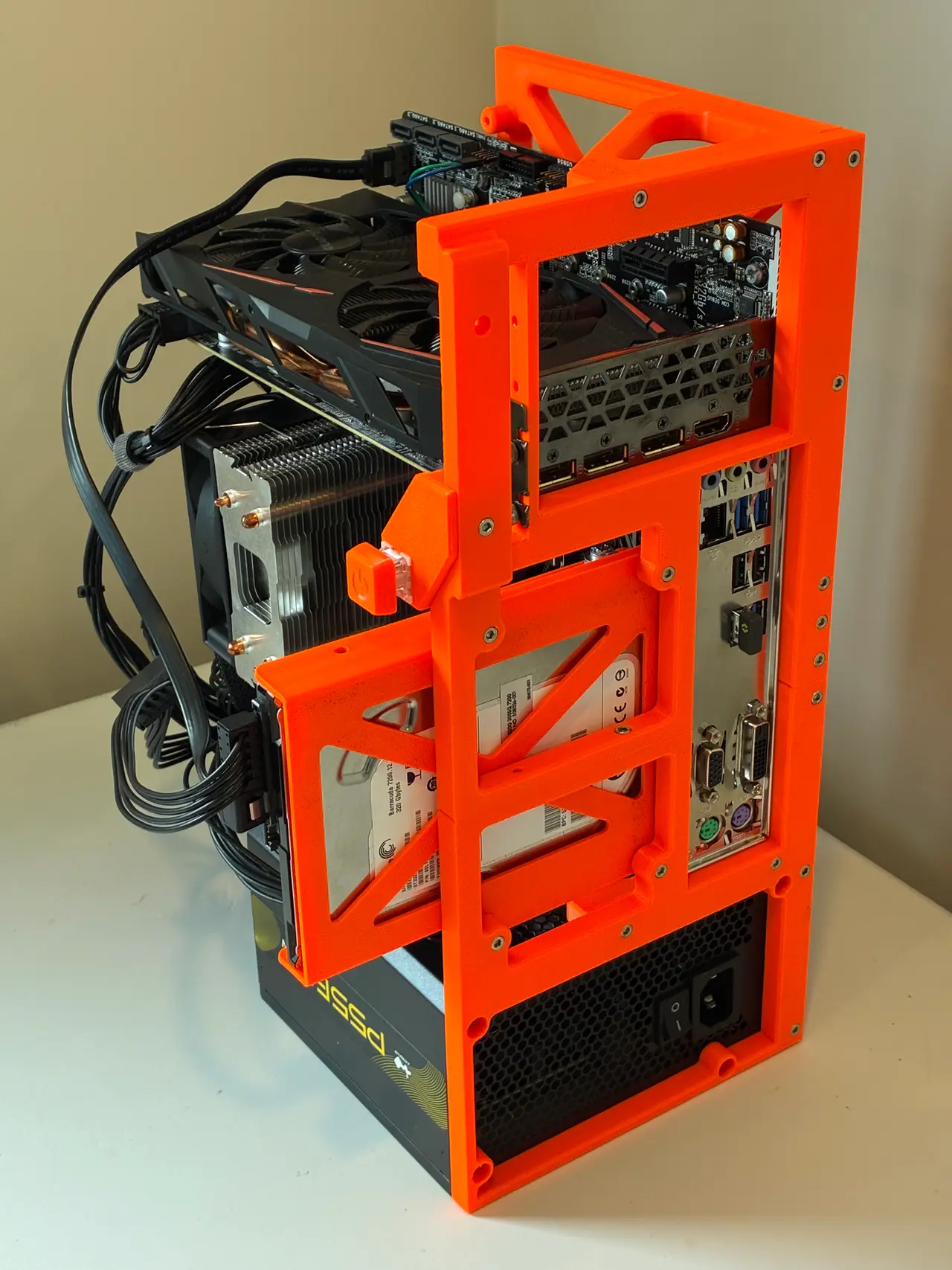

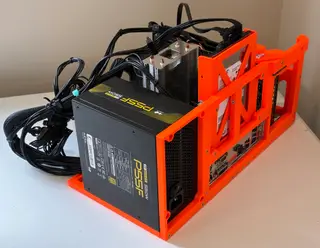

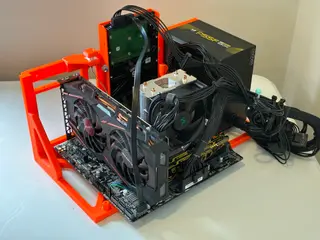

A versatile PC Rack for mATX/ITX Motherboards with ATX PSU - it can be positioned flat or vertically!
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Zrjunz1.
Archivos (3)
- Categoría
- Tecnología
- Formatos
- 3MF, STL
- Descargas
- 22
- Publicado
Sobre este modelo
Purpose - I designed this rack as a cheap solution to test my components but I have found it held up so well I am using it semi-permanently for one of my PCs!
Print Settings - I recommend printing in PETG or PETG ESD, standard settings are fine but I used gyroid infill.
Screws Required - It is designed to bolt together with:
- 15x M3x12mm and,
- 10x M3x16mm screws
- Alternatively you can just use 25x M3x16mm only
- Note you could substitute for other lengths but just make sure there is enough threads engaging for strength
You might also need: - 4x PSU bolts and,
- 4-8x bolts to fasten the mobo to the frame and,
- 1-4x bolts for PCIe cards or GPU

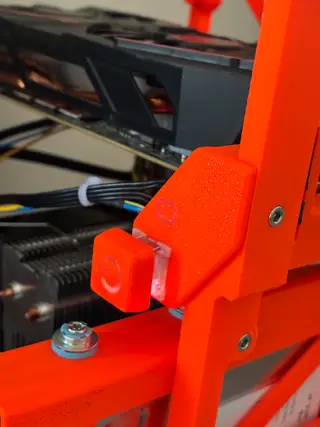

Mechanical Keyboard Switch Power Button - I have included a small attachment to fit a mechanical keyboard switch if you wish to use it
- There is a power button keycap with translucent PETG power logo to allow light through the keycap
- You can add a 5mm LED to the switch holder and wire it to your mobo
Warning! Do not overtighten screws.
Descripción original del autor, publicada en Printables.
