Vacuum Hose Adapter for Bissell Vacuum
por JohnOCFII en Printables

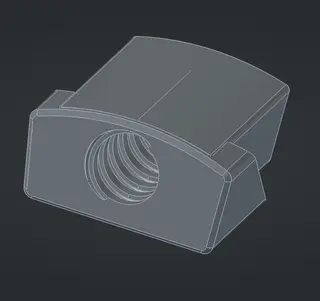

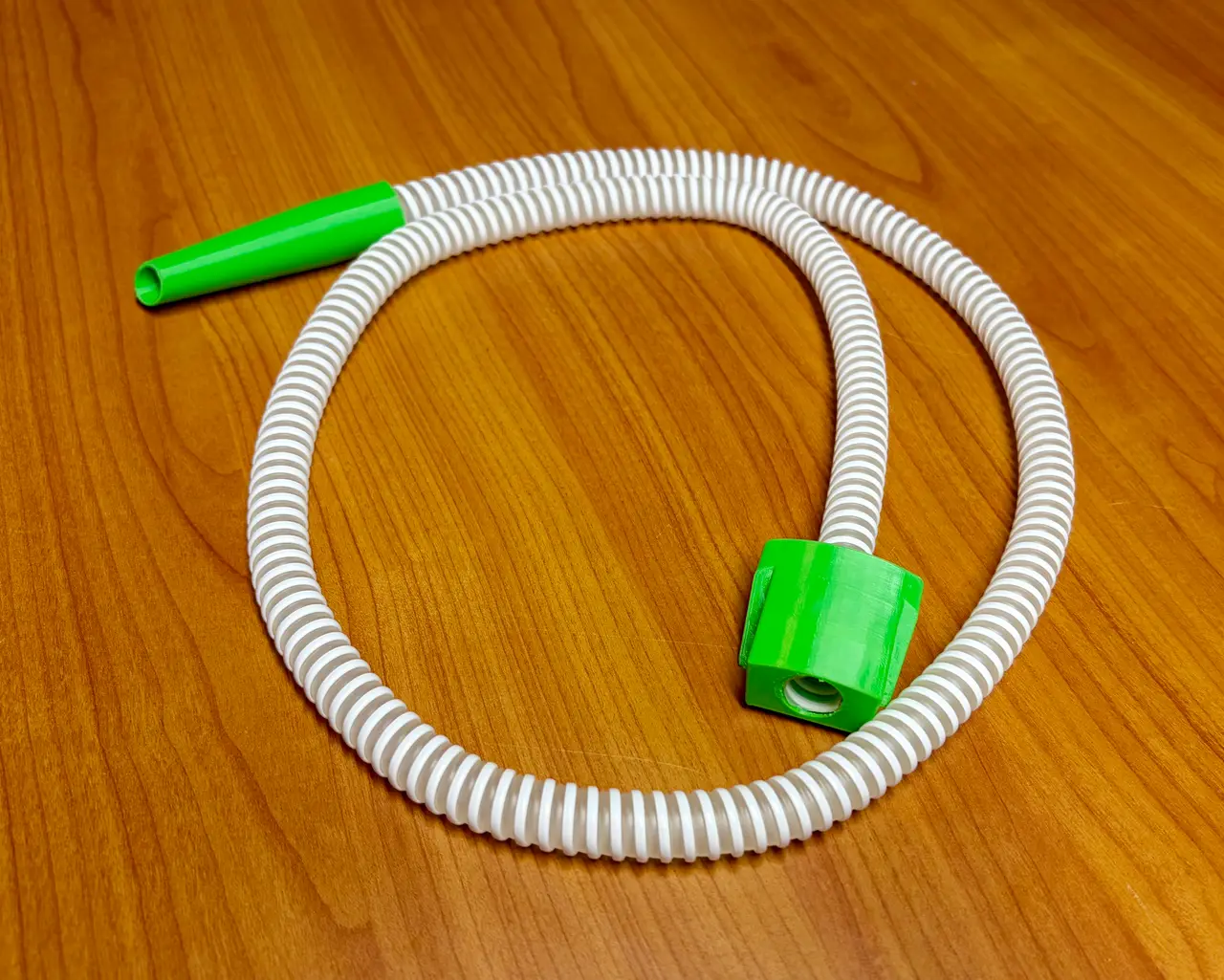

Two-piece adapter to be used with 15mm CPAP hose to create vacuum adapter for to access small places.
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a JohnOCFII.
Archivos (4)
- Categoría
- Hogar
- Formatos
- STL, FCSTD
- Descargas
- 0
- Publicado
Sobre este modelo

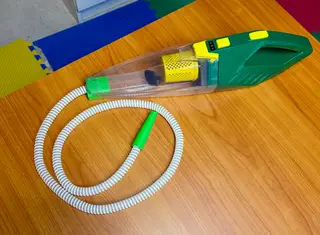

The original idea was to create an adapter to allow me to empty the CORE One INDX filament poop bucket easily. It works great for that, but can also be used around the house to clean up tight spaces.

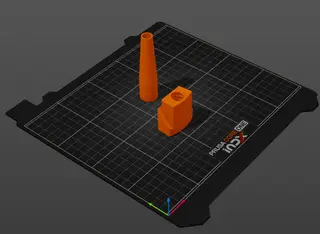

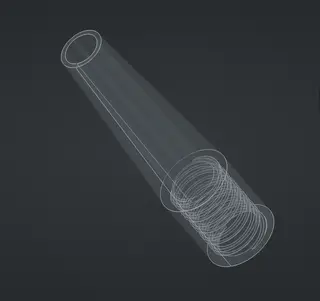

Print at 0.10 layer height to allow the internal threads to be created with enough resolution. I printed in 95A TPU. Could also be done in other filaments. Print as shown in the image of a build plate, with the nozzle standing upright, and the thicker part of the adapter piece on the print surface. I used a brim on the nozzle, but no brim or supports on the adapter piece. Created in FreeCAD. FreeCAD files included.
Descripción original del autor, publicada en Printables.
