V3 Series - Vortex Spiral

The Design After something new? Here's the Vortex Spiral

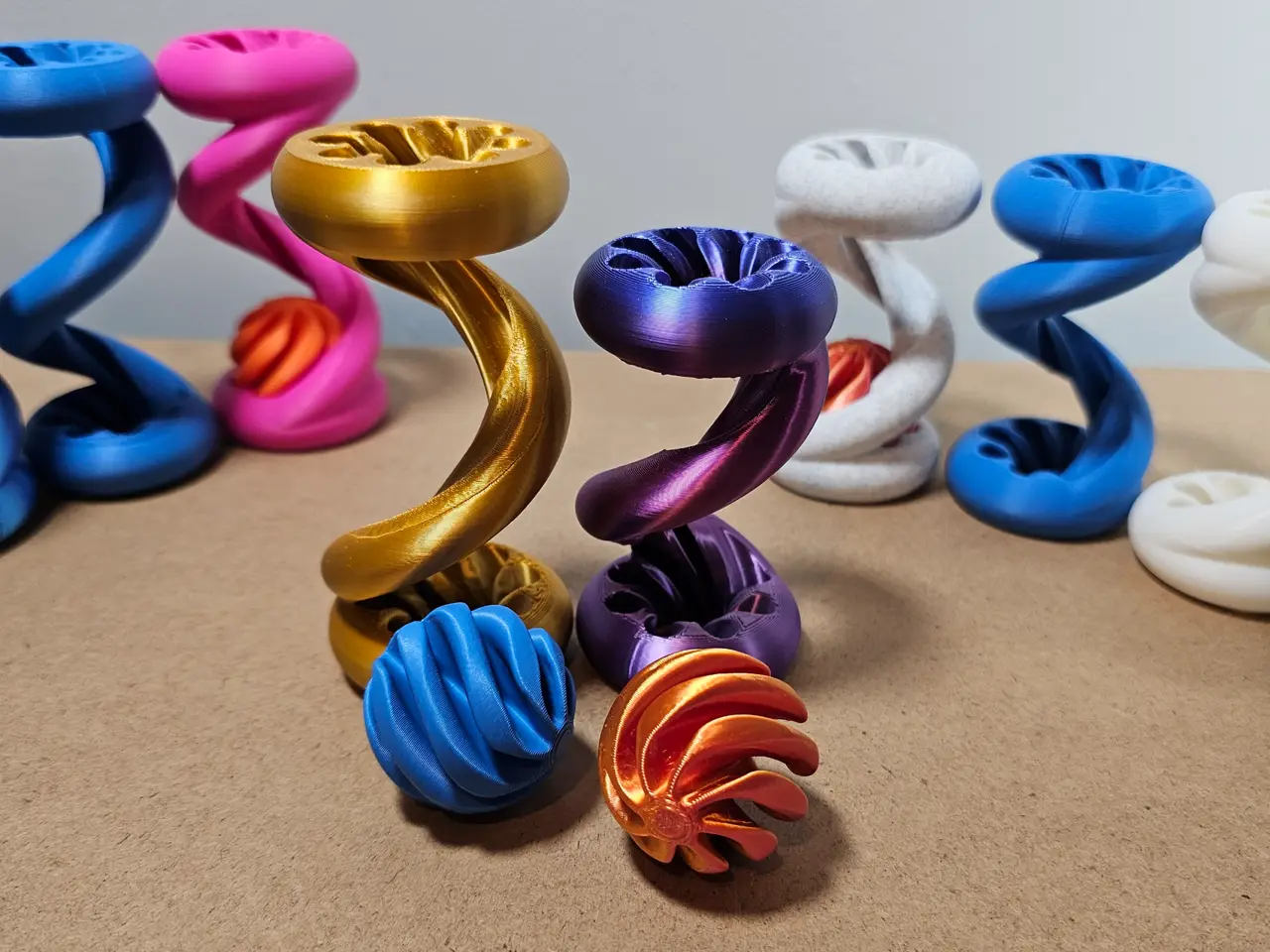

Compatible with the rest of the V3 Series, this design features a single spiral

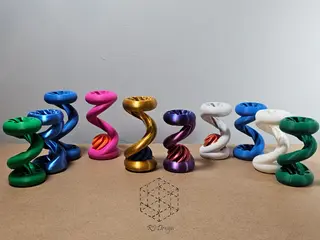

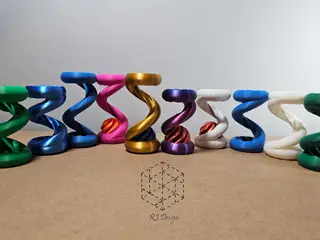

There's two variants, a slightly taller (100mm / 4 inches) and slightly shorter version (83mm / 3 inches).

Let me know if you experience any issues.

If you enjoy this print consider giving it a boost (It'd really help me out!)

Boost MeNever Needed, Always Appreciated! Printing

The setting in the print profile have been tested extensively to give the best result. However the underside of the spiral may still need to be cleaned up and smoothed slightly

I like pushing designs to what the printers are capable of. If your having issues, let me know i will try and help.

The easiest was to do this is to run another inner part from the same series (with a flat base)

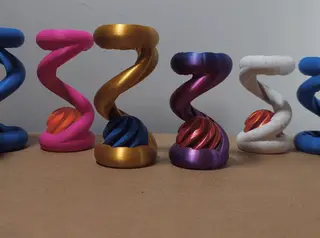

The Ball prints over a disc - this allows it to float, the disc is no needed.

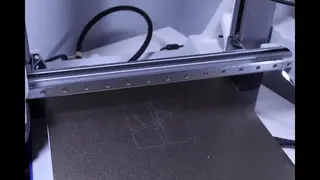

Once printed let the build plate cool before trying to remove.
