V-ship

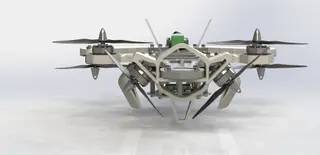

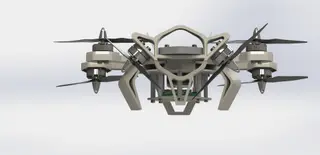

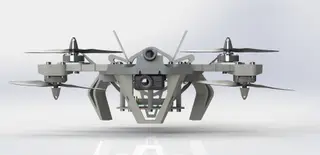

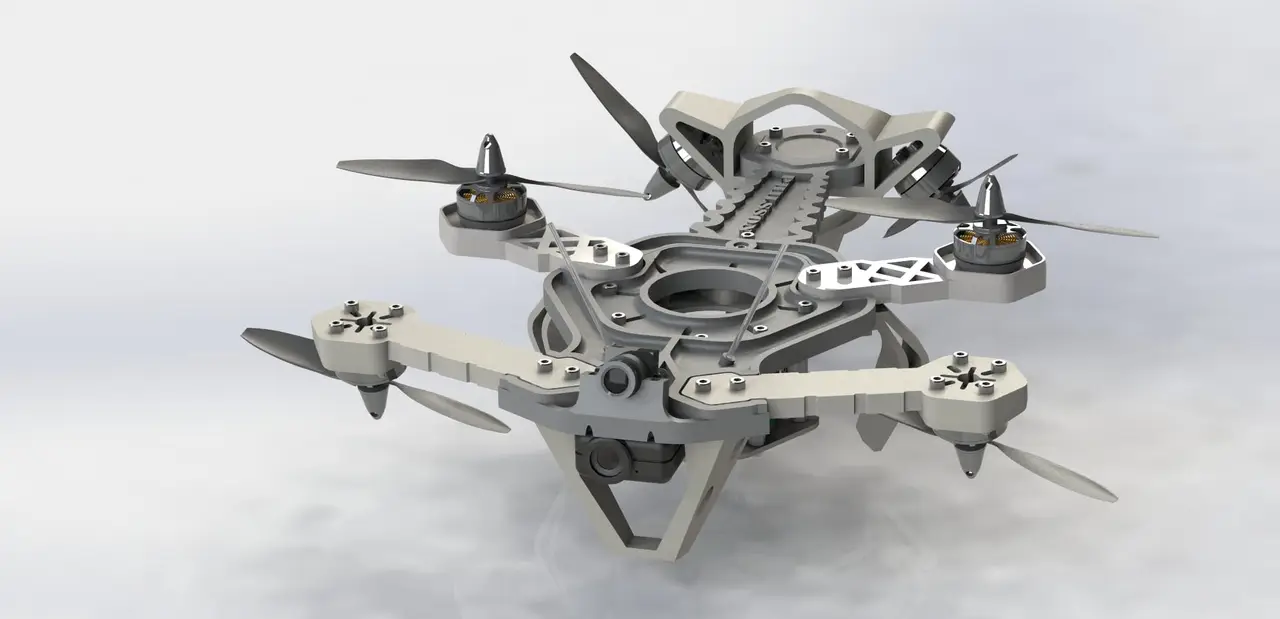

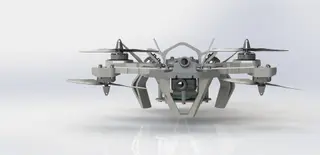

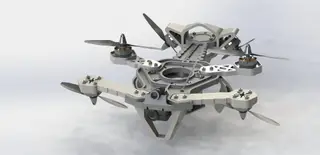

I present to you the V-ship. My own design with many cool features in mind. The front motors are pushers which are tilted slightly forward for better thrust. The back motors are the known V-tail design and the mid motors just over CG are to be connected in parallel with the front motors and rotate the same way. It should be controlled with the normal hexacopter configuration and higher pitch propellers on the back. There is a mount for a fatshark (or other ) CMOS or CCD sensor and for a strap holding a Mobius below. Space for FPV system is left below the tail and above is for placement of the battery yet to be printed and built As of march 29 Now all files are back up. Sorry to everyone they where not available, I made a mistake. Feel free to print! "platta v2" has bigger antenna wholes and a little larger support. Also improved the easiness of print around the camera mount. As of march 15 bak v2. There was an access problem with the rear getting the screws in place. This update should fix that problem.
