USB Cable Organizer
por kanata en Thingiverse

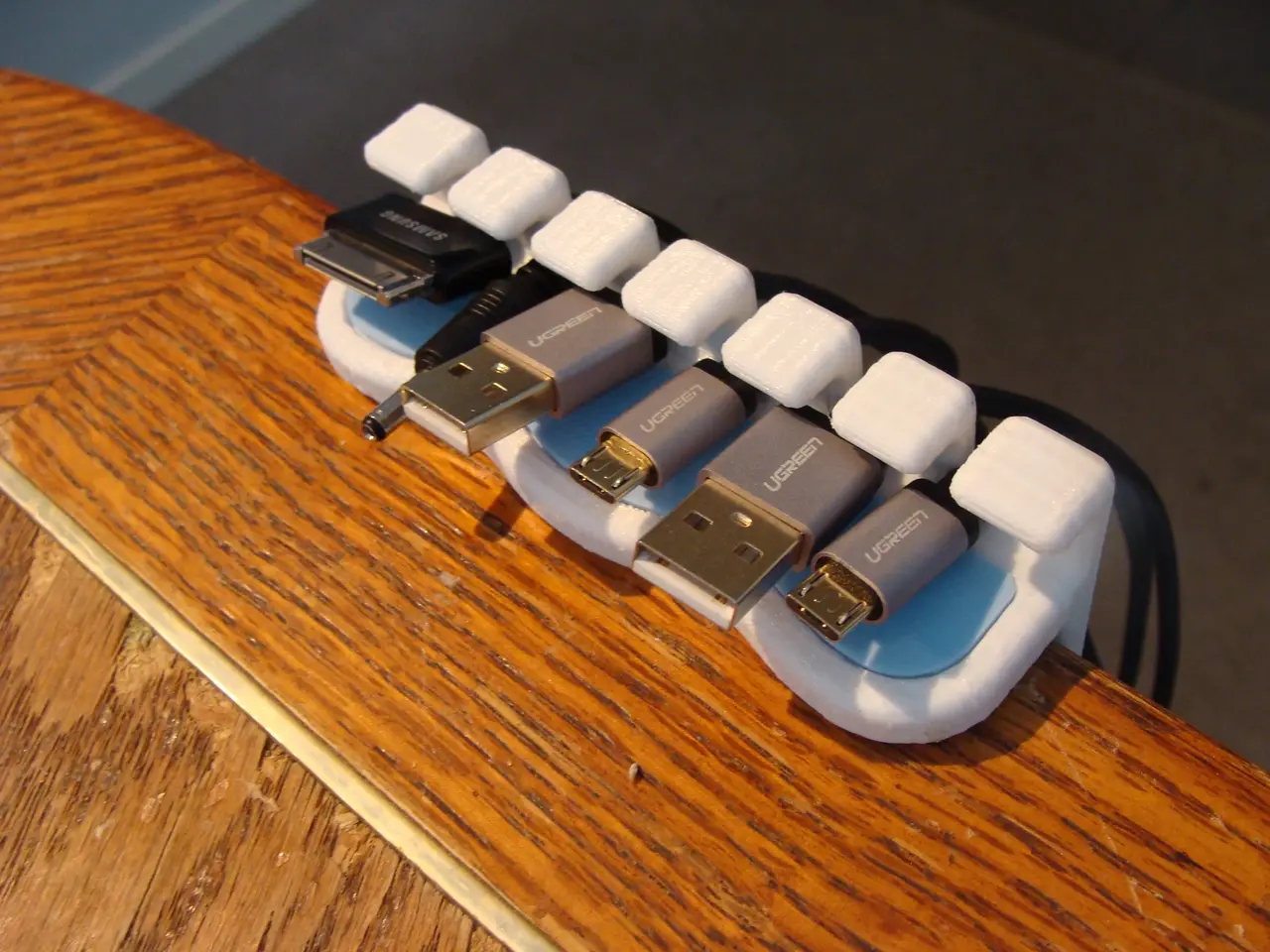

USB Cable Organizer I designed this USB cable organizer so that I would be able to move it if I necessary. I have included 4 different versions, a straight and a curved version with a snap-in insert and also a straight and a curved version without an insert This was the first time I tried to design.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a kanata.
Archivos (23)
- Clamp_Screw_v12.stl STL · 6,9 MB
- Cable_Holder_Standard_Insert.stl STL · 268 KB
- Curved_Cable_holder_Insert.stl STL · 291 KB
- Standsard_Cable_Holder.stl STL · 3,6 MB
- Curved_Cable_Holder_Main_Body.stl STL · 3,8 MB
- Cable_holder_Standard_Inert__Main_Body.stl STL · 3,5 MB
- Curved_Standard_Main_Body.stl STL · 3,6 MB
- Clamp_Screw_v12.stl STL · 6,9 MB
- Longer_Clamp_Screw_v2.stl STL · 6,8 MB
- 26_mm_Standard_Cable_Holder_Body_v2.stl STL · 3,7 MB
- 30_mm_Sandard_Cable_Holder.stl STL · 3,3 MB
- 52_mm_Standard_Cable_Holder.stl STL · 3,1 MB
- No_Bottom_Vesion_Standard_Cable_Holder_Body_v3.stl STL · 2,2 MB
- 22_mm_Standard_Cable_Holder_Body_v2.stl STL · 3,4 MB
- Wider__slots_5_mm_22_mm_Standard_Cable_Holder_Body_v2.stl STL · 3,4 MB
- 147_mm_Standard_Cable_Holder_Body_v1.stl STL · 2,6 MB
- 97_mm_Standard_Cable_Holder_Body_v3.stl STL · 2,7 MB
- 40_mm_Standard_Cable_Holder.stl STL · 1,6 MB
- 36_mm_Standard_cable_holder.stl STL · 3,6 MB
- Wider__slots_5_mm_36_mm_Standard_Cable_Holder_Body_v2.stl STL · 3,3 MB
- 17_mm_Standard_Cable_Holder_Body_v2.stl STL · 3,7 MB
- Longer_version_Screwed_Standard_Cable_Holder_Body_v2.stl STL · 1,3 MB
- Screwed_Standard_Cable_Holder_Body_v2.stl STL · 1,2 MB
- Categoría
- Organización
- Formatos
- STL
- Descargas
- 52,294
- Publicado
Sobre este modelo

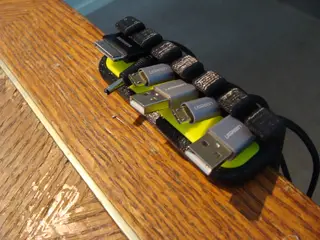

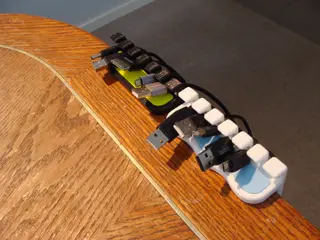

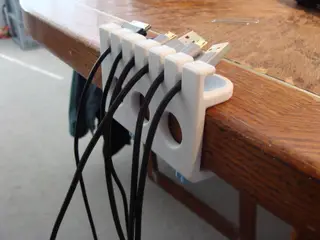

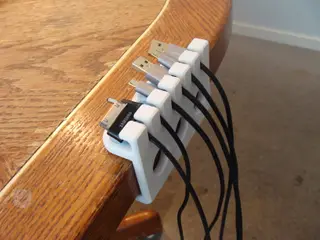

USB Cable Organizer I designed this USB cable organizer so that I would be able to move it if I necessary. I have included 4 different versions, a straight and a curved version with a snap-in insert and also a straight and a curved version without an insert This was the first time I tried to design an snap together Thing, and it turned out fairly well. Please let me know if you have any problems. I designed this for a standard (1 1/2") (38 mm) thick table. If your table is a different thickness, message me with the size, and I will try to help you out. Also if you have a different wire diameter I will modify it if possible. EDIT I have included a longer clamp screw to accommodate for a thinner table. EDIT January 17 2019 I added a 26 mm standard version that will fit a 1 inch table. EDIT February 08 2019 Added a 30 mm version at the request of a member. EDIT February 10 2019 Added a 52 mm version at the request of a member. EDIT May 13, 2019 2019 Added a no bottom version at the request of a member. You can use two-way adhesive tape to secure it. EDIT July 09 2019 Added a 22 mm version at the request of a member. EDIT August 22 2019 Added a 22 mm version with wider slots at the request of a member EDIT October 02 2019 Added a 147 mm version at the request of a member. EDIT October 08 2019 Added a 97 mm version at the request of a member. EDIT Nov 17 2019 Added a 40 mm version at the request of a member. EDIT Jan !6 2020 Added a 36 mm version at the request of a member EDIT Feb 3 2020 Added a 36 mm version with wider slots at the request of a member. EDIT May 17 2020 Added a 17 mm version at the request of a member. EDIT August 2020 Added a longer version that can be screwed on along with a shorter version that can be screwed on. https://www.thingiverse.com/thing:2892387
Descripción original del autor, publicada en Thingiverse.
