Universal Spool - Twist and Lock

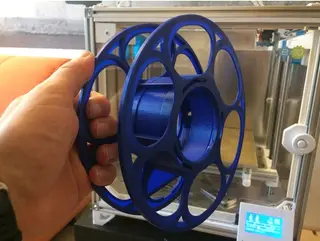

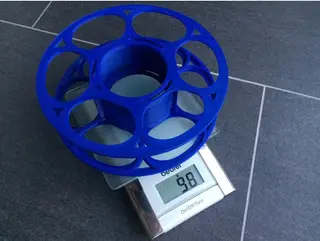

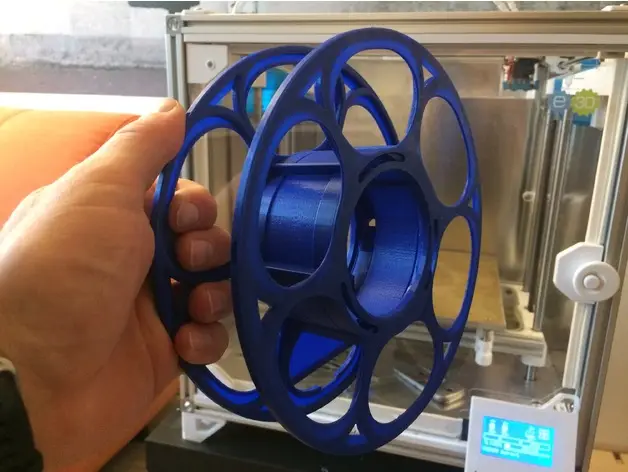

This MasterSpool Design is inspired by Richard Horne's masterspool idea to avoid waste and reduce shipping weight. My intention was to reduce the amount of filament and printing time, needed to build this spool. With this in mind I changed the threated locking mechanism to sort of a bayonet catch. I ended up with this lightweight but rigid "Universalspool Twist and Lock".

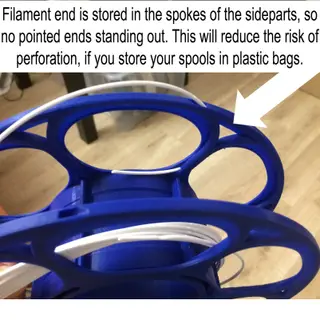

Every spool consists of 3 parts

- the hub

- two side parts (same file printed 2 times)

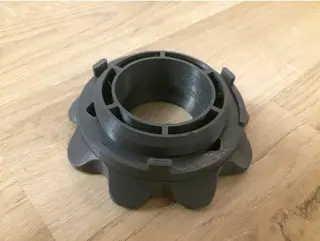

futhermore you will need an opening tool. One tool should serve for all your spools

Depending on the manufacturer you will need a certain hub size. Choose the parts you need from the table below. In order to cover the large bandwidth of different coils on the market, I had to develop 2 types:

- Type-s is for filament coils with small inner diameter, in a range from 76mm to 92mm

- Type-l is intended coils with large inner diameter (98mm to 130mm)

All parts of the same type are compatible with each other.

For assembly and disassembly instructions take a look at this video:

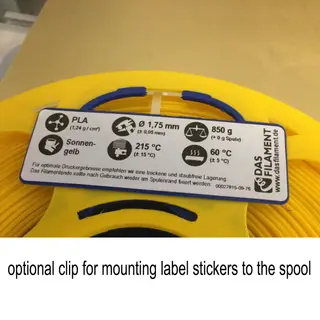

To attach labeling stickers use the "ClipOn" (only works with side parts labeled as l-side-197-xx)

How to read hub labelling: t - hub - i - w

- t (Type) all parts of the same type are interchangeable with each other. There are 2 different types: s (small) and l (large) - w (width of the refill coil) - i (refill coil inner diameter)

Available sizes of hubs:

s-type

- s-hub-076-76 - printable without support - brand unkown

- s-hub-076-58 - printable without support - suitable for 3DSolutech, filaments.ca EconoFil

- s-hub-092-56 - printable without support - suitable for INLAND, ESUN 1kg Respool

l-type

- l-hub-130-27 - support needed - suitable for sample spools

- l-hub-112-61 - printable without support - suitable for smartie filaments

- l-hub-110-61 - printable without support - brand unknown

- l-hub-102-46 - printable without support - Masterspool standard messurements, suitable for 3d-printworks elefilament (750gr), rigid.ink Masterspool Refill

- l-hub-102-45 - printable without support - suitable for dasfilament.de (850gr refill), procatec.de (800gr refill)

- l-hub-102-27 - printable without support - sample spools

- l-hub-100-62 - printable without support - suitable for Filastruder, veracity refill (750gr and 1kg)

- l-hub-098-57 - printable without support - suitable for KVP Filament Koil (750gr and 1kg), other SlantSpool compatible coils

Feel free to transmit further specs of other filament refills to complete this table!

how to read side part labelling: t - side - o - i

- t (Type) you need the same type as choosen for the hub - i (side part inner hole diameter should match the mounting options of your printer) - o (max. outer diameter)
