Universal Spool Holder, Fully 3D Printed

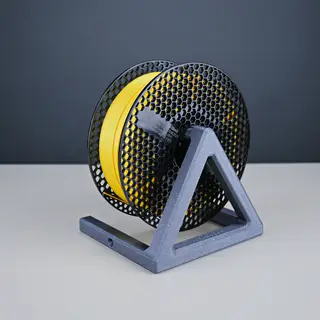

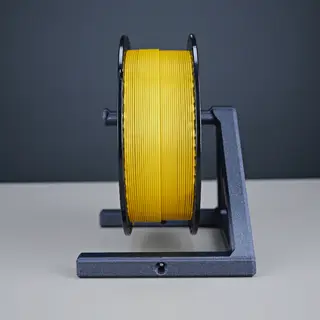

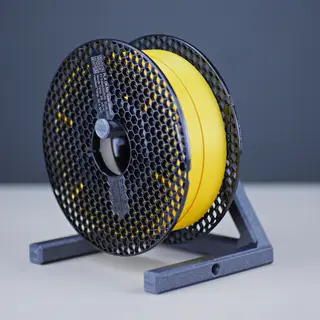

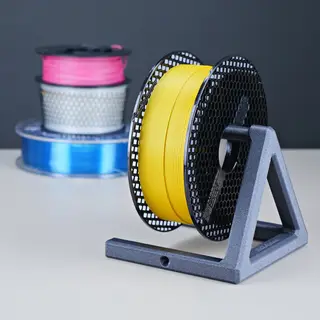

Fits ANY spool. Up to 1Kg as is (see photos), scale up for larger spools (see "Larger spools" section).
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Revisa las condicioneslicense
El autor usa su propia licencia. Revisa sus condiciones en la página original antes de compartir, modificar o vender.
Al descargar aceptas respetar la licencia y dar crédito a Mihai S.
Archivos (1)
- one piece spool holder.stl STL · 1,1 MB
- Categoría
- Para tu impresora
- Formatos
- STL
- Descargas
- 8,587
- Publicado
Sobre este modelo
Fits ANY spool. Up to 1Kg as is (see photos), scale up for larger spools (see "Larger spools" section).

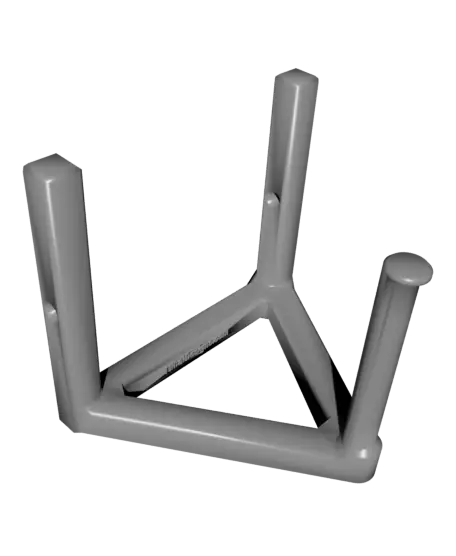

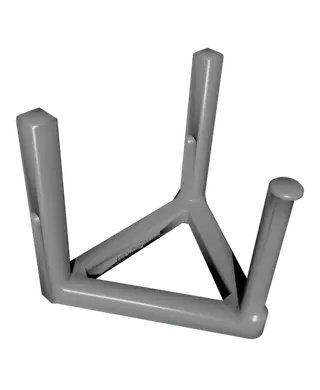

Can be printed on a Mini 3D printer. Prints in one piece, pre-oriented, zero assembly.
Option to pass the filament through a guiding hole.
Print settings 3-4 perimeters 20-30% infill Material: PLA is more rigid with less friction, while PETG is less brittle.
Larger spools Scale up depending on printer and spool size: For 2-3Kg spools (up to 300mm diameter) scale up to 128%. If it won't fit your printer, try scaling it less on the Y axis (using non-uniform scaling). Scaling Y to 125% will fit an Ender3, while keeping X and Z scaled at 128%.
I prefer storing all filament in dry boxes, but this is my next best option.
No supports required. Support free. Supportless.
Check my other projects at mihaidesigns.com (https://mihaidesigns.com/).
