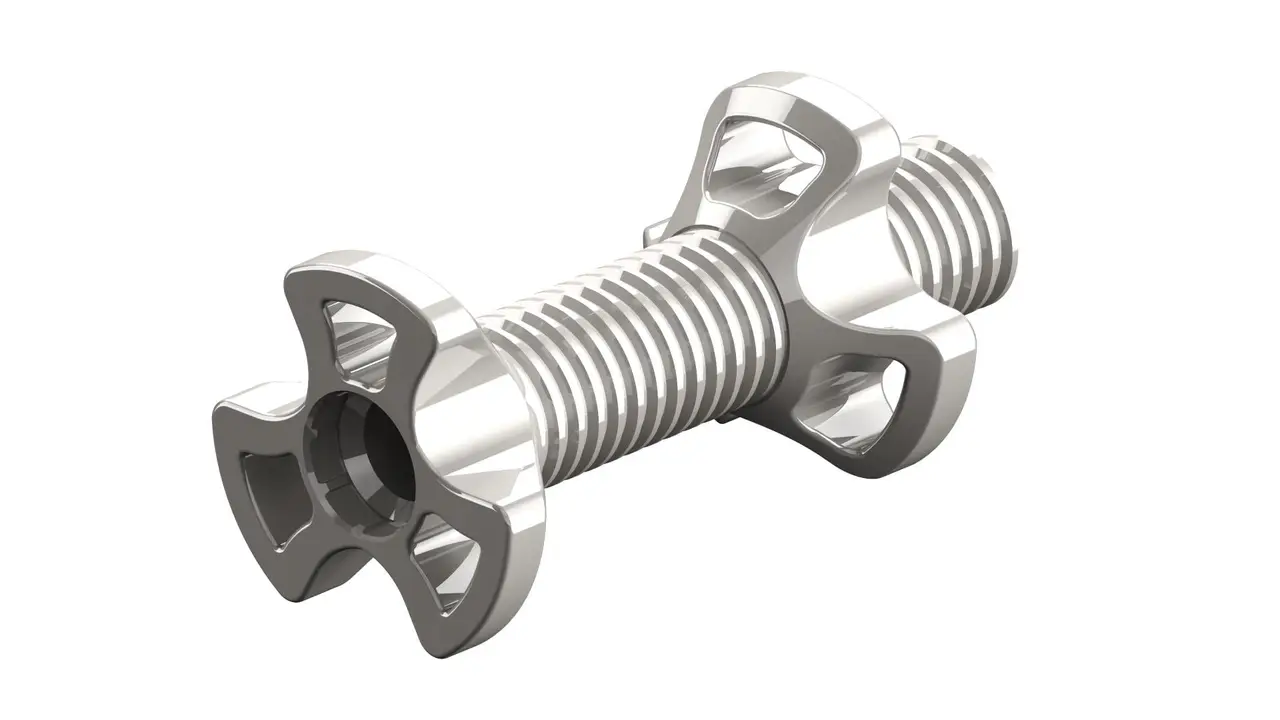

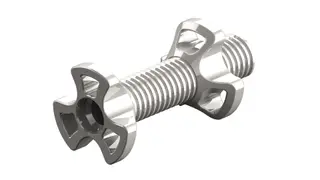

Universal Filament Spool Holder
por Alexander Schröter en Thingiverse
Hi, Find the latest version here. a friend of mine made this universal filament holder. You can mount filament spools in a wide range. For maximum rated dimensions see attached picture. I tried up to 2.6kg material spools without an issue. For smooth unwinding it uses ball bearings. What you need...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a Alexander Schröter.
Archivos (8)
- Categoría
- Para tu impresora
- Formatos
- STL, STP
- Descargas
- 68,209
- Publicado
Sobre este modelo

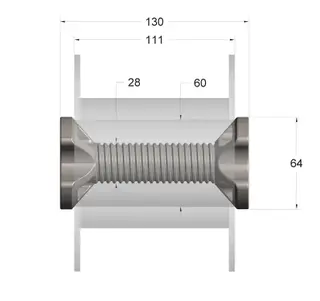

Hi, Find the latest version here. a friend of mine made this universal filament holder. You can mount filament spools in a wide range. For maximum rated dimensions see attached picture. I tried up to 2.6kg material spools without an issue. For smooth unwinding it uses ball bearings. What you need: - M8 threaded rod - 2x M8 nut - 2x skate board ball bearing 608ZZ- 8mm (core) - 22mm (outer diameter) - 7mm (width)

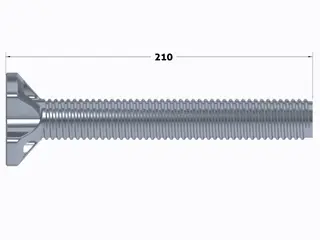

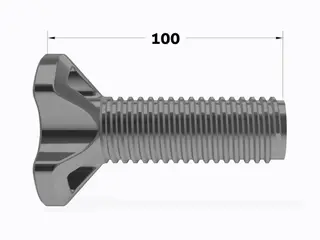

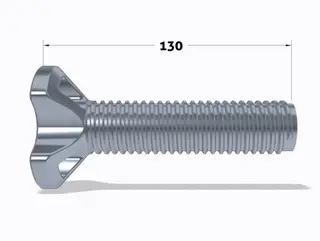

If you are looking for a mount for 20x20 aluminium profile http://www.thingiverse.com/thing:2122402 or a clip on mount for Anet A8 http://www.thingiverse.com/thing:2068469 Update 08/12/2020: added long and short variant with improved self centering function
Descripción original del autor, publicada en Thingiverse.
