Universal Filament Filter and Lubricator

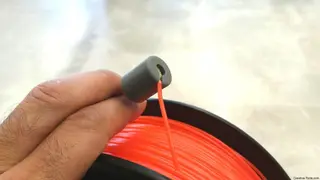

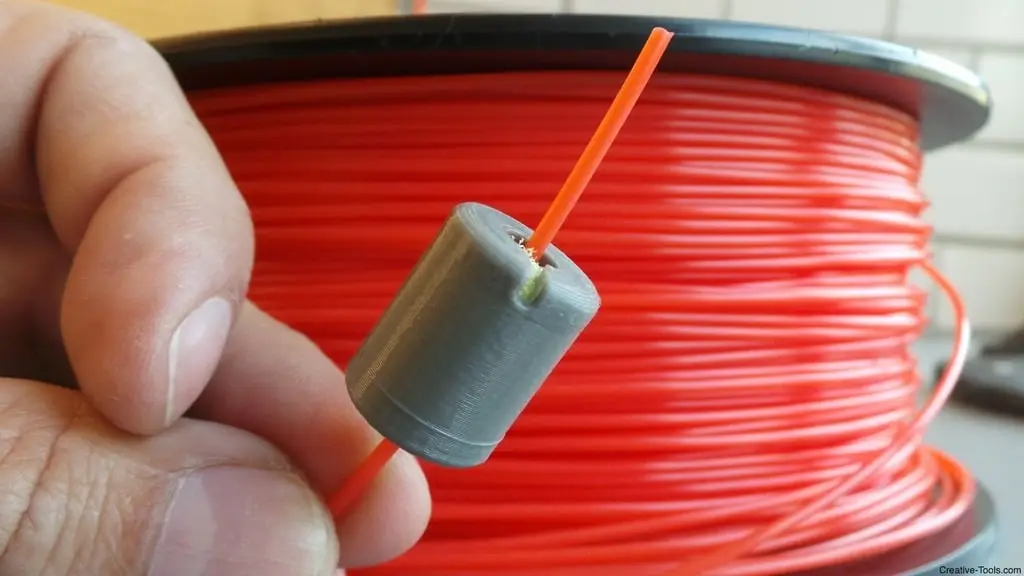

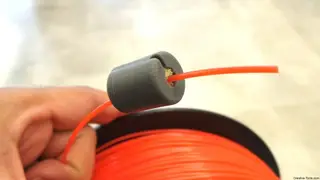

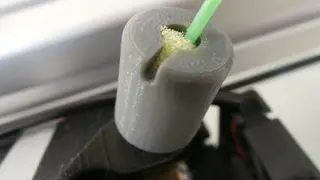

Creative Tools Creative Tools supplies 3D printer and 3D scanner products incl filaments, accessories and support and also 3D software for leading CAD, modeling, animation, and rendering. This small easy-to-print device can protect your filament-based 3D printer from two common issues - dust and friction. A piece of sponge wipes the filament clean from any dust particles and prevents them clogging the extruder. By dropping a few drops of ordinary household mineral oil on the sponge, the filament passing through gets lubricated, thus relieving the extruder motor from strain. Lubrication is especially useful if the filament needs to travel through long tubes before it enters the extruder. But it also helps to reduce the friction inside the extruder below the drive-wheel, where the filament is in compression on its way down to the hot-end. VIDEO: https://youtu.be/rMDEsrgzC9M Related thing - http://www.thingiverse.com/thing:52203

2014-10-27 - Update: We uploaded a new version of the filament filter. It has a smaller exit hole for the filament which prevents the PTFE filament guide tube entering the filter. (new file: Universal filament filter v02 (smaller exit hole).STL) By Creative Tools Home - YouTube - Things - #3DBenchy - Twitter - Facebook - Instructables - Instagram - Pinterest - Flickr - LinkedIn
