universal chisel router plane

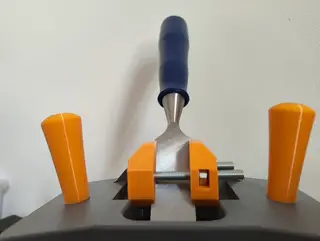

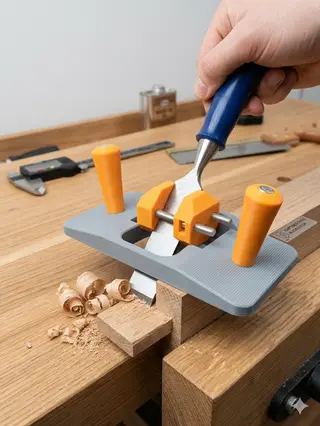

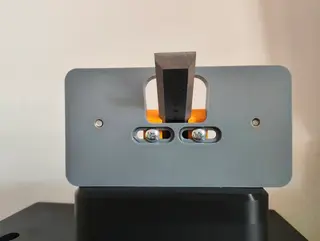

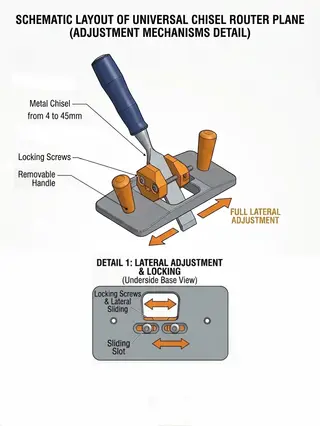

Universal Chisel Router Plane: Transform Your Existing Tools This Universal Chisel Router Plane is the perfect solution for woodworkers who want the precision of a router plane without the cost or bulk of a dedicated tool. Designed for those with limited workshop space or anyone looking to maximize their existing toolkit, this 3D-printed accessory turns your standard chisels into a versatile woodworking plane. Key Features Universal Compatibility: Use the chisels you already own, with support for widths ranging from 4mm to 45mm. Asymmetrical Adjustment: The clamping jaws can slide laterally, allowing you to offset the chisel and increase the support surface on either the left or right side for better stability on tricky workpieces. Deep Reach: Achieve significant working depth, limited only by the length of the chisel you choose to use. Future-Proof Modular Design: The removable jaws allow for future upgrades, such as swapping in new jaws with different bed angles to suit specific woodworking tasks. Hardware Requirements To assemble this tool, you will need the following hardware: Handles: 2x M6x55/60 bolts/screws. Inserts: 2x M6 heat-set threaded inserts. Sliding Mechanism (Underside): 2x M5 nuts and 2x M5 screws (10mm to 35mm length, non-countersunk head). Chisel Clamping: 2x M6 nuts and 2x M6 screws (length > 60mm to accommodate wide chisels, non-countersunk head).
