Under-Desk Laptop Storage/Docking Brackets
por AK Tanner en MyMiniFactory
This is a set of brackets designed to hold a laptop under a desk. The rear brackets have more clearance to allow for a USB C connection for a docking system. The port needs to have at least 15mm, 0.59in, from the backside of the laptop for the bracket to work without modification.
MyMiniFactory entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a AK Tanner.
Archivos (5)
- Laptop Shelf Brackets Complete Set.stl STL
- Laptop Shelf Front Bracket Mirrored.stl STL
- Laptop Shelf Front Bracket.stl STL
- Laptop Shelf Rear Bracket Mirrored.stl STL
- Laptop Shelf Rear Bracket.stl STL
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 331
- Publicado
Sobre este modelo

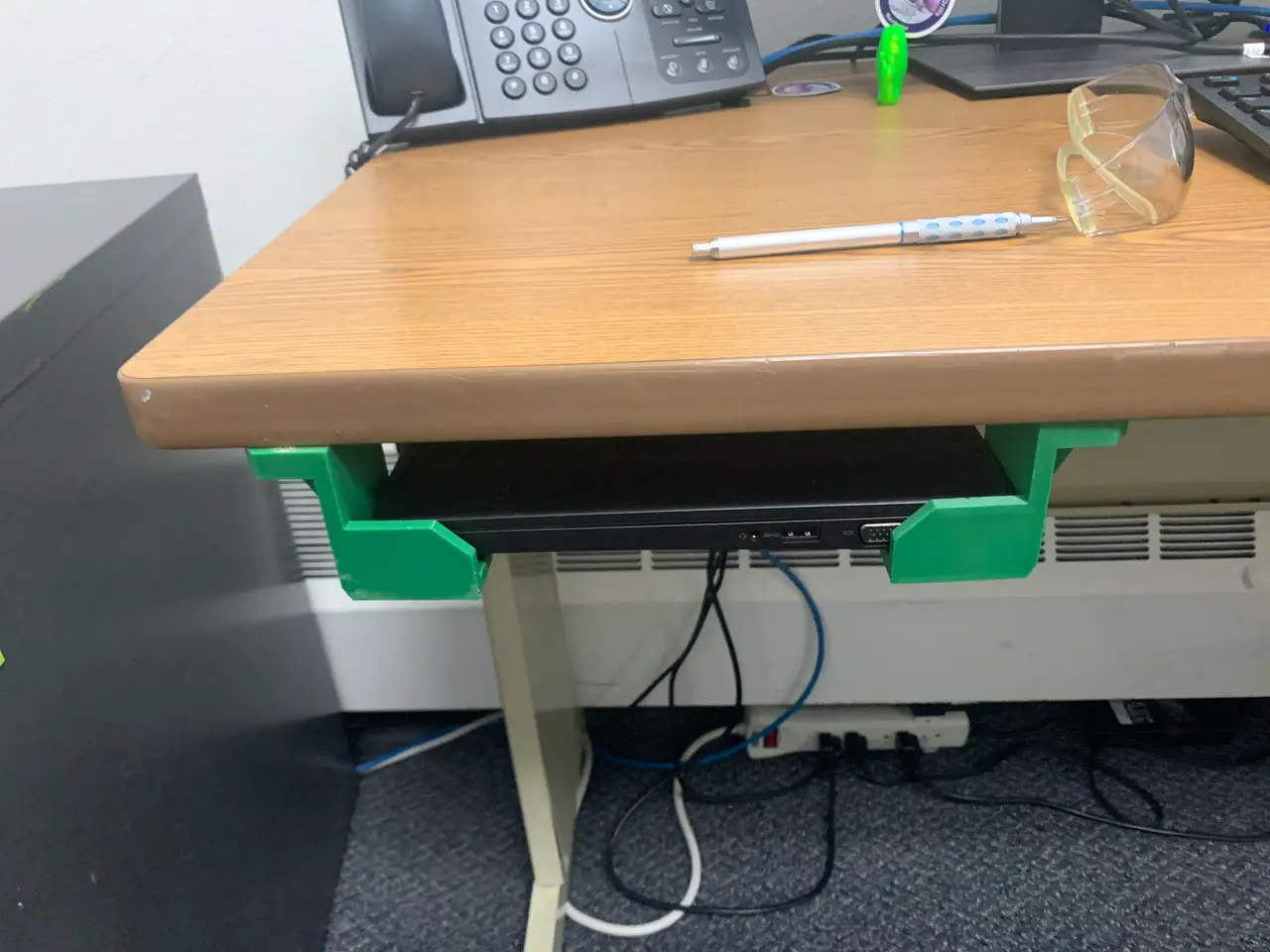

This is a set of brackets designed to hold a laptop under a desk. The rear brackets have more clearance to allow for a USB C connection for a docking system. The port needs to have at least 15mm, 0.59in, from the backside of the laptop for the bracket to work without modification.
These brackets are designed for computers that are up to 25mm, 1 inch, thick.
The brackets are designed for #8 size screws. Here is a link to the screws used:
https://www.homedepot.com/p/Teks-8-x-3-4-in-Zinc-Plated-Steel-Philips-Drill-Truss-Head-Point-Lath-Screws-200-Pack-21524/100175766
The brackets will work with screws that have an OD of 4mm, 0.157in, with a max head diameter of 12mm, 0.472 in.
Descripción original del autor, publicada en MyMiniFactory.
