Under Desk Drawer

Alright this project is growing.. needs a new description. As a thank you to the success and support that this project has brought, I am releasing the F3D files to let it grow naturally through the community. I can't wait to see what you do with it! Please remember to attribute or upload as remixes so others can find it :) Also, my apologies to anyone who printed the early versions that lacked the fillet in the top of the handle. It was an issue that was not caught early on. There is now a fix posted by Bryan_F on Thingiverse for anyone who had issues with the delicate handles. I will also be posting a first party fix soon. - I recommend printing the drawers laying bottom down with tree supports, or on their back. Either way should work, but bottom down will use less support material. - To free the pins in the back after printing, place your fingers behind the pin and give it a few sharp taps with something solid, back of a screw driver worked for me. -The chassis print best on their back. You can fit everything onto one 250 cubed build plate as shown. If you are working with a printer with less than a 250 cubed plate, try the Slim Stack or the Split Body, they both will happily print on a machine as small as 200.

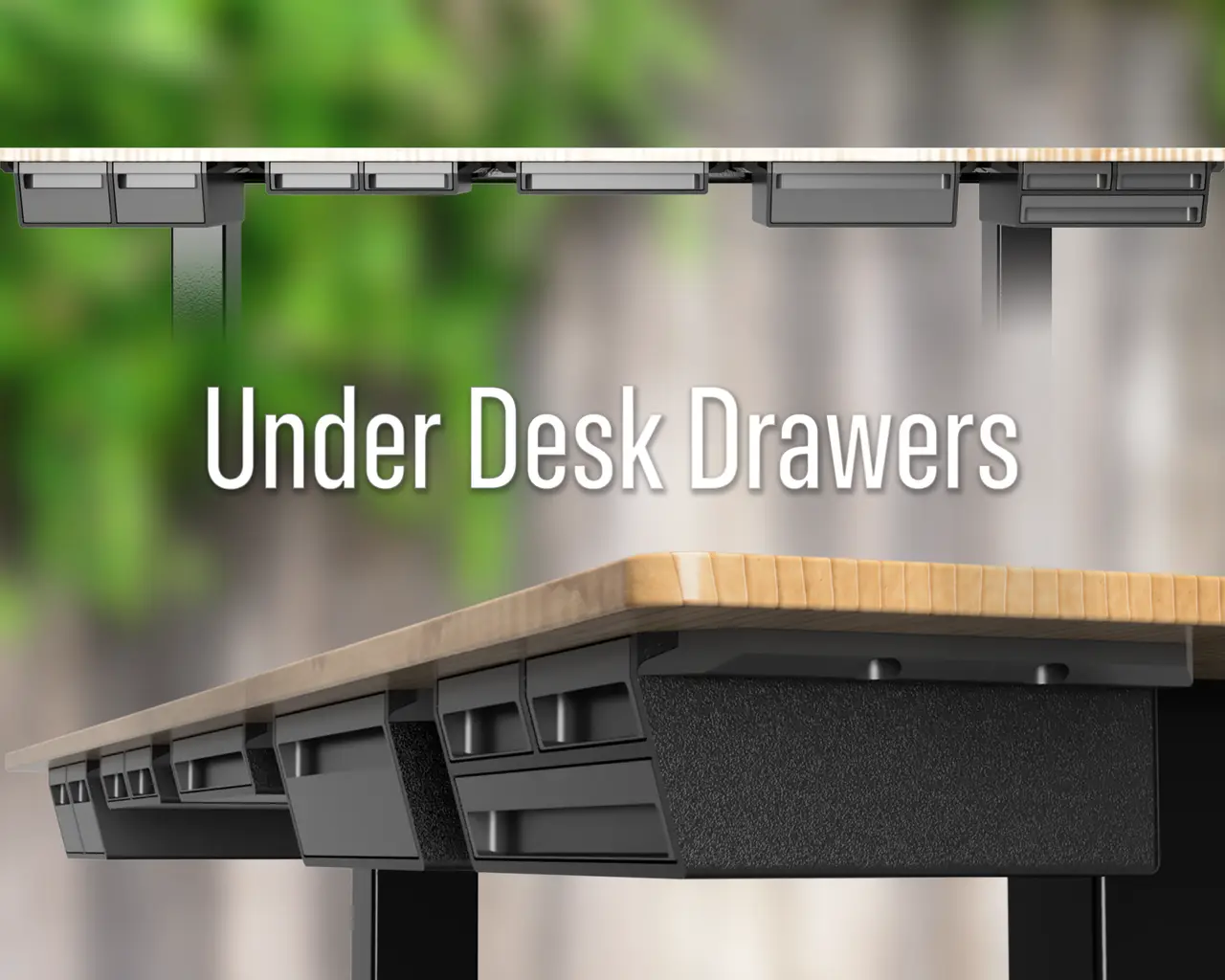

From left to right in the top of the photo, we have the - Big Double (Big Double file and print two Big Double Drawers) - Slim Double (Slim Double, print two Slim Double Drawers) - Slim Single (Slim Single file and Slim Single Drawer) - Big Single (Big Single file and Big Single Drawer) - Slim Triple (Slim Triple file, two Slim Double Drawers and one Slim Single Drawer)

Not shown is the Split Body, which for now is just the Slim Triple. Also the Slim Stack, which is two Slim Double drawers on top of each other. To assemble the Split, print the Split Chassis L & R, the Split Bottom Drawer L&R the Drawer Tie, and TWO of the Body Ties. I recommend using your favorite relatively thin glue to adhere everything together, then print two Slim Single drawers to fill in the top. I am working on a detailed PDF like my Club and Store models have for this project, to provide more detailed instructions on printing, running through settings and assembly. Its just taking a while, as the project grows so do the instructions. v1.1 01-08-2024; Chassis modified to be printed more reliably v1.15 01-10-2024; Drawer pulls modified to print with less support if in horizontal orientation and no support if in vertical orientation Buy me a coffee :) https://www.buymeacoffee.com/godsci Patreon:(project videos, commercial salable files, upcoming projects, requests) https://www.patreon.com/GodardScientific
