Ultrafast and economical stringing test — modelo 3D

Ultrafast and economical stringing test

por Sebastian en Thingiverse

There are already many calibration and test parts to get rid of the stringing of your printer, but this one is optimized so that you can print it quickly to achieve many iterations in a short period of time without wasting too much filament. If you see that there still is no improvement you can...

Licencia

Uso comercial permitido

CC0 — Dominio público

Puedes imprimirlo, modificarlo y venderlo sin pedir permiso ni dar crédito.

Al descargar aceptas respetar la licencia y dar crédito a Sebastian.

Archivos (1)
Categoría
Para tu impresora
Formatos
STL
Descargas
123,803
Publicado

Sobre este modelo

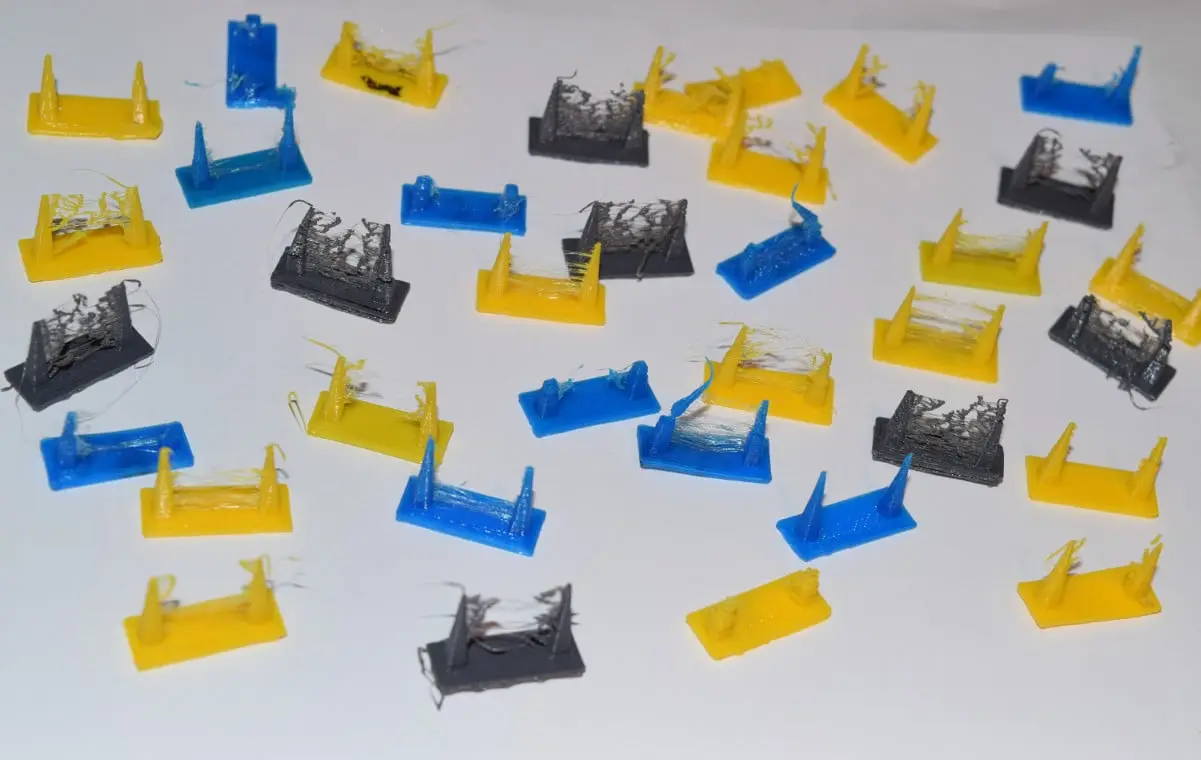

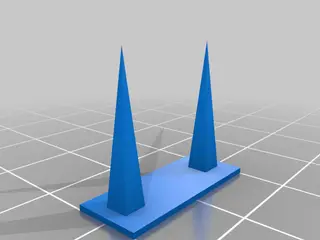

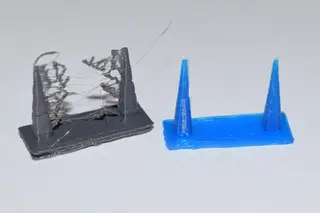

There are already many calibration and test parts to get rid of the stringing of your printer, but this one is optimized so that you can print it quickly to achieve many iterations in a short period of time without wasting too much filament. If you see that there still is no improvement you can stop the print and start a new one. It will be at the point again quickly where the two pyramids print, so you can observe the stringing behavior. The height of the base plate is only 0.7mm (3 small layers if you print with 0.3mm for the first layer and 0.2mm for the following layers). I measured a weight of 0.23g for a finished print of one of these in PLA. If tuning the retraction and temperature settings doesn't help, try drying your filament and make sure there is no overextrusion before you print another 20 of these things.

Descripción original del autor, publicada en Thingiverse.
