Ultra-Compact Case for ESP32-C3 SuperMini (step file)

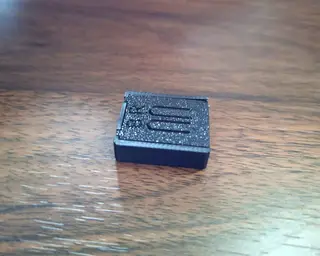

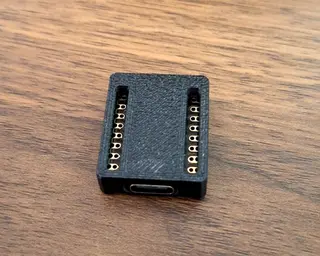

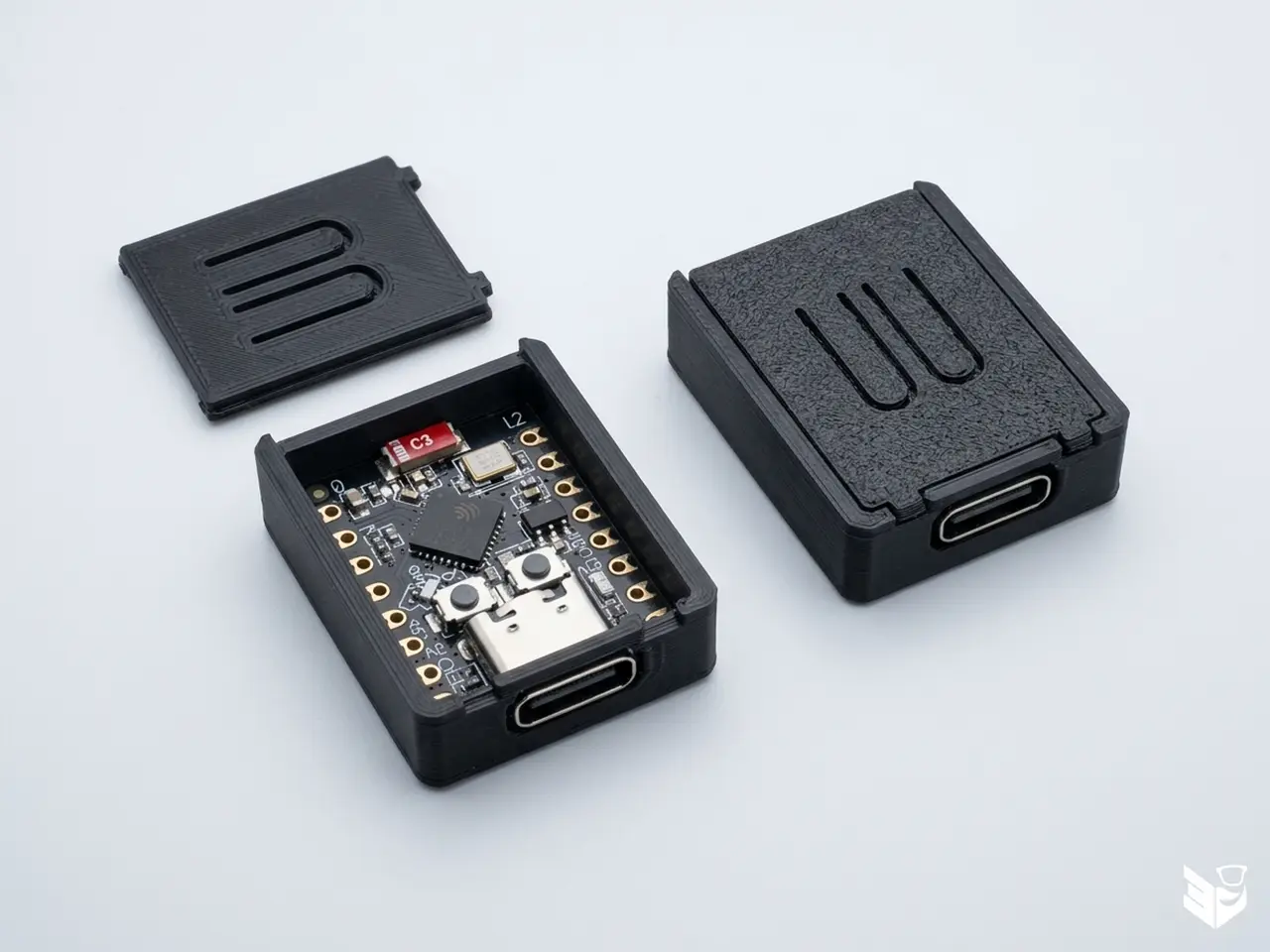

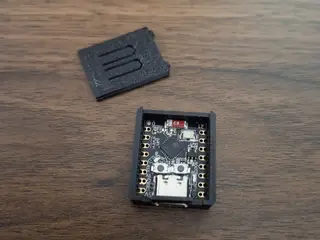

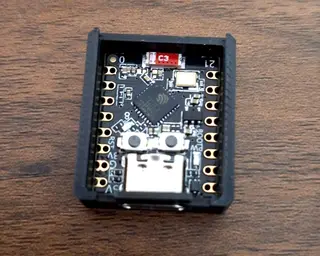

A minimal, precise, and functional enclosure designed specifically for the ESP32-C3 SuperMini board. Engineered to fit like a glove while keeping full access to connectivity and board features! ✨ Features & Technical Specifications - Ultra-Compact Dimensions: Base outer measurements of 25.8 mm × 18.6 mm with a total height of 7.56 mm. - Custom Fit: Perfectly tailored for the ESP32-C3 SuperMini board with zero wasted space. - Integrated Flexible Buttons: Built-in compliant mechanical tabs on the top lid featuring B (BOOT) and R (RESET) markings, allowing you to press the buttons effortlessly without opening the case. - Slide-Lock Mechanism: Easy 2-piece assembly. The top lid slides into the base grooves and locks securely into place. - Bottom Access Slots: Features precision-cut bottom slots (approx. 20.18 mm length) enabling easy pin header soldering, wiring, or GPIO access. - Precision USB-C Cutout: Perfectly aligned front port opening (9.94 × 4.16 mm internal profile) for easy cable insertion. - Fast Print Time: Prints in under 30 minutes with high precision.

🛠️ Print Settings & Recommendations For best mechanical tolerances and smooth button flex, use the following settings: SettingRecommended Value Layer Height0.08 mm (recommended for smooth sliding tolerances) Infill100% or 15-20% Grid/Gyroid Wall Loops / Perimeter2 - 3 SupportsNOT needed (Prints cleanly as-is) MaterialPLA, PETG, or ABS/ASA Print Time< 30 minutes 📂 Included Files - Case ESP32-C3 Disegno v2_2.pdf: Multi-sheet technical drawing with detailed dimensions and section views. - Case ESP32-C3-cad.step: 3D STEP source file for easy editing, remaking, and custom modifications! - .STL files ready for slicing.
