Ultimate Skadis Modular Drawer System (Support-Free) UPDATE 1.2

Ultimate Skadis Modular Drawer System Upgrade your IKEA Skadis pegboard with a fully modular, highly functional, and space-efficient storage solution designed specifically for smooth 3D printing and maximum utility. UPDATE LOG Update v1.2: - Added Wave front drawers (compatible with all basket inserts and standard housing modules).

Update v1.1 - New 2-Drawer Module & Compatibility Enhancements: - Added 2-Drawer Module: You can now print a smaller 2-drawer housing module alongside the original 4-drawer version.

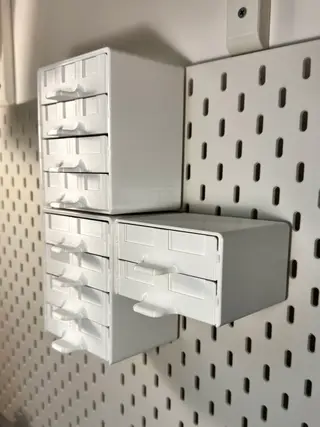

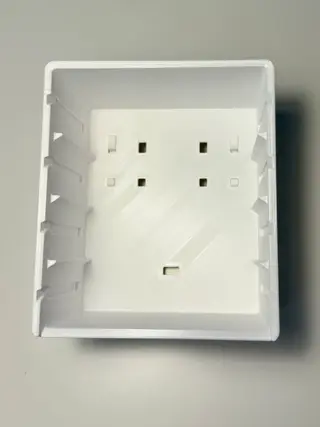

- Grid Realignment Slots: Added clearance cutouts on the back of the 4-drawer module body. This allows full vertical interchanging and mixing of 2-drawer and 4-drawer modules in any sequence on the Skadis board.

- New Attachment Part - Skadis Side Support: Due to the Skadis pegboard hole pattern layout, mixing 2-drawer and 4-drawer modules vertically can cause the Uni-Hook mounting point to fall in the center of the module rather than the sides. To prevent side-to-side tilting in these specific layouts, install the new "Skadis Side Support" clips into the empty Uni-Hook slots on the sides.

- Skadis Uni-Hook 4mm: Added to decrease the angle needed to push the module onto the pegboard. Useful for mounting points in the center.

Update 03.10.2026: - Added a model for the front name tags.

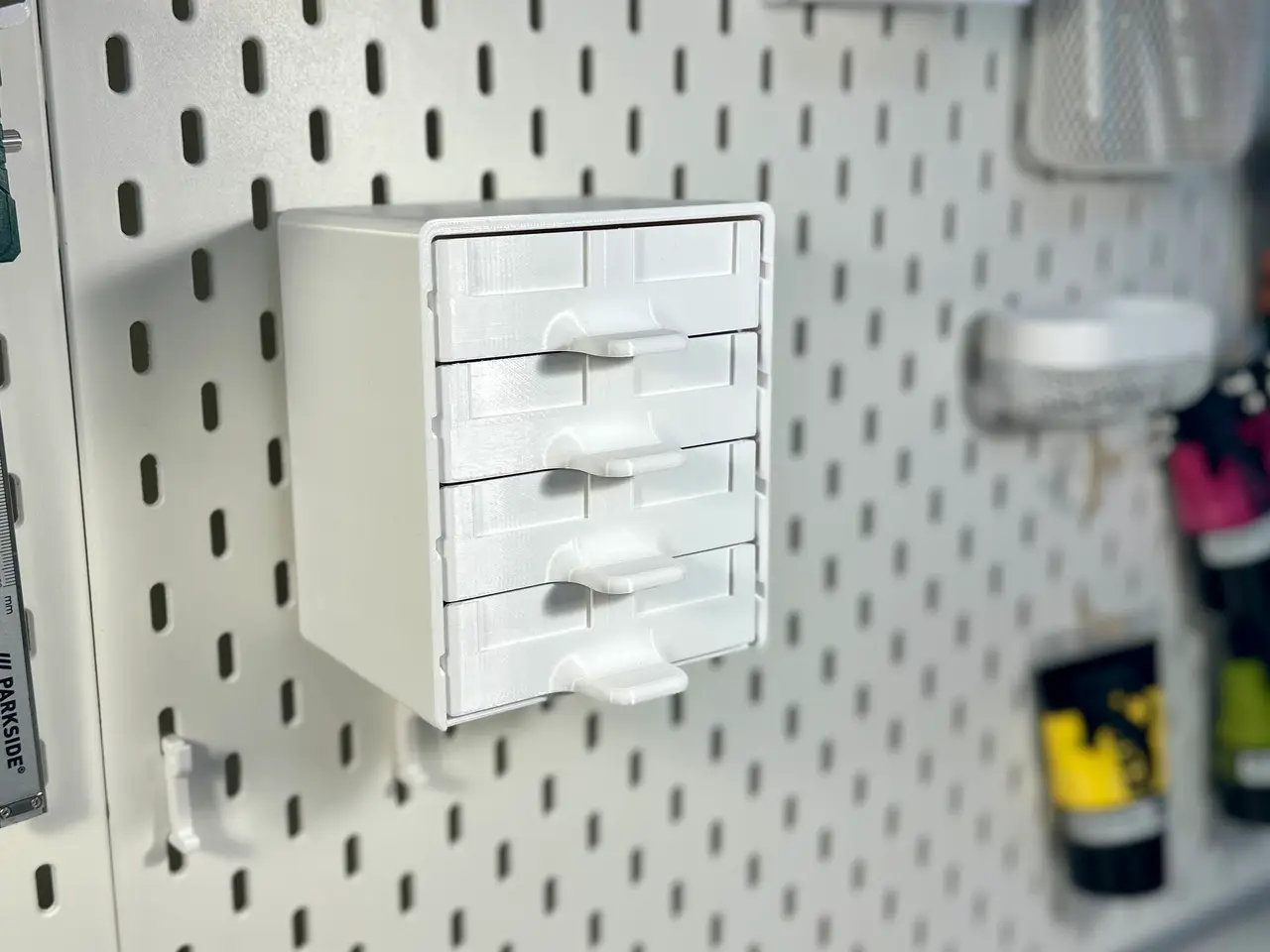

Dimensions and Skadis Grid Fit - Skadis 4-Drawer Module Body: 120 mm (width) x 98 mm (depth) x 138 mm (height)

- Skadis 2-Drawer Module Body size: 120 mm (width) x 98 mm (depth) x 68 mm (height)

- Usable internal drawer space: 105 mm (width) x 78 mm (depth) x 30 mm (height)

- Board capacity: Fits up to 4 Skadis 4-Drawer Module Body vertically and 6 modules horizontally on a standard 560x760 mm Skadis board.

Key Features - Heavy-Duty Uni-Hook Mounting: Uses two Skadis Uni-Hooks printed separately for maximum mechanical strength and a tight, secure press-fit without requiring supports.

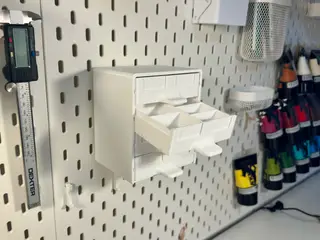

- Smart Tilt-Lock Mechanism: Drawers extend fully with a 15-degree downward tilt at the end position to prevent accidental drops.

- Easy Quick-Release: Rotating the drawer slightly left or right at full extension disengages it from the guide rails for complete removal.

- Customizable Labels: Every drawer features dual slots for slide-in label cards to keep your setup organized.

- Optional PTFE Super-Smooth Motion: Integrated side slots accept short PTFE tube segments (standard 4mm OD / 2mm ID printer tubing) for ultra-smooth gliding action. (Optional, not strictly required).

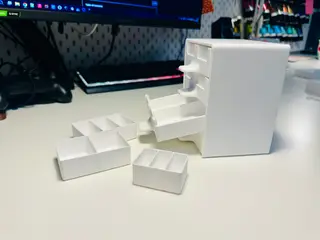

- Modular Insert Baskets: Removable insert baskets designed for multi-compartment drawers (2-drawer and 4-drawer versions) allow you to pick up individual sections to pour out tiny components without spilling the rest of the drawer.

- Dual Front Styles: Choose between the Utility Edition (clean geometric design with dual label slots for tool/part identification) and the Wave Edition (decorative organic front with integrated finger pulls for home and craft spaces).

Available Models and Variants Main Drawers: - 4-Drawer Module Body (v2 - Updated with universal rear cutouts)

- 2-Drawer Module Body (New double-drawer housing)

- 1-drawer and 1-drawer_wave: Single open drawer without dividers

- 2-drawer and 2-drawer_wave: Divided into 2 equal compartments

- 4-drawer and 4-drawer_wave: Divided into 4 equal compartments

Insert Baskets (for 2-drawer and 4-drawer models): - Full-segment basket (2-drawer_1-basket, 4-drawer_1-basket)

- Long split basket (2-drawer_2-basket_long, 4-drawer_2-basket_long)

- Short split basket (2-drawer_2-basket_short, 4-drawer_2-basket_short)

- 3-part split basket (2-drawer_3-basket, 4-drawer_3-basket)

Mounting Hardware: - Skadis Uni-Hook (Primary load-bearing hook)

- Skadis Side Support (Anti-tilt stabilizer clips for central hook positioning)

Recommended Print Settings - Material: PETG recommended (PLA or ABS can also be used).

- Supports: None! 100% Support-Free design.
