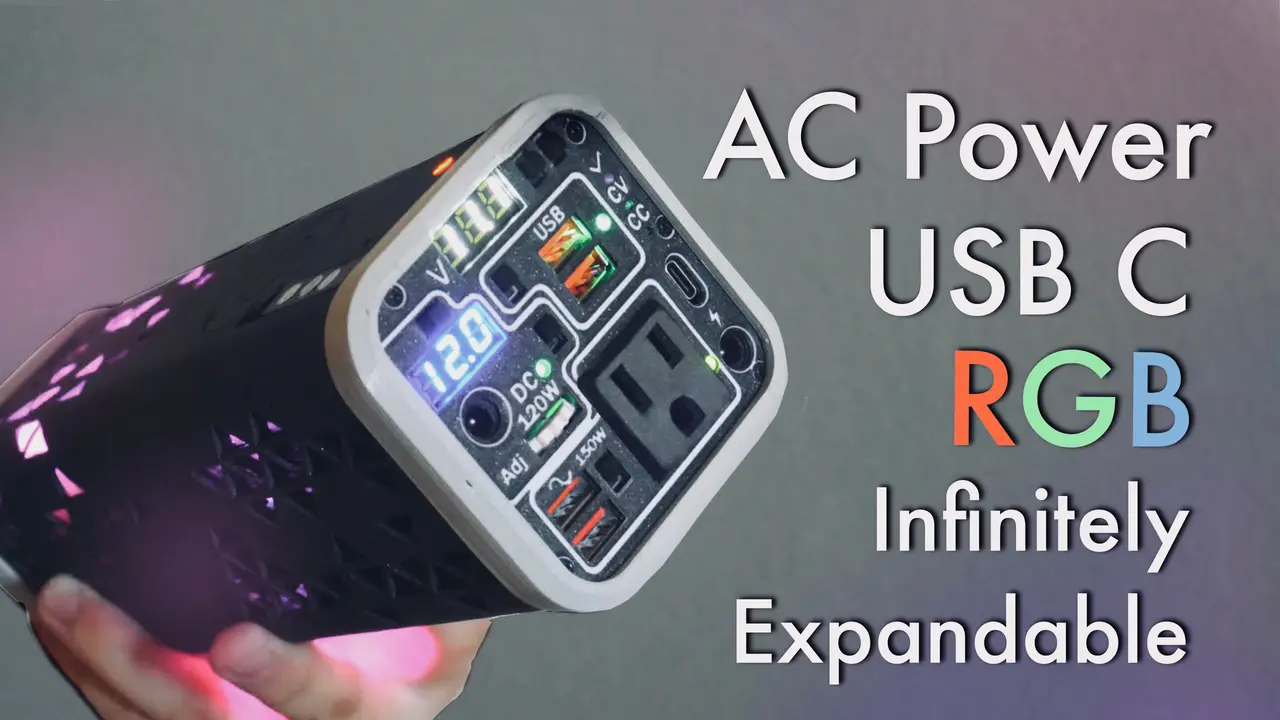

Ultimate 18650 Power Bank with Infinitely Expandable Capacity
por KRALYN 3D en Thingiverse

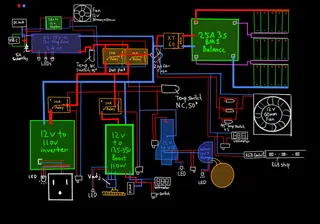

Full Build guide: https://www.youtube.com/watch?v=0jRsltIW8qM&lc=z235yfex0v3hzldc4acdp432jmqwfhyhzei1bhyiu0lw03c010c Purchase links and schematics are in the YouTube video description. Be aware that this is a relative extensive project. Print settings: All parts are printed at 0.2mm layer height...
Licencia
Uso comercial permitidoPuedes imprimirlo, modificarlo y venderlo dando crédito al autor.
Al descargar aceptas respetar la licencia y dar crédito a KRALYN 3D.
Archivos (29)
- Outer_sleeve_NO_LED.SLDPRT SLDPRT · 1,1 MB
- Full_Powerbank_Assembly_-_Adj_bracket-2.STL STL · 10 KB
- Voltmeter.SLDPRT SLDPRT · 179 KB
- Full_Powerbank_Assembly_-_Locking_Shim-1.STL STL · 1 KB
- Full_Powerbank_Assembly_-_Locking_mechnism_lid-1.STL STL · 115 KB
- Full_Powerbank_Assembly_-_Adj_Knob-1.STL STL · 58 KB
- Full_Powerbank_Assembly_-_Pull_Tab-1.STL STL · 25 KB
- Full_Powerbank_Assembly_-_Battery_locking_mechnism_base-1.STL STL · 78 KB
- XT60_female.SLDPRT SLDPRT · 510 KB
- Full_Powerbank_Assembly_-_Rotate_lock-1.STL STL · 39 KB
- Full_Powerbank_Assembly_-_Bottom_Cap-1.STL STL · 91 KB
- Full_Powerbank_Assembly_-_Voltmeter_and_switch_brcket-1.STL STL · 4 KB
- Full_Powerbank_Assembly_-_IO_shield-2.STL STL · 698 KB
- XT60_male.SLDPRT SLDPRT · 509 KB
- Full_Powerbank_Assembly_-_RGB_controller_cover-1.STL STL · 27 KB
- Full_Powerbank_Assembly_-_Outer_sleeve-2.STL STL · 661 KB
- Full_Powerbank_Assembly_-_Top_Cap-1.STL STL · 143 KB
- Outer_sleeve_NO_LED.STL STL · 344 KB
- IO_shield_with_USB_C.STL STL · 623 KB
- ABS_or_PETG-_Battery_Holder_base_part-1.STL STL · 381 KB
- Battery_compartment_one_piece.STL STL · 140 KB
- Full_Powerbank_Assembly_-_Inscription-1.STL STL · 705 KB
- ABS_or_PETG-_Electronics_body_top_layer-4.STL STL · 200 KB
- ABS_or_PETG_-_Battery_Holder_Top_Cap-2.STL STL · 468 KB
- ABS_or_PETG-_Electronics_body_mid_layer-1.STL STL · 153 KB
- ABS_or_PETG_-_Electronics_body-1.STL STL · 377 KB
- 18650_Power_Bank_Full_assembly_packed.zip ZIP · 13,8 MB
- IO_shield_with_USB_C.SLDPRT SLDPRT · 1,2 MB
- USE_THIS_IF_U_CANT_OPEN_THE_OTHER_ONE.SLDPRT SLDPRT · 9,4 MB
- Categoría
- Para tu impresora
- Formatos
- SLDPRT, STL, ZIP
- Descargas
- 25,257
- Publicado
Sobre este modelo

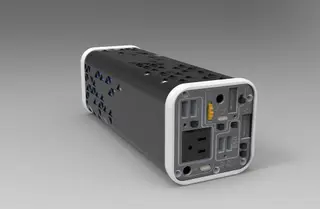

Full Build guide: https://www.youtube.com/watch?v=0jRsltIW8qM&lc=z235yfex0v3hzldc4acdp432jmqwfhyhzei1bhyiu0lw03c010c Purchase links and schematics are in the YouTube video description. Be aware that this is a relative extensive project. Print settings: All parts are printed at 0.2mm layer height (except for IO shield) 3 walls and 35% infill for all. Some files need to be printed using ABS or PETG to avoid melting. IO shield is printed using 0.2mm Nozzle and 0.15 layer height with a filament swap in between. Download the CAD files to see how this power bank comes together.
