Ultimaker 2 Aluminum Extrusion 3D printer
por Jason en Thingiverse
https://www.youtube.com/embed/TDfLqazCupo This is not The Greatest UM2 Clone, no. This is just a tribute. This project began as a fun way to learn AutoDesk Fusion 360. I started by importing the entire Solidworks CAD file into a new Fusion 360 project, dropped the frame (walls) from the printer...
Licencia
Solo uso personalCC BY-NC 4.0 — Atribución, no comercial
Puedes imprimirlo y modificarlo para uso personal dando crédito. No se permite vender las impresiones.
Al descargar aceptas respetar la licencia y dar crédito a Jason.
Archivos (47)
- Top_Bracket_x4.stl STL · 226 KB
- Bottom_Bracket_x4.stl STL · 256 KB
- Sides_Top_Bracket_x8.stl STL · 127 KB
- Sides_Bottom_Bracket_x8.stl STL · 172 KB

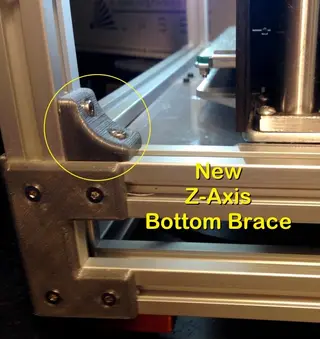

- Z-Axis_Bottom_Brace.stl STL · 212 KB
- MotorMount_Spacer_7mm_x8.stl STL · 55 KB
- MotorMount_Extruder.stl STL · 139 KB
- MotorMount_X-Axis_v2.stl STL · 285 KB
- MotorMount_Y-Axis_v2.stl STL · 266 KB
- X-Axis_End_Stop.stl STL · 99 KB
- Gantry_Z-Axis_Bottom_v2.stl STL · 159 KB
- Z-Axis_End_Stop.stl STL · 150 KB
- Gantry_Spacer_10mm_x5.stl STL · 54 KB
- Gantry_Spacer_5mm_x2.stl STL · 38 KB
- Gantry_Spacer_25mm.stl STL · 55 KB
- Gantry_X-Axis_Front_Right_v2.stl STL · 355 KB
- Gantry_X-Axis_Front_Left_v2.stl STL · 336 KB
- Gantry_X-Axis_Back_Left_v2.stl STL · 392 KB
- Gantry_X-Axis_Back_Right_v2.stl STL · 360 KB
- Gantry_Y-Axis_Front_Left_v2.stl STL · 389 KB
- Gantry_Y-Axis_Front_Right_v2.stl STL · 391 KB
- Gantry_Y-Axis_Back_Left_v2.stl STL · 383 KB
- Gantry_Y-Axis_Back_Right_v2.stl STL · 399 KB
- Gantry_Z-Axis_Bottom_339mm_v2.stl STL · 159 KB
- Gantry_Z-Axis_Top_v2.stl STL · 277 KB
- Gantry_Z-Axis_Top_339mm_v2.stl STL · 305 KB
- Mainboard_Enclosure_Spacer_x2.stl STL · 60 KB
- Mainboard_Faceplate.stl STL · 78 KB
- Mainboard_Enclosure.stl STL · 333 KB
- Printhead_Adapter_for_1.75.stl STL · 218 KB
- Extruder_Body_for_1.75.stl STL · 799 KB
- Extruder_Guide_for_1.75.stl STL · 191 KB
- LED_Mount.stl STL · 81 KB

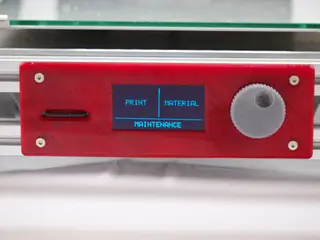

- OLED_Face_Plate.stl STL · 174 KB
- OLED_Knob.stl STL · 462 KB
- OLED_Electronics_Bracket.stl STL · 151 KB
- OLED_Front_Electronics_Support.stl STL · 31 KB
- OLED_Electronics_Spacer_x4.stl STL · 50 KB
- Bowden_Support_Bracket.stl STL · 348 KB
- Floor_20mm_Connector.stl STL · 130 KB
- Floor_30mm_Connector.stl STL · 113 KB
- floor.cdr CDR · 16 KB
- floor.dxf DXF · 197 KB
- floor.eps EPS · 7,6 MB
- deprecated_v1.zip ZIP · 1,2 MB
- Ultimaker_2_Aluminum_Extrusion_3D_Printer_v17.step STEP · 30,5 MB
- Ultimaker_2_Aluminum_Extrusion_3D_Printer_v17.f3d F3D · 37,9 MB
- Categoría
- Para tu impresora
- Formatos
- STL, CDR, DXF, EPS, ZIP, STEP
- Descargas
- 75,361
- Publicado
Sobre este modelo

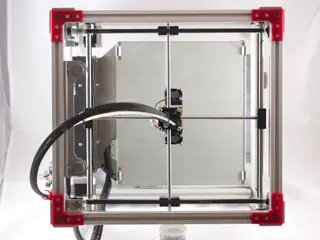

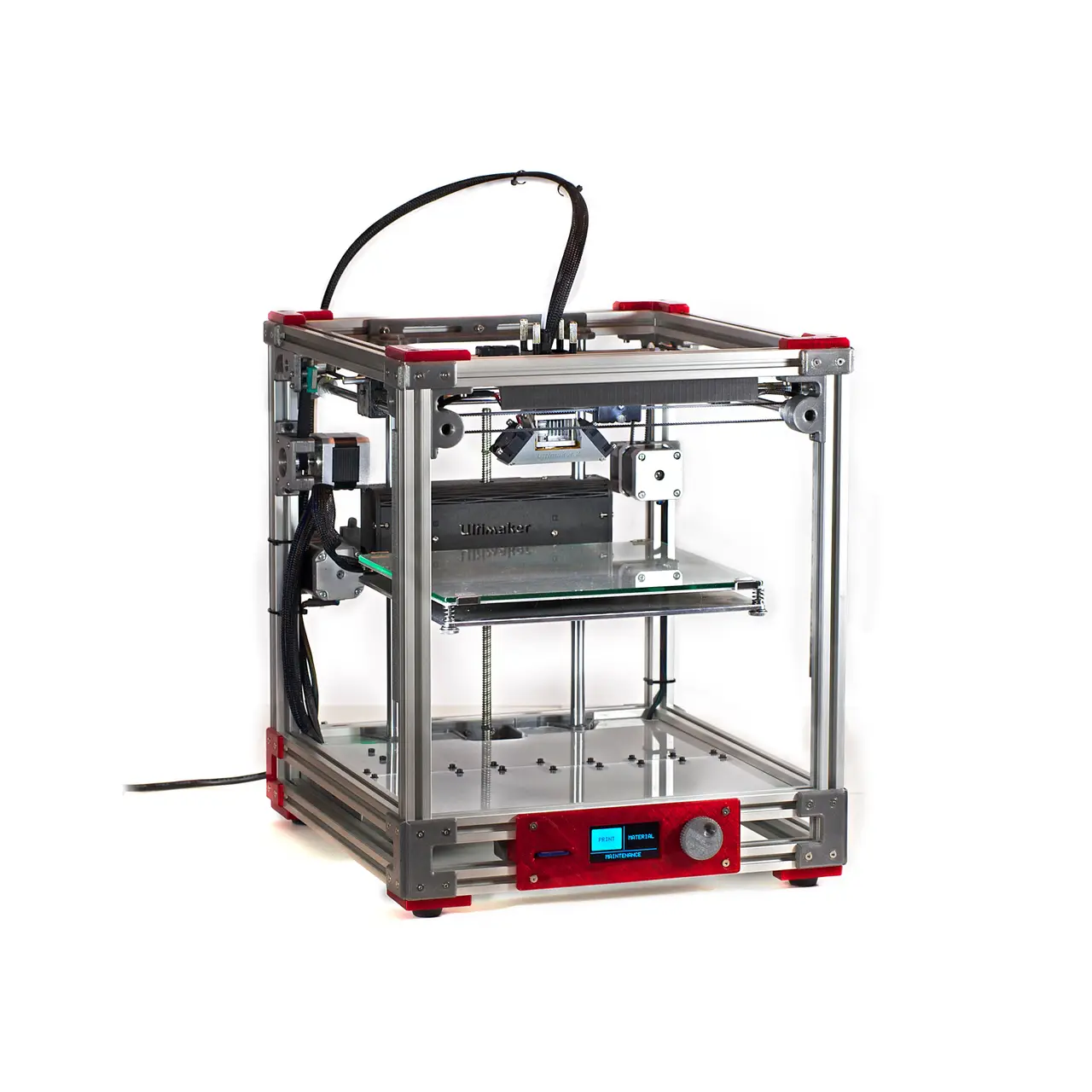

https://www.youtube.com/embed/TDfLqazCupo This is not The Greatest UM2 Clone, no. This is just a tribute. This project began as a fun way to learn AutoDesk Fusion 360. I started by importing the entire Solidworks CAD file into a new Fusion 360 project, dropped the frame (walls) from the printer, built 20x20 Misumi aluminum extrusions to wrap the printer guts and then worked to build brackets to support all the parts that previously attached to the frame. I've been printing nonstop on this new printer with the same precision and quality as my real UM2. In fact, I can use the same GCODE in either machine with identical results. A360 Source Download Link - Use this link to download a copy of the source (in your CAD flavor).
Descripción original del autor, publicada en Thingiverse.
