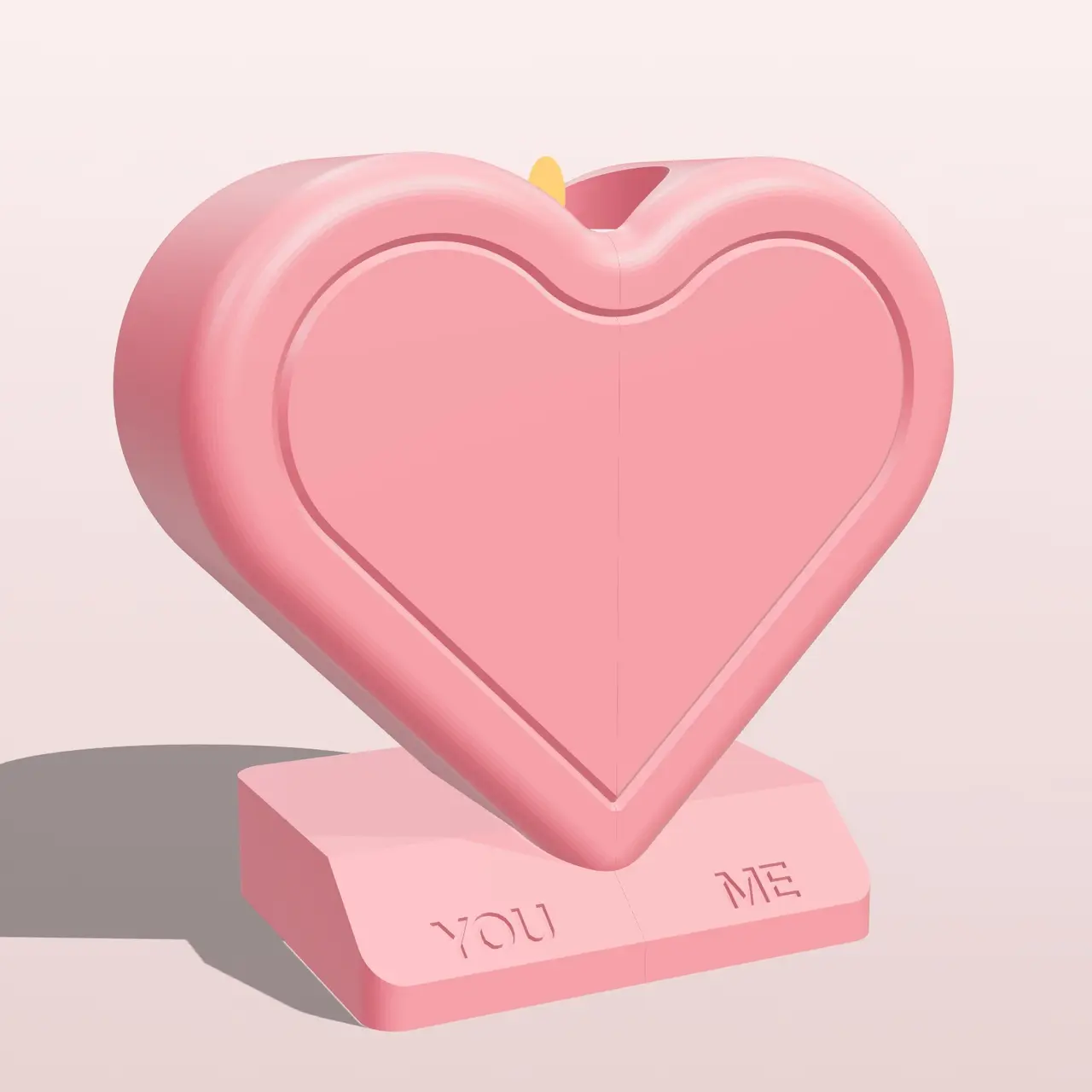

Two Hearts Magnetic Couple Bookends – "YOU" & "ME" Halves Snap into One Heart LED Tea Light Holder

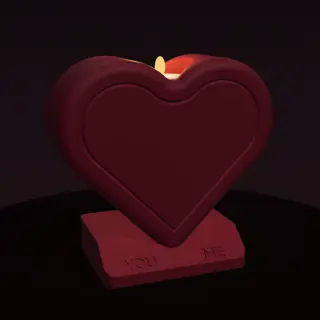

Two halves – YOU and ME – that belong together. Snap them together with magnets and they become one puffy heart with an LED tea light glowing from its cleft. Pull them apart, slide them onto the two bookend plates and they hold your books – one on each side, like a couple. A gift for Valentine's Day, an anniversary, a wedding or a new home.

WHAT YOU GET

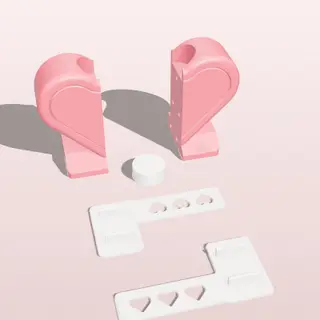

- Heart_Half_YOU.stl and Heart_Half_ME.stl – the two halves, each with its own plinth, engraved "YOU" / "ME" on a 38° label slope, inner heart V-groove on front and back, half of the tea light pocket, 5 teardrop magnet pockets (6 x 2 mm) on the seam face and 2 hidden fin slots in the base

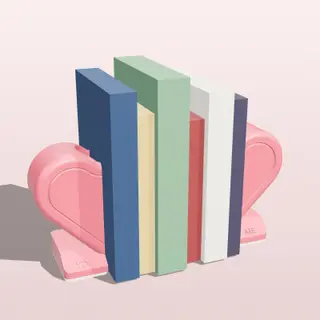

- Bookend_Plate_YOU.stl and Bookend_Plate_ME.stl – plates with 2 locating fins and a tongue with heart cut-outs; the tongues run side by side under the books (one front, one back), so the bookends work from ~105 mm of books upward

- README.txt – hardware, print settings, assembly and magnet polarity tip

SIZE

- Joined heart: 136 x 72 x 130 mm (heart 52 mm thick), plinth 92 x 72 mm

- Each half: 68 x 72 x 130 mm, ~110 g PLA (3 walls, 15 % infill – use 30-40 % for heavier bookends)

- Plates: 145.5 x 72 x 14.5 mm, ~22 g each

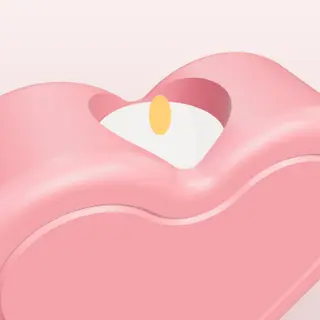

- Tea light pocket 40.5 mm for a standard 38 mm LED tea light (LED only, never a real candle)

PRINTING

- No supports: halves print upright on the plinth (every surface ≤ 45°, heart lower edges are exact 45° tangents, teardrop magnet pockets, 45° gable roofs on the slots), plates print flat with fins up

- Tolerances: fins 3.0 mm in 3.6 mm slots (0.30 mm per side), tea light 1.25 mm per side, halves meet face to face

- All parts watertight single shells; fits, gaps and magnet / tea light positions were checked with boolean tests on the exported STL files (designed and checked digitally – not test-printed)

- Hardware: 10 neodymium magnets 6 x 2 mm, CA glue, 1 LED tea light, optional rubber feet

- 0.2 mm layers, PLA; fill the engraved letters with paint or wax for contrast

Generated with the DIATEH GEN parametric engine.
