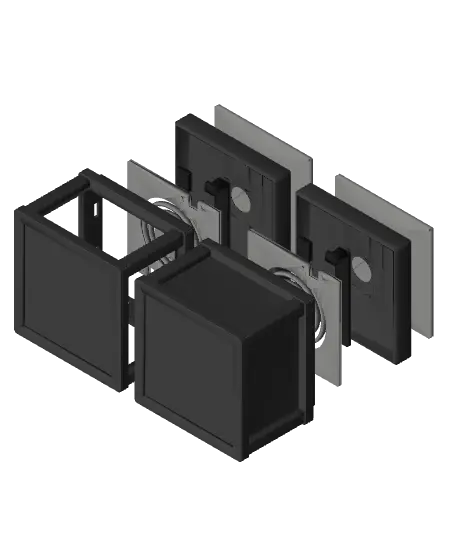

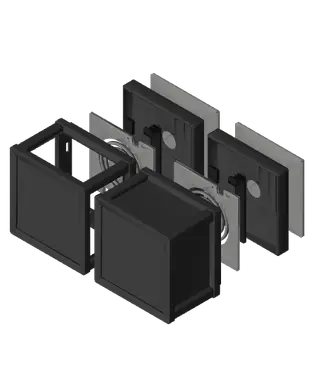

Twist Lock Photo Box

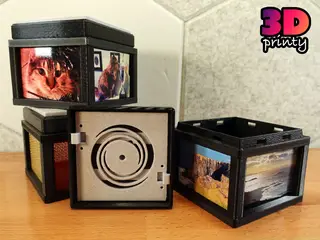

This tricky box has a hidden latch mechanism. Displays your photos and HueForge prints.

https://youtu.be/_XHqyp83soY

https://youtu.be/1muiuHjyLlU?si=QQX99Vuc3420_x2t

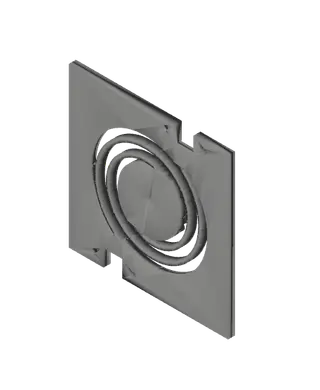

Printing - All parts can be printed without supports. - Print the base clips with two perimeters and zero infill so they can easily flex. - Print the spring with enough perimeters that the spring arm is entirely solid. - Add brims to prevent curling. All parts must print flat to fit correctly. - Avoid silk or matte filaments on the mechanical parts on this design. These tend to be more brittle than regular filaments.

Assembly

See the video above for assembly. (https://youtu.be/_XHqyp83soY)

Optional Assembly - Add 6x3mm magnets to the topper and lid for slightly more snap in the puzzle mechanism - Use glue or 6-8mm M3 bolts to secure the spring to the box lid

Dimensions

Interior: 90 x 90 x 67mm Photo: 87 x 55mm Maximum height for HueForge panels (on edge of print): 0.9mm

Can I sell copies of this?

Yes! This project was shared under the Creative Commons - Attribution (https://creativecommons.org/licenses/by/4.0/) license.

This license allows selling copies, but you must provide proper attribution, as detailed in the license itself.

Please note that any other projects linked here (remixes or related projects) may have a different license. Please respect those licenses.

This license applies only to the model files (STL, 3MF, STEP, F3D) included in this project. It does not apply to photos, videos, my logo, or other supplemental graphics attached to or displayed with this project.
