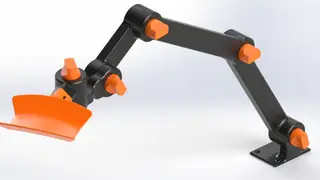

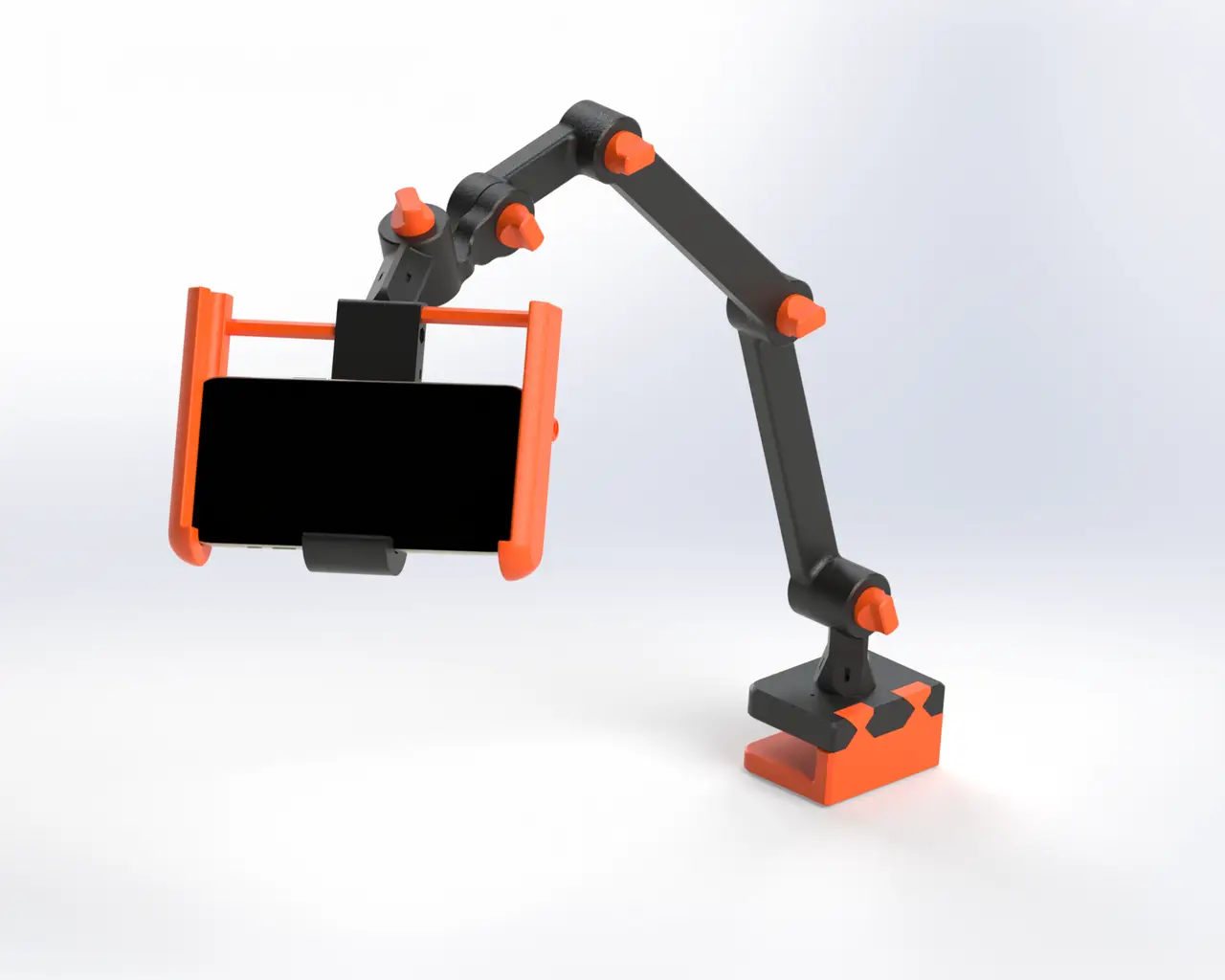

Twist Lock Modular Articulated Arm (100% Printed)
por StickAtSea en Printables
Twist Lock version of my articulated arm that doesn't require magnets.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a StickAtSea.
Archivos (42)
- Hinge A TL.step STEP · 328 KB
- Hinge B TL.step STEP · 401 KB
- Arm A TL.step STEP · 758 KB
- Arm B TL.step STEP · 927 KB
- Female Connector.step STEP · 78 KB
- Male Connector.step STEP · 70 KB
- Twist Lock Clamp 18mm.stl STL · 374 KB
- Twist Lock Rotated Clamp 18mm.stl STL · 424 KB
- Twist Lock Clamp 21mm.stl STL · 341 KB
- Twist Lock Rotated Clamp 21mm.stl STL · 434 KB
- Twist Lock Clamp 25mm.stl STL · 373 KB
- Twist Lock Rotated Clamp 25mm.stl STL · 429 KB
- Twist Lock Clamp 30mm.stl STL · 381 KB
- Twist Lock Rotated Clamp 30mm.stl STL · 420 KB
- Twist Lock Clamp 40mm.stl STL · 331 KB
- Twist Lock Rotated Clamp 40mm.stl STL · 406 KB
- Screw - tight tolerances.stl STL · 995 KB
- Flat screw.stl STL · 442 KB
- Flat screw - tight tolerances.stl STL · 422 KB
- Screw.stl STL · 971 KB
- Arm A TL.stl STL · 244 KB
- Arm B TL.stl STL · 424 KB
- Arm A short TL.stl STL · 280 KB
- Arm B short TL.stl STL · 495 KB
- Twist Lock Pin.stl STL · 162 KB
- Simple base TL.stl STL · 214 KB
- Hinge A With Connector TL.stl STL · 149 KB
- Longer TL Pin for Hinge A With Connector.stl STL · 157 KB
- Hinge B With Connector TL.stl STL · 219 KB
- Hinge A with Female Connector TL.stl STL · 151 KB
- Hinge B with Female Connector TL.stl STL · 226 KB
- Swivel connectors.stl STL · 468 KB
- Small Headphone Holder.stl STL · 225 KB
- Cable management clip.stl STL · 70 KB
- 90 rotation CCW TL.stl STL · 286 KB
- 90 rotation CW TL.stl STL · 286 KB
- Blank Hinge A TL.stl STL · 91 KB
- Blank Hinge B TL.stl STL · 164 KB
- Untested_~22-30mm Mic Holder Top with connector.stl STL · 2,1 MB
- Untested_Mic Holder Bottom with connector.stl STL · 358 KB
- Mic Holder 31-33mm.stl STL · 485 KB
- Connector unlock tool.stl STL · 46 KB
- Categoría
- Repuestos
- Formatos
- STEP, STL
- Descargas
- 965
- Publicado
Sobre este modelo
Check out the new version!

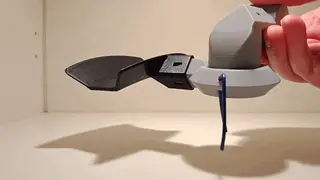

Like the magnetic version, very easy to assemble, just print and put together. I would say the main difference is the lack of the satisfying snap from the magnets and the extra step to lock/unlock, but I think (I haven't been able to properly test this yet, as I have used different materials and slicer settings) that this version might hold more weight perpendicular to the arm rotation. I'm also including the modified clamps for this mechanism. -Added some .step files, let me know if you need a specific one. -Added hinges with female connectors for easily printable rotations, thanks @Bobster for bringing up the issue! -Added two untested adaptations for a microphone stand. The 'top' is standalone, the 'bottom' has to be used with the top from the original maker https://www.printables.com/model/159430-microphone-holder-for-mic-stand -Added a small clip for cable management -Added swivel connectors, print in place, rotates freely, you can put a piece of filament through the little hole to block rotation
