Turtle Shell Racer High Power Edition
por Michael Curry en Thingiverse
I think we can all agree, life would become much more interesting if I launched a turtle shell at you every once and a while. But it's no fun if I'm the only one with a shell to launch. Therefore, Turtle Shells for Everybody!!! All you have to do is print it out and assemble! The Turtle Shell Racer.
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Michael Curry.
Archivos (25)

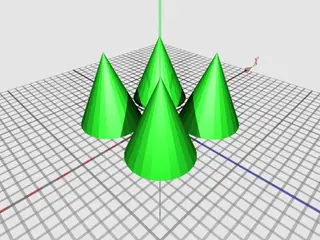

- 4_Spikes.stl STL · 515 KB

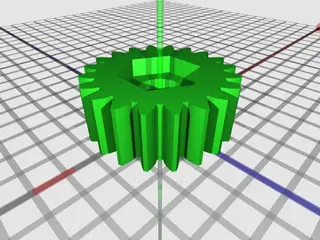

- Drive_Gear.stl STL · 1,2 MB
- Front_Suspension.stl STL · 830 KB

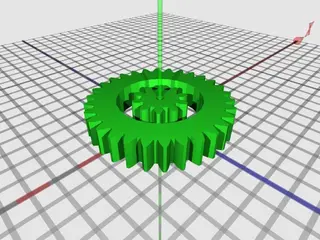

- Gear_2.stl STL · 2,5 MB

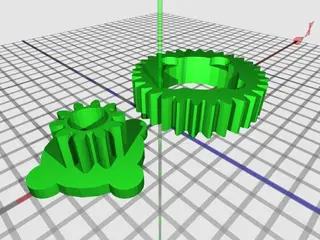

- Gear_1_and_3.stl STL · 2,2 MB
- Gearbox_Body.stl STL · 1,3 MB
- Gearbox_Latch.stl STL · 512 KB
- Rear_Axle_Brackets.stl STL · 680 KB
- Rear_Wheel.stl STL · 1,9 MB
- Shell_Back_A.stl STL · 2,4 MB
- Shell_Back_B.stl STL · 2,4 MB
- Shell_Front_A.stl STL · 2,0 MB
- Shell_Front_B.stl STL · 2,0 MB
- Shell_Top_A.stl STL · 1,2 MB
- Shell_Top_B.stl STL · 1,2 MB
- Steering_Linkage.stl STL · 181 KB
- Wings.stl STL · 11,9 MB
- Gearbox_Bracket.stl STL · 530 KB
- Turtle_Shell_Racer_-_HP_v1.pdf PDF · 5,8 MB
- Turtle_Shell_Racer_HP_v1.skp SKP · 3,5 MB
- Turtle_Shell_Racer_-_High_Power_Edition.zip ZIP · 5,5 MB
- Single_Spike.stl STL · 129 KB
- TSR_-_Electronics_Supplement.pdf PDF · 1,6 MB
- wheely_bar.stl STL · 730 KB
- new_stearing_Link.stl STL · 175 KB
- Categoría
- Repuestos
- Formatos
- STL, PDF, SKP, ZIP
- Descargas
- 46,738
- Publicado
Sobre este modelo
I think we can all agree, life would become much more interesting if I launched a turtle shell at you every once and a while. But it's no fun if I'm the only one with a shell to launch. Therefore, Turtle Shells for Everybody!!! All you have to do is print it out and assemble! The Turtle Shell Racer is as fully 3d printable as I can make it using my Makerbot Cupcake CNC and its MK5 Extruder. The pdf file contains full assembly instructions and a parts list. This is a very ambitious project; expect to spend some time on it. Video of the Shells in action at CCCKC: http://www.youtube.com/watch?v=YAd3e_UTW4c http://www.youtube.com/watch?v=wA-wY-Q_onU UPDATE Sept 26th I have uploaded the modifications I made to the shells for the NYC Maker Faire. Wheely Bar.stl - This replaces the rear axle brackets.stl with a wheely bar, which allows awesome wheelys! New stearing Link.stl - This new link replaces the old steering linkage.stl. It is designed to capture one of the servo horns and allow a better connection between the servo and the steering.
Descripción original del autor, publicada en Thingiverse.
