Tripod Screw

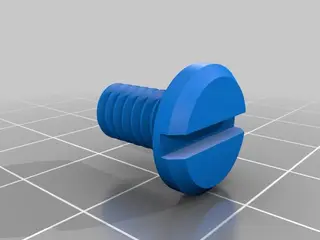

1/4-20 screw for use in a tripod mount socket. Designed as a screw I'd downloaded from thingiverse was too long, and the shank was slightly larger than the threaded portion - so it wouldn't pass through the other part.

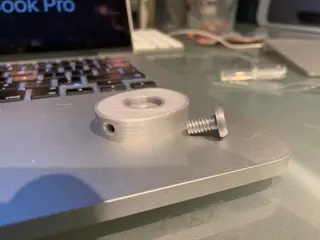

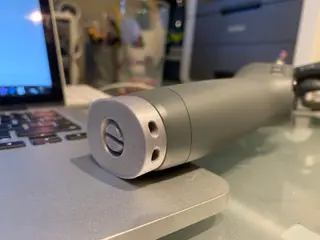

Used for the handstrap adaptor for a DJI Osmo Mobile gimbal:

https://www.thingiverse.com/thing:2793426

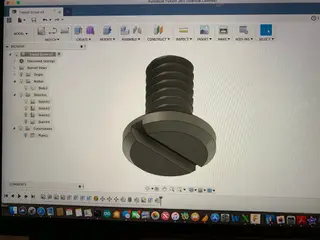

EDIT 24/08/20 - link to the online F3D file was broken, so I've exported it and uploaded it. It should be in the files section now.

Print instructions Unassociated tags: 1/4-20

Category: Hobby Summary

1/4-20 screw for use in a tripod mount socket. Designed as a screw I'd downloaded from thingiverse was too long, and the shank was slightly larger than the threaded portion - so it wouldn't pass through the other part.

Used for the handstrap adaptor for a DJI Osmo Mobile gimbal:

https://www.thingiverse.com/thing:2793426

EDIT 24/08/20 - link to the online F3D file was broken, so I've exported it and uploaded it. It should be in the files section now.

Print Settings

Printer Brand:

Prusa

Printer: i3 MK3 </div>Rafts:

No

Supports: No </div>Resolution:

.2

Infill: 100 </div>

Filament:

Prusa PLA Silver Notes: This seems strong enough, but I may print out another in PETG for greater strength and better resilience to being outdoors.
