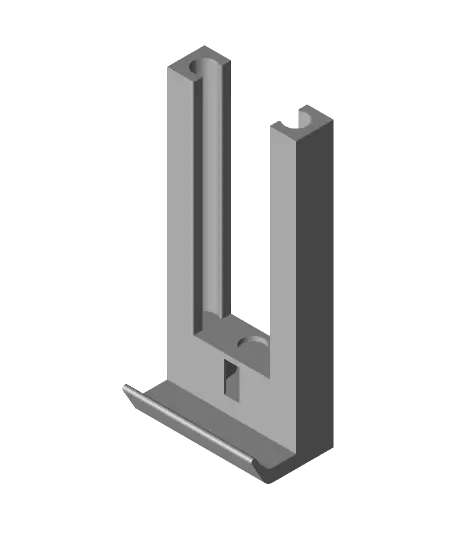

Tripod phone mount
I needed a support to place my cell phone on the tripod and after not finding any that made me feel confident I decided to design my own.
Thangs entrega los archivos a usuarios con cuenta gratuita
Licencia
Solo uso personalCC BY-NC-SA 4.0 — Atribución, no comercial, compartir igual
Uso personal dando crédito; sin fines comerciales y las modificaciones con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a Gonzalo C.
Archivos (4)
- bottom.stl STL · 378 KB
- threaded_rod.stl STL · 1,8 MB
- top.stl STL · 392 KB
- wheel.stl STL · 476 KB
- Categoría
- Herramientas
- Formatos
- STL
- Descargas
- 16
- Publicado
Sobre este modelo

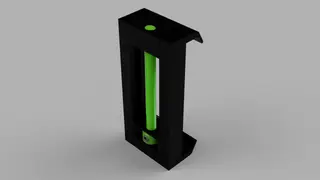

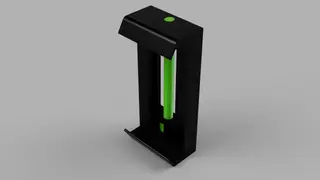

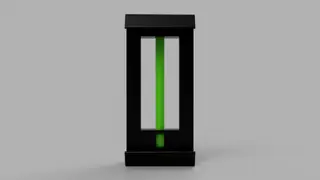

I needed a support to place my cell phone on the tripod and after not finding any that made me feel confident I decided to design my own.

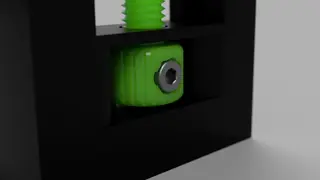

Some things to take into account is that the support has a built-in tripod thread, since in Spain it is quite difficult to find 1/4 inch nuts. Also an 8mm M3 screw is needed to attach the wheel to the threaded rod.
__
Print instructions:
Recommended 0.2mm layer height.
All parts should be printed in the default orientation for best results.
It is recommended to print the rod with a brim of 3-4mm.

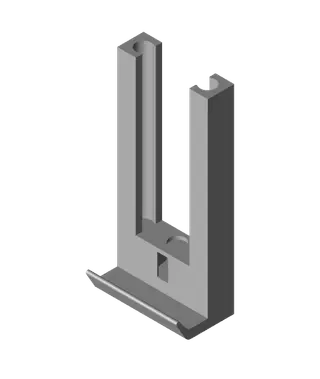

The bottom part contains a 0.2mm layer on top of where the wheel is located to allow for unsupported bridging. This layer must be cut once the part is printed.
No support needed.
__
More info on Prusa Printers: https://www.prusaprinters.org/prints/63151-tripod-phone-mount
