Tripod Mounts: Cold Shoe and Ram Ball Mounts with 1/4 20 Thread
por K2_Kevin en Printables
Cold Shoe and Ram Ball Mounts with 1/4 20 Thread Adapter
Licencia
Uso comercial permitidoCC BY-SA 4.0 — Atribución, compartir igual
Puedes usarlo y modificarlo dando crédito; las versiones modificadas deben compartirse con la misma licencia.
Al descargar aceptas respetar la licencia y dar crédito a K2_Kevin.
Archivos (4)
- Categoría
- Tecnología
- Formatos
- STL
- Descargas
- 440
- Publicado
Sobre este modelo

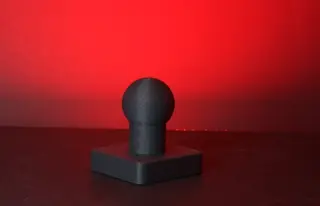

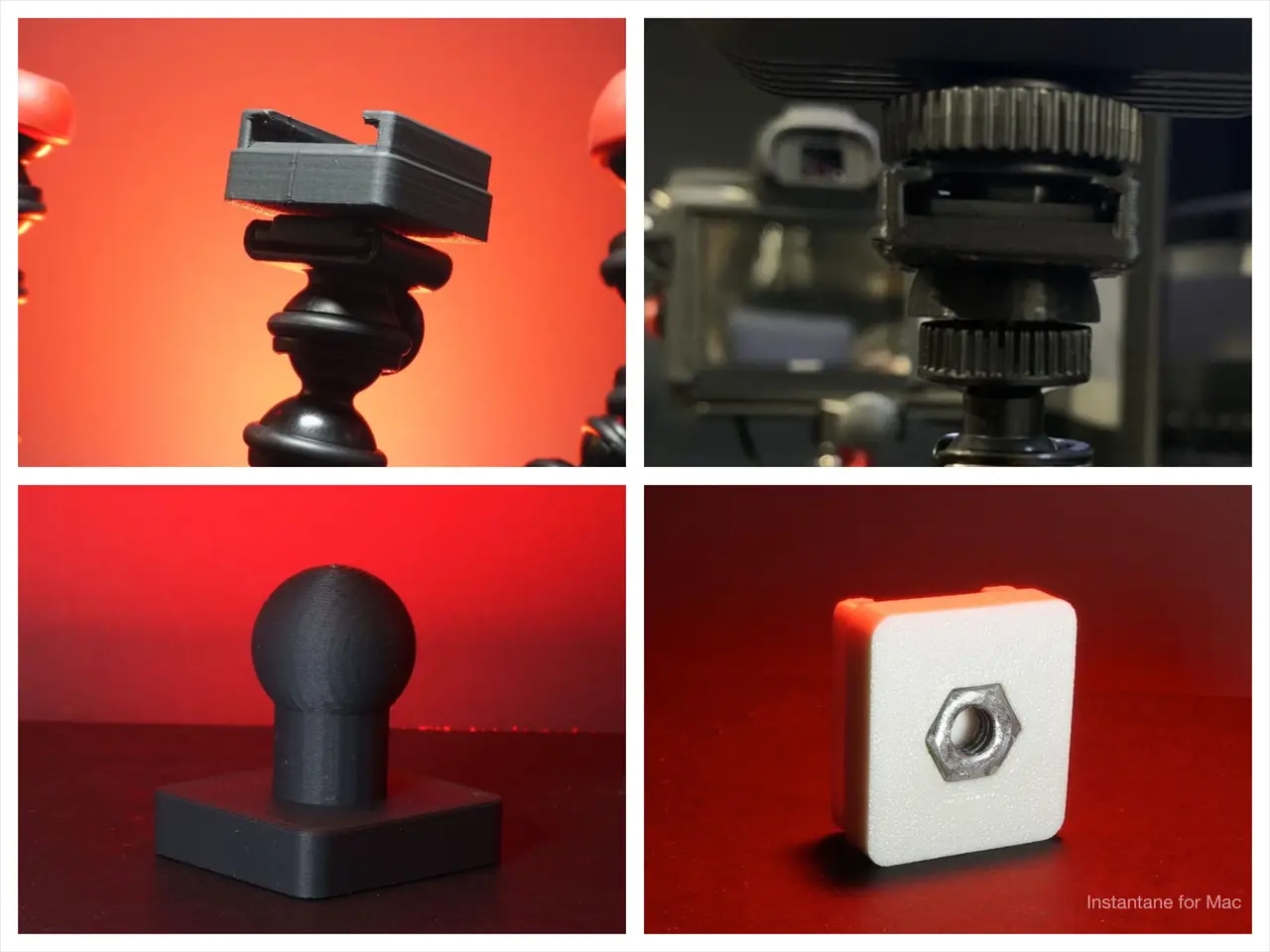

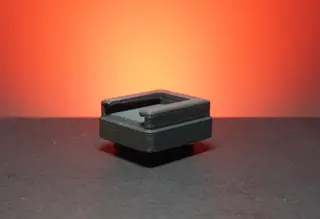

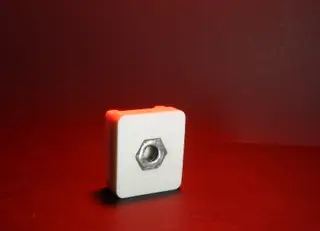

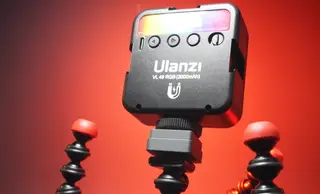

I needed a simple cold shoe mount for off camera lighting that had a ¼ 20 thread for attachment to tripod. Also including a base plate without the cold shoe so you can model your own accessory mounts. Models: - Cold_Shoe_Screw_Mount.stl - Full Cold Shoe w/Threaded Mount - Cold_Shoe_Screw_INSERT_Mount.stl - Full Cold Shoe w/1/4 20 Nut Insert - Cold_Shoe-Ball_Screw_INSERT_Mount.stl - Cold Shoe with tampered bottom and 1/4 20 Nut Insert - Ram-Ball_Screw-Mount.stl
My Print Settings: - 0.16mm or 0.20mm Layer height - 4 perimeters - 50% infill or your own preference - Supports = YES
Descripción original del autor, publicada en Printables.
