Tripod Head Cheese Plate for Camera Rig Accessories

Tripod Head Cheese Plate for Camera Rig Accessories

Add a 100 mm accessory grid directly beneath a tripod head for cleaner camera cables, adapters and small rig components.

Need a custom part for your setup? I design print-ready models from photos, sketches and measurements. Request a custom design (https://roqd.one/ith)

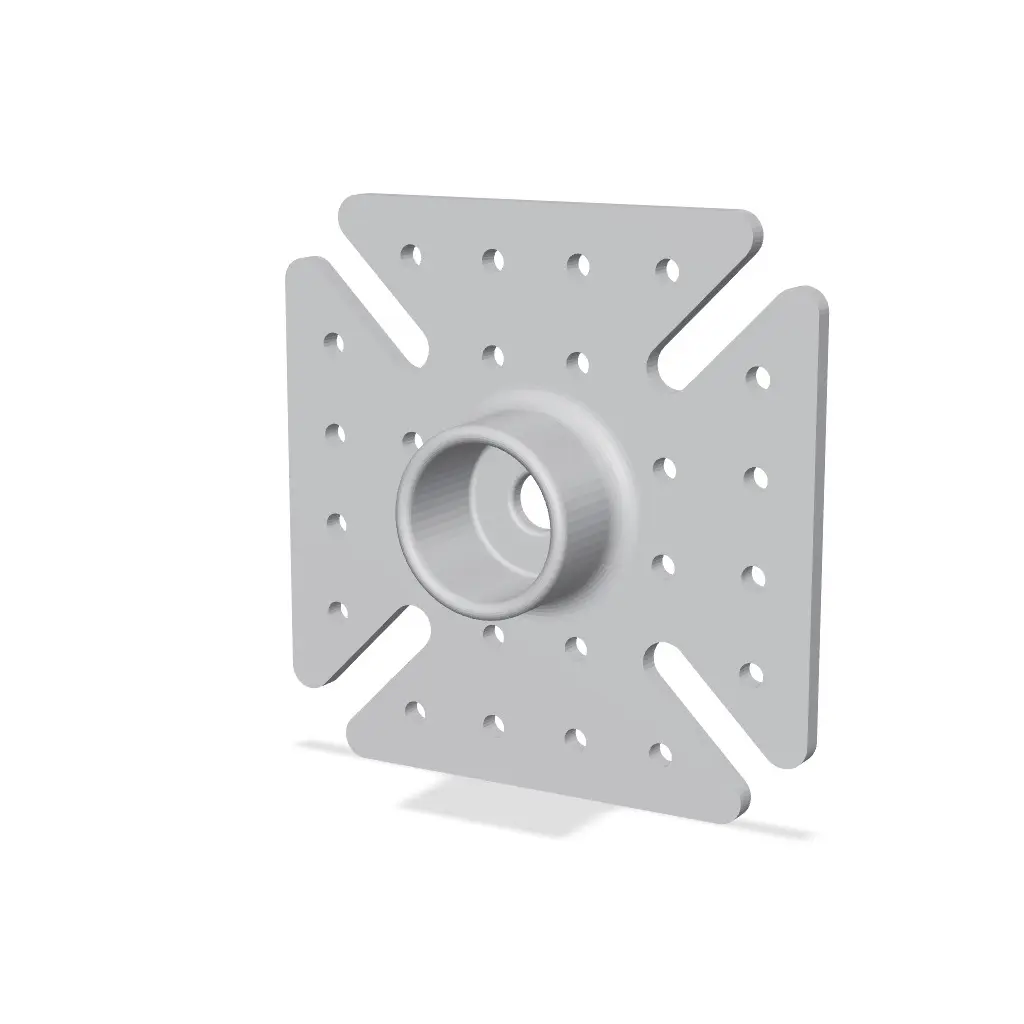

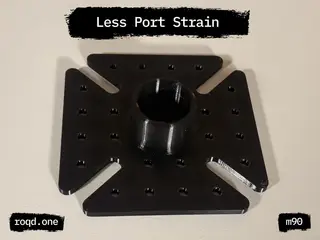

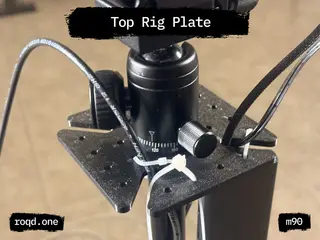

My Blackmagic Micro Studio Camera 4K G2 setup had several cables and adapters hanging around the tripod head. Besides looking untidy, a hard pull on a cable could transfer force directly to a camera connector. I designed this plate to sit over the tripod column beneath the head, creating a compact mounting grid for inserts, screws or zip ties without changing the normal head connection.

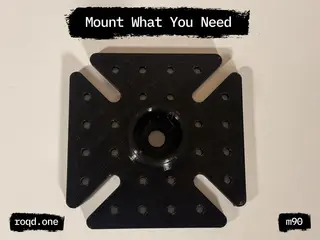

Key details - Plate size: 100 x 100 x 22 mm - Center stud pass-through: 10 mm diameter - Central sleeve outside diameter: 32 mm - Tripod column bore: 26 mm diameter - Accessory holes: 4.2 mm diameter - Accessory grid can accept M3 heat-set inserts, zip ties or suitable screws

Files included - Tripod-head cheese plate model

Important

Measure the tripod column and head-stud clearance before printing. This version is designed around a 26 mm column interface and a 10 mm pass-through. The printed plate is for accessories and cable management, not for carrying the camera independently.
